MANN-FILTER Fuel filter WK 5025
Complete in-line fuel filter for common-rail diesels
- Art. no.
- WK 5025
- EAN
- 4011558336615
- 246mm
- 55mm
SKU MF-WK5025 · EAN 4011558336615
Volume price
from 10 pcs · €23.41from 25 pcs · €22.41From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 27 · Next day
- Oslo Alnabru0
- Bergen Kokstad40
- Trondheim Tiller10
- Stockholm Västberga35
- Gothenburg Hisings Backa17
- Rotterdam Waalhaven39

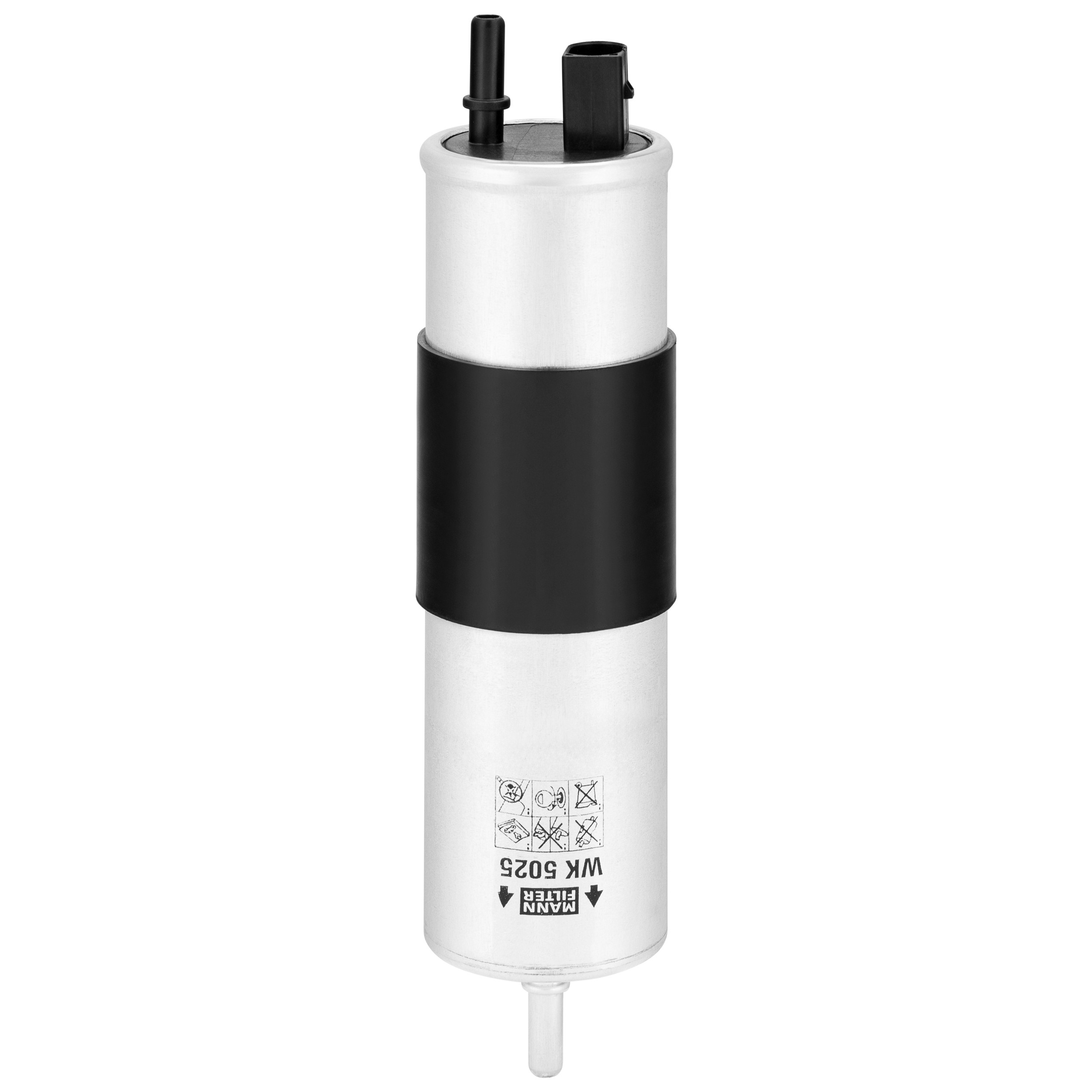

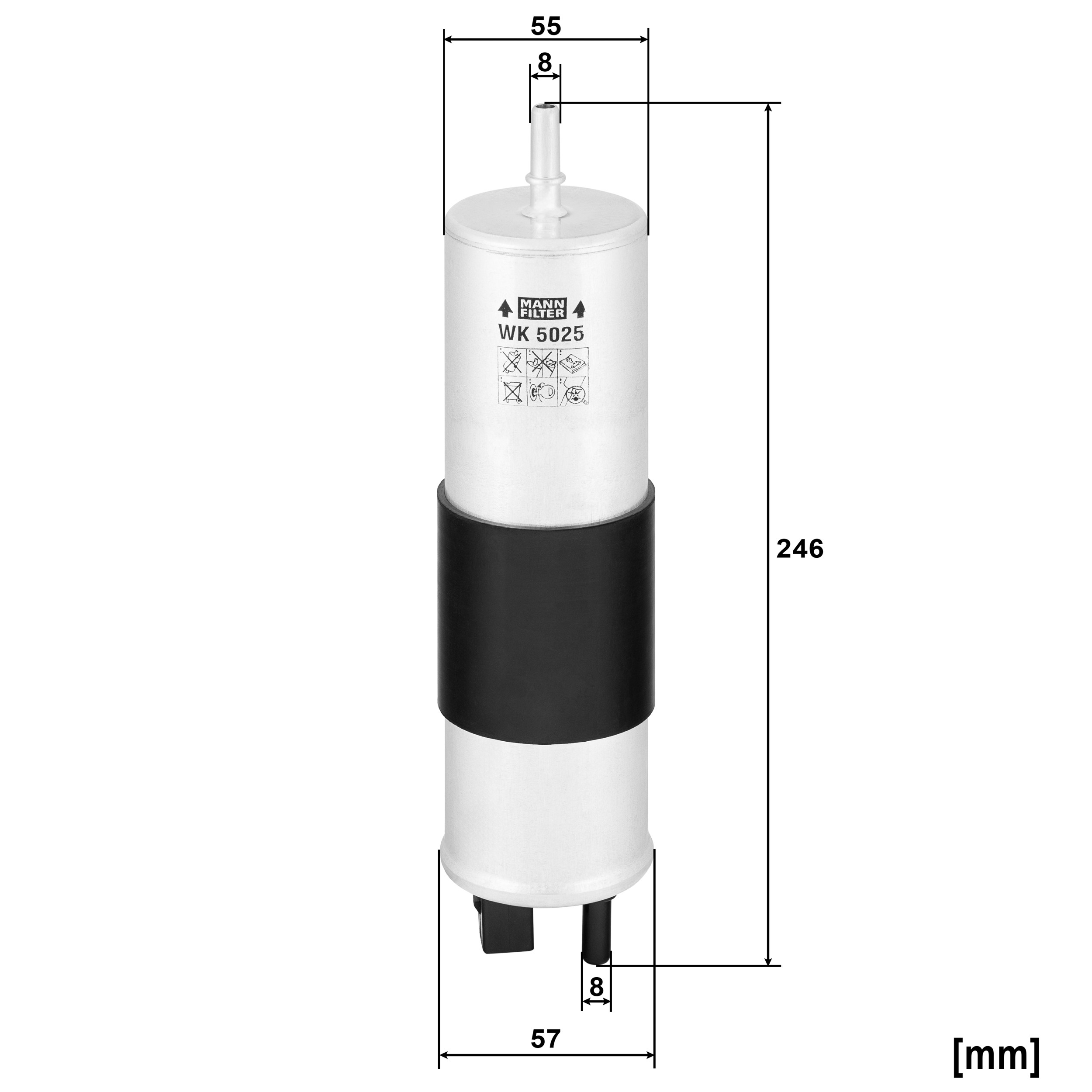

Complete in-line fuel filter WK 5025 for the Volvo V60 D4 and Volvo XC60 D4. The housing is 55 mm across and 246 mm tall and is replaced as one unit.
Fits
Vehicles this part is listed for, with position and conditions.
2 vehicles
- Volvo V60 II (225)2.0 D4204T14 190 hpD4204T14140 kW1402018–2021
- Volvo XC60 II (246)2.0 D4204T14 190 hpD4204T14140 kW1402017–2021
Specifications
Filter
- Design
- In-line
- Height
- 246mm
- Outer diameter
- 55mm
- Anti-drain valve
- — No
- Water separator
- ✓ Yes
- Seal included
- — No
- Metal-free (incinerable)
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Volvo | 31355461 |
| Volvo | 31432250 |
| Volvo | 31669471 |
| Volvo | 31669472 |
| Volvo | 31478692 |
| Volvo | 32312226 |
| Volvo | 31432807 |
| Volvo | 32312225 |
Why this one
01
One-piece swap
Housing and media change as one unit, no loose parts.
02
Water separation
Separates water from diesel to protect the injection system.
03
OE connections
Line connections match the original fuel lines.
On the job
Complete filter unit
The WK 5025 is replaced as a whole: housing and media in one piece, so there is no element to swap or housing to clean. Very fine media protects the high-pressure pump and injectors, and water is separated from the diesel before it can cause corrosion in the injection system.
Service set
On a service the workshop usually replaces it together with the oil filter HU 8014 z, air filter C 29 021 and cabin filter CU 34 003 for the same car, so one order covers the filters. The fitment list shows exactly which versions it suits. Log the change in the service book and reset the service indicator.
