MANN-FILTER Fuel filter WK 820/17
Complete in-line fuel filter for common-rail diesels
- Art. no.
- WK 820/17
- EAN
- 4011558061616
- 100mm
- 86mm
SKU MF-WK82017 · EAN 4011558061616
Volume price
from 10 pcs · €23.41from 25 pcs · €22.41From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 165 · Next day
- Oslo Alnabru30
- Bergen Kokstad29
- Trondheim Tiller40
- Stockholm Västberga23
- Gothenburg Hisings Backa28
- Rotterdam Waalhaven37

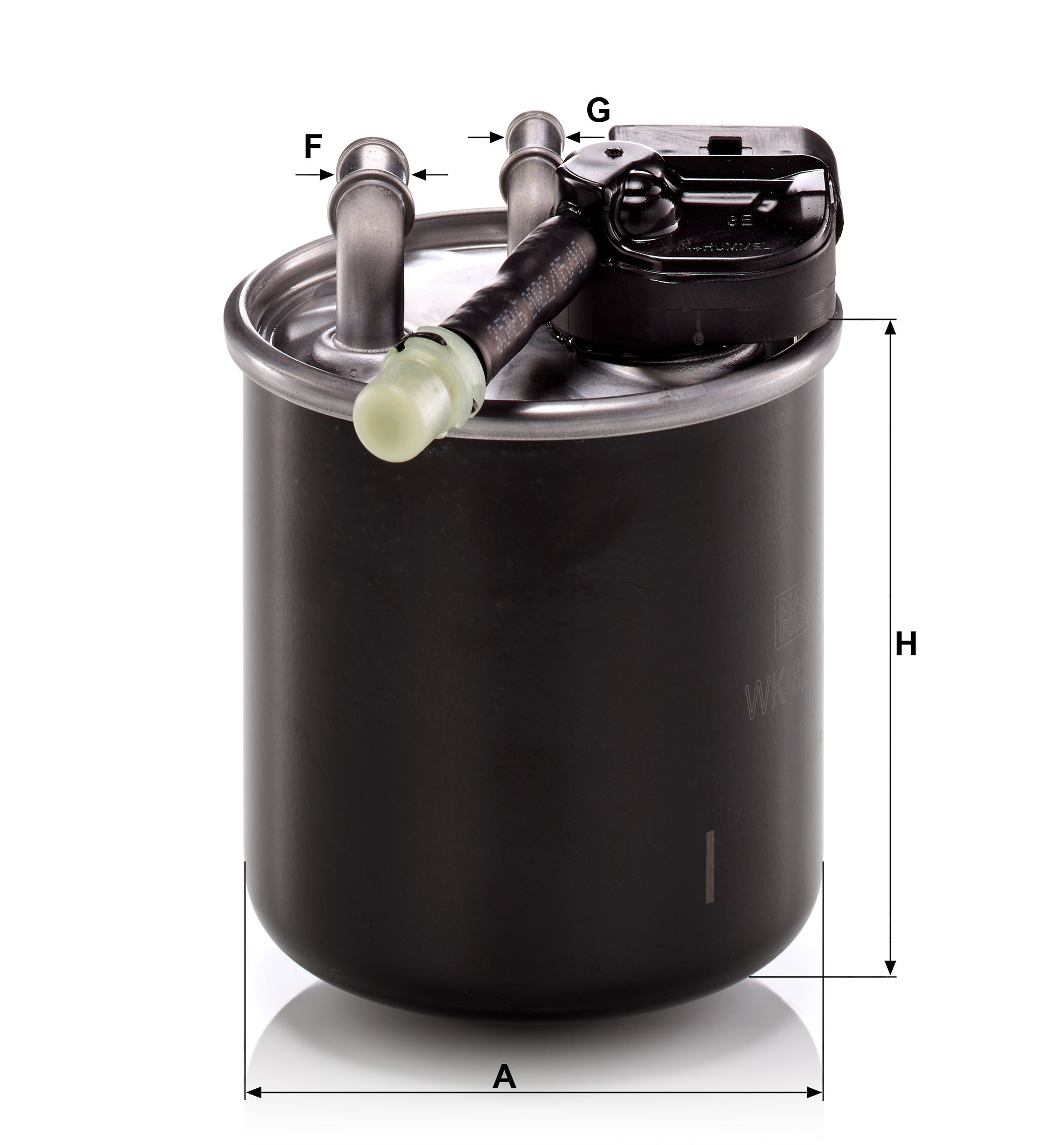

Complete in-line fuel filter WK 820/17 for the Mercedes C-Class C 220 d and Mercedes Sprinter 316 CDI. The housing is 86 mm across and 100 mm tall and is replaced as one unit.
Specifications
Filter
- Design
- In-line
- Height
- 100mm
- Outer diameter
- 86mm
- Anti-drain valve
- — No
- Water separator
- ✓ Yes
- Seal included
- — No
- Metal-free (incinerable)
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Mercedes-Benz | 651 090 16 52 |
| Mercedes-Benz | 651 090 28 52 |
| Mercedes-Benz | A 651 090 16 52 |
| Mercedes-Benz | A 651 090 28 52 |
Why this one
01
One-piece swap
Housing and media change as one unit, no loose parts.
02
Water separation
Separates water from diesel to protect the injection system.
03
OE connections
Line connections match the original fuel lines.
On the job
Complete filter unit
The WK 820/17 is replaced as a whole: housing and media in one piece, so there is no element to swap or housing to clean. Very fine media protects the high-pressure pump and injectors, and water is separated from the diesel before it can cause corrosion in the injection system.
Service set
On a service the workshop usually replaces it together with the oil filter HU 7010 z, air filter C 22 028 and cabin filter CU 30 012 for the same car, so one order covers the filters. The fitment list shows exactly which versions it suits. Log the change in the service book and reset the service indicator.
