Brembo Brake pad set P 85 153
Front pad set for the Audi A4 B9 2.0 TDI
- Art. no.
- P 85 153
- EAN
- 8020584084434
- 155mm
- 17mm
- Electric sensor included
SKU BRE-P85153 · EAN 8020584084434
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 109 · Next day
- Oslo Alnabru9
- Bergen Kokstad26
- Trondheim Tiller10
- Stockholm Västberga10
- Gothenburg Hisings Backa32
- Rotterdam Waalhaven21

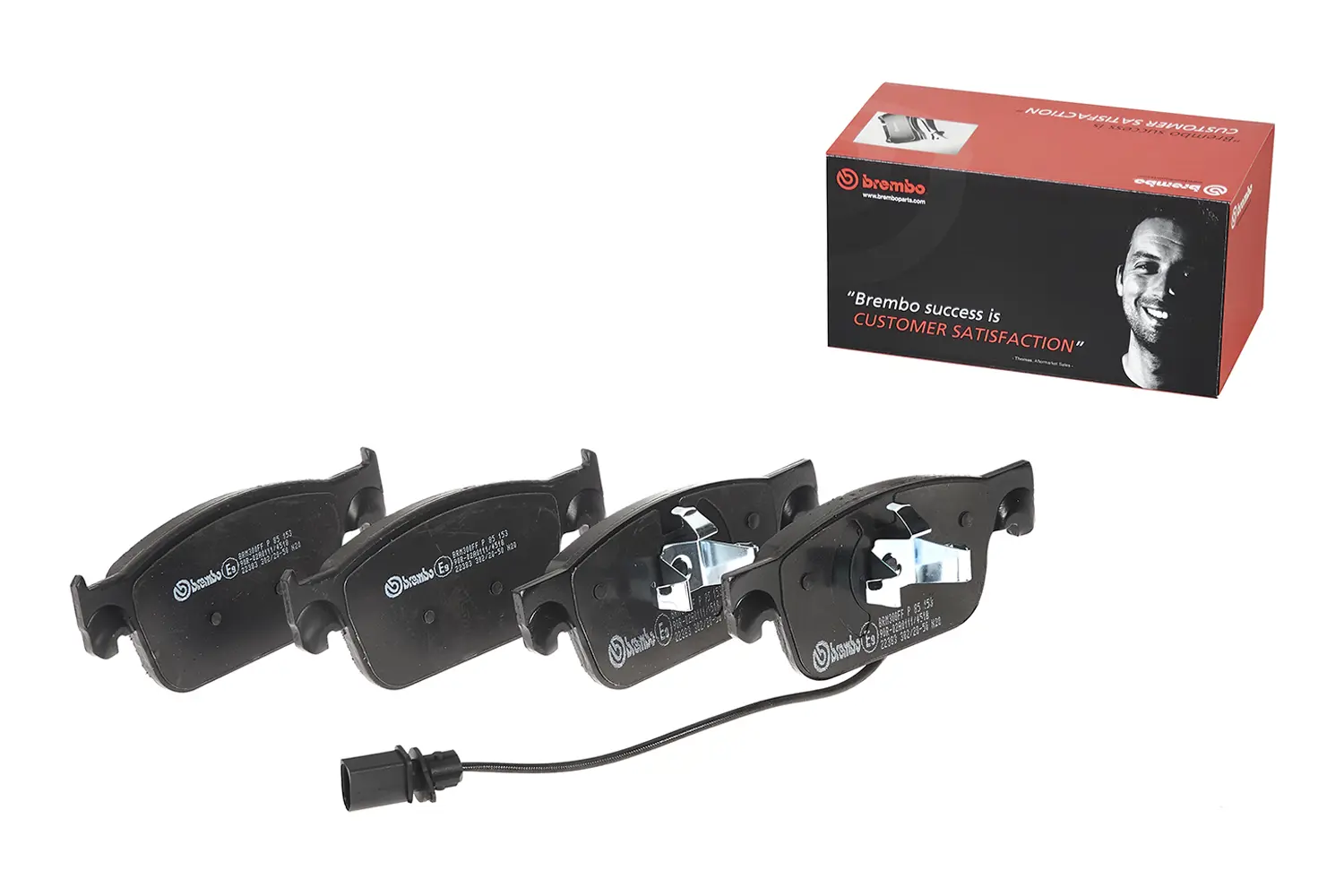

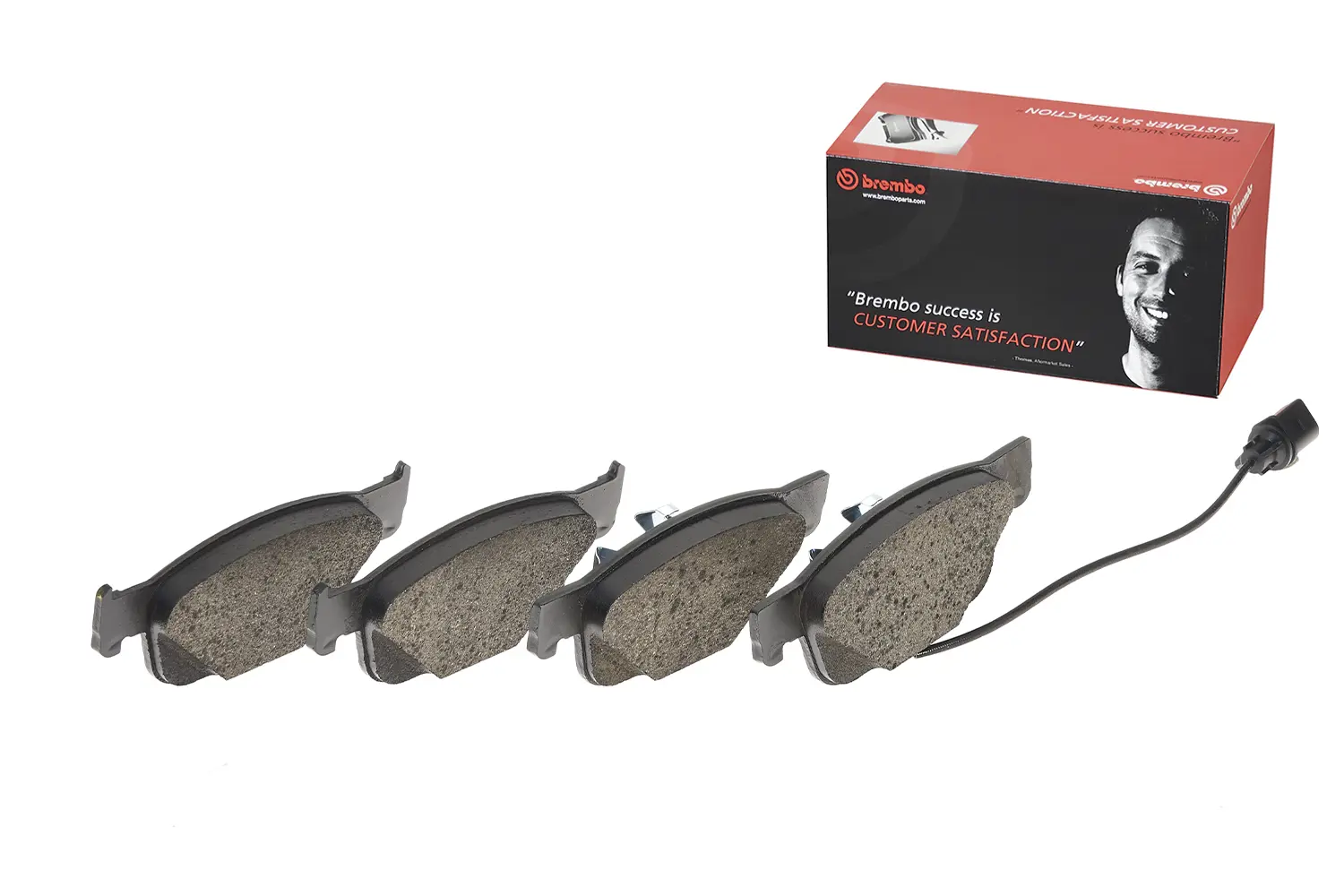

Brembo Prime front pad set for the Audi A4 B9 2.0 TDI, 155 x 64 x 17 mm for the Teves caliper. It is supplied with an electric wear sensor fitted, and the box holds anti-squeal shims and a piston clip. The pads are directional, so mind the left and right marking.
Fits
Vehicles this part is listed for, with position and conditions.
1 vehicle
- Audi A4 B9 (8W)2.0 DETA 190 hpDETA140 kW1402015–2018Front axleFor PR code 1LA or 1LB. Goes with the 314 mm disc. Other front brake PR codes take P 85 165 or P 85 164.

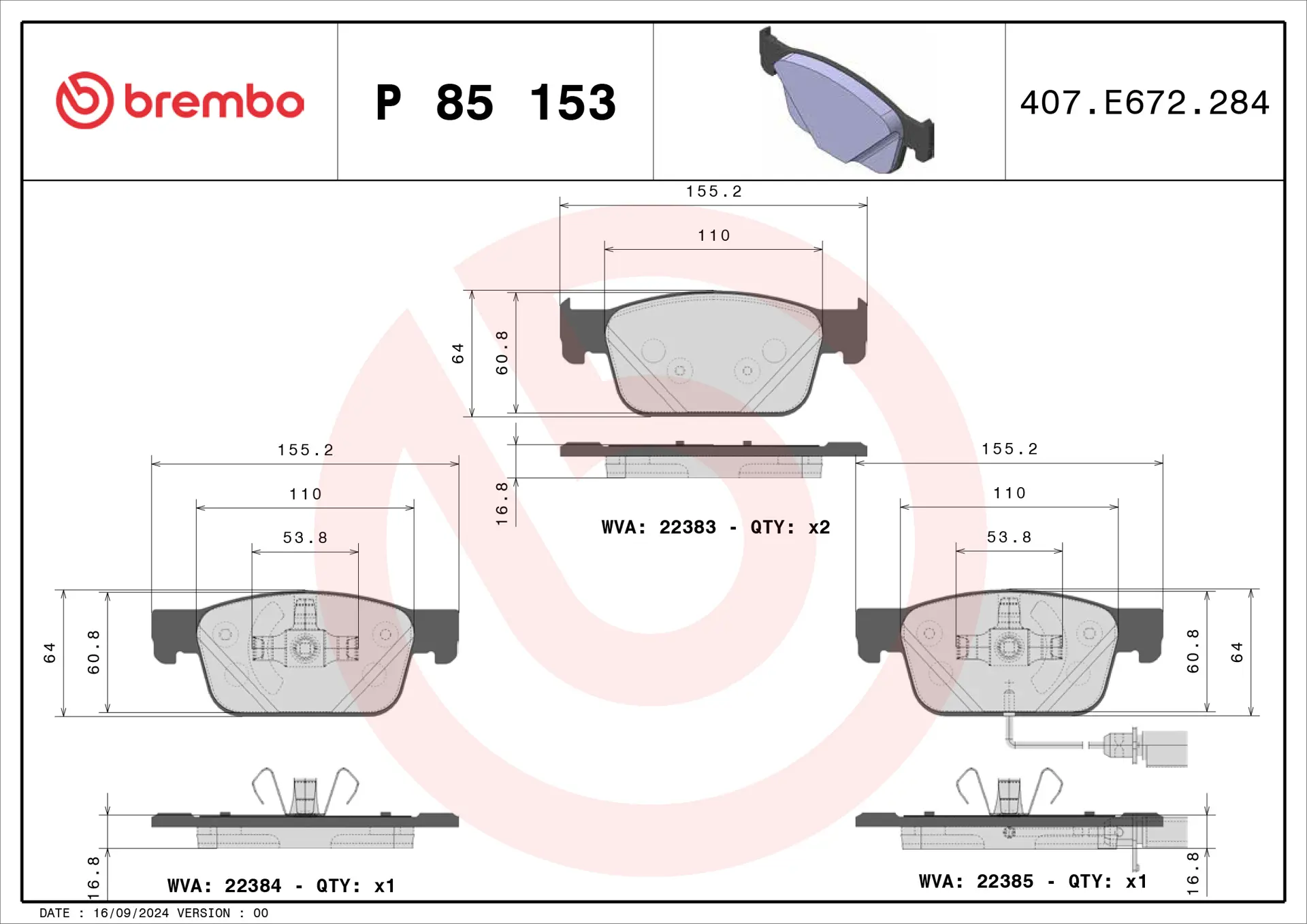

Specifications
Brake pads
- Width
- 155mm
- Height
- 64mm
- Thickness
- 17mm
- Wear indicator
- Electric sensor included
- WVA number
- 22385, 22383, 22384
- FMSI number
- D1953 9180
- Fitting kit included
- — No
- Chamfered / slotted
- — No
- Anti-squeal shims
- ✓ Yes
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Audi/Skoda/VW | 8W0698151AA |
| Audi/Skoda/VW | 8W0698151AB |
| Audi | 8W0698151AF |
| Audi/Skoda/VW | 8W0698151AG |
| Audi/Skoda/VW | 8W0698151BG |
| Audi | 8W0698151BH |
| Audi/Skoda/VW | 8W0698151J |
| Audi/Skoda/VW | 8W0698151K |
| Audi/Skoda/VW | 8W0698151Q |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 13046073142 |
| Bosch | 0986424433 |
| febi bilstein | 16962 |
| Ferodo | FDB4871 |
| Hella Pagid | 355024951 |
| Jurid | 573675J |
| Meyle | 0252238317 |
| Mintex | MDB3871 |
| Pagid | T2549 |
| ATE | 607314 |
Why this one
01
155x64x17 mm
Fits the Teves caliper, WVA 22385.
02
Wear indicator
With an electric wear sensor fitted.
03
Hardware included
Anti-squeal shims and a piston clip in the box.
04
ECE R90 approved
Prime friction material matched to the original pad for bite and wear.
On the job
The job it does
A complete front axle set for the Audi A4 B9 2.0 TDI. The pads measure 155 x 64 mm and are 17 mm thick, made to fit the Teves caliper, and the friction material is ECE R90 approved and matched to the original for bite and wear. The box includes anti-squeal shims and a piston clip, so worn hardware does not go back on.
Fitting it
Measure the discs while the wheels are off; if they are near the minimum thickness, replace them with the pads. The wear sensor is already fitted to the pad, so there is no separate sensor to order. These are directional pads: follow the left/right marking. Clean and grease the caliper guides, push the piston back gently and bed the pads in with a few moderate stops.
