MANN-FILTER Cabin filter CU 22 032

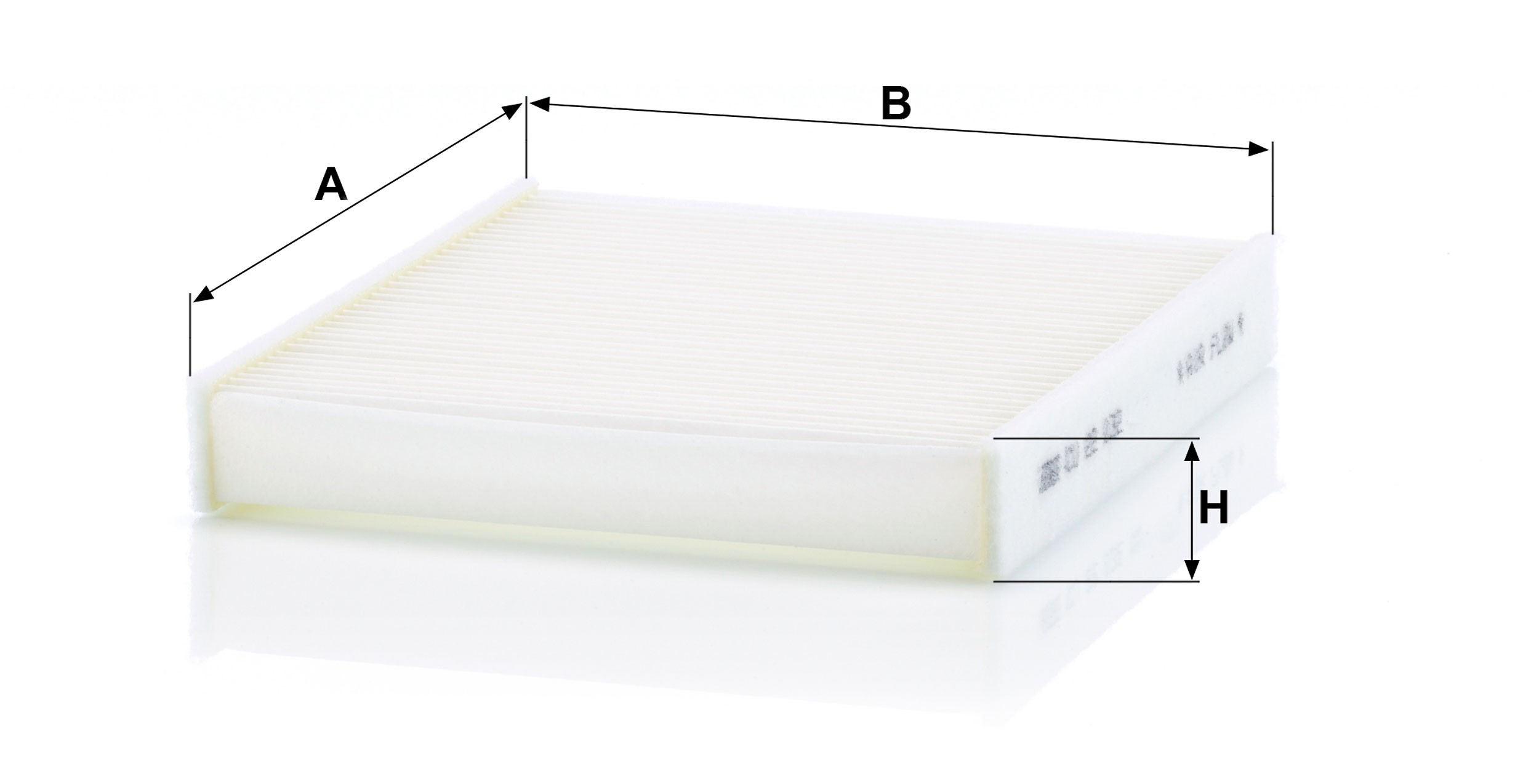

Particle cabin filter, 216 x 186 x 30 mm
- Art. no.
- CU 22 032
- EAN
- 4011558073206
- Particle filter
- 30mm
SKU MF-CU22032 · EAN 4011558073206
Volume price
from 10 pcs · €14.95from 25 pcs · €14.31From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 49 · Next day
- Oslo Alnabru0
- Bergen Kokstad23
- Trondheim Tiller8
- Stockholm Västberga30
- Gothenburg Hisings Backa0
- Rotterdam Waalhaven20
Particle cabin filter CU 22 032 for the Toyota Corolla 1.8 Hybrid, Toyota Hilux 2.4 D, Toyota RAV4 2.5 Hybrid and Toyota Yaris 1.5 Hybrid, 216 x 186 x 30 mm. The standard choice at every service: it stops pollen, road dust and soot.
Fits
Vehicles this part is listed for, with position and conditions.
4 vehicles
- Toyota Corolla E211.8 2ZR-FXE 98 hp2ZR-FXE72 kW722019–2024
- Toyota Hilux VIII (AN120)2.4 2GD-FTV 150 hp2GD-FTV110 kW1102015–2024
- Toyota RAV4 V (XA50)2.5 A25A-FXS 178 hpA25A-FXS131 kW1312018–2024
- Toyota Yaris IV (XP21)1.5 M15A-FXE 92 hpM15A-FXE68 kW682020–2024
Specifications
Filter
- Design
- Panel
- Filter media
- Particle filter
- Height
- 30mm
- Length
- 216mm
- Width
- 186mm
- Anti-drain valve
- — No
- Water separator
- — No
- Seal included
- — No
- Metal-free (incinerable)
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Toyota | 87139-0K090 |
| Toyota | 87139-0K070 |
| Toyota | 87139-F4020 |
| Toyota | 87139-YZZ33 |
| Toyota | 87139-28020 |
Why this one
01
Particle media
Stops pollen, road dust and soot from entering the cabin.
02
High airflow
Keeps the fan output up for quick window demisting.
03
OE size
Built to the original filter slot, 216 x 186 x 30 mm.
On the job
What it does
The CU 22 032 filters the air coming into the cabin through the heating and ventilation system. Its particle media stops pollen, road dust and soot while leaving enough airflow for fast demisting. It is the standard replacement for the original filter and the right choice for most customers.
Service set
On a service the workshop usually replaces it together with the oil filter W 6031 and air filter C 17 008 for the same car, so one order covers the filters. The fitment list shows exactly which versions it suits. Log the change in the service book and reset the service indicator.
