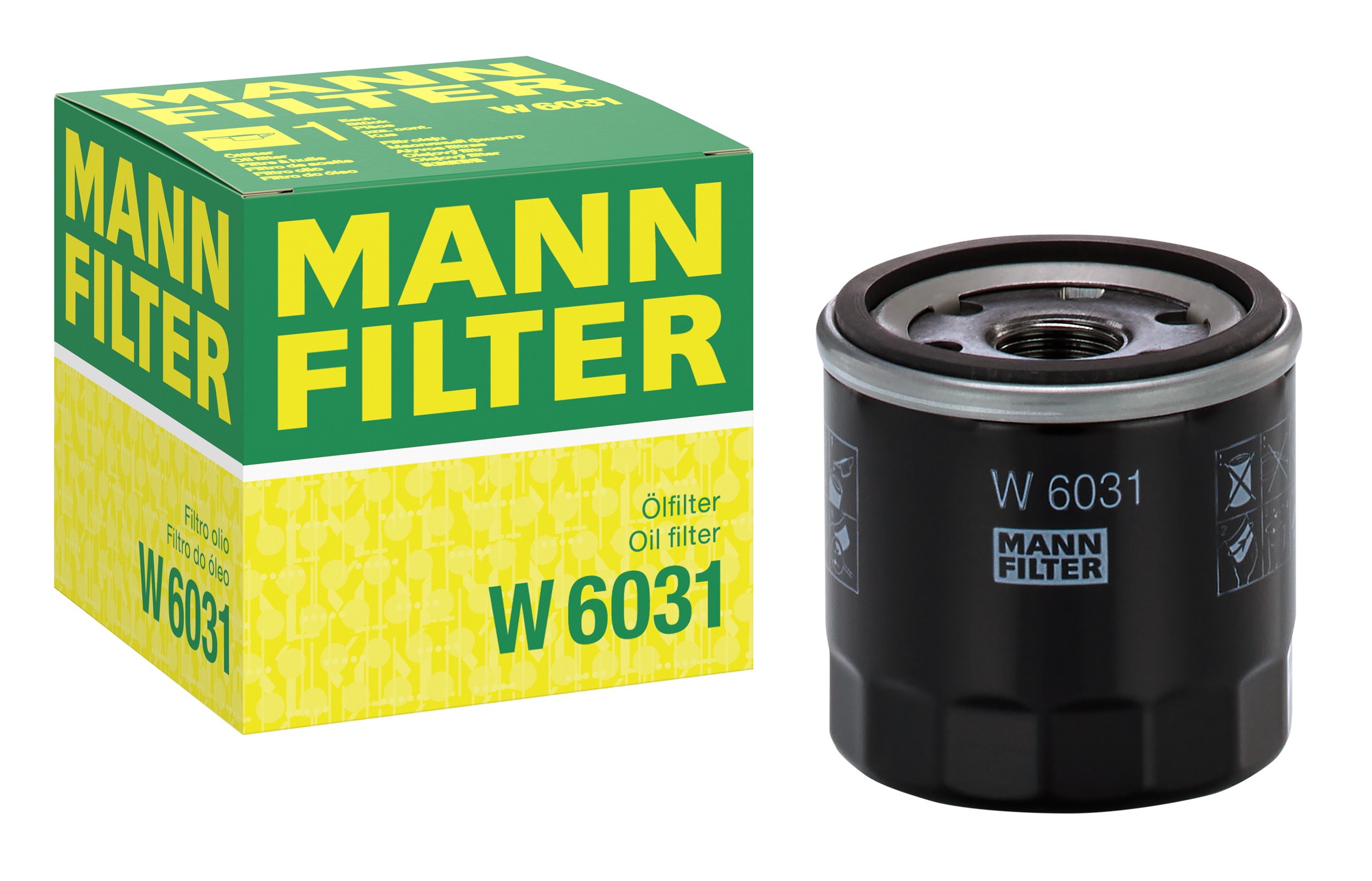

MANN-FILTER Oil filter W 6031
Spin-on oil filter, 3/4-16UNF thread, 65 mm tall
- Art. no.
- W 6031
- EAN
- 4011558823757
- 65mm
- 66mm
- 3/4-16UNF
SKU MF-W6031 · EAN 4011558823757
Volume price
from 10 pcs · €9.31from 25 pcs · €8.91From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 125 · Next day
- Oslo Alnabru28
- Bergen Kokstad24
- Trondheim Tiller32
- Stockholm Västberga0
- Gothenburg Hisings Backa11
- Rotterdam Waalhaven29
Spin-on oil filter W 6031 for the Toyota Corolla 1.8 Hybrid, Toyota RAV4 2.5 Hybrid and Toyota Yaris 1.5 Hybrid. The canister is 66 mm across and 65 mm tall, with a 3/4-16UNF thread and the sealing ring already fitted.
Fits
Vehicles this part is listed for, with position and conditions.
3 vehicles
- Toyota Corolla E211.8 2ZR-FXE 98 hp2ZR-FXE72 kW722019–2024From March 2023.
- Toyota RAV4 V (XA50)2.5 A25A-FXS 178 hpA25A-FXS131 kW1312018–2024
- Toyota Yaris IV (XP21)1.5 M15A-FXE 92 hpM15A-FXE68 kW682020–2024

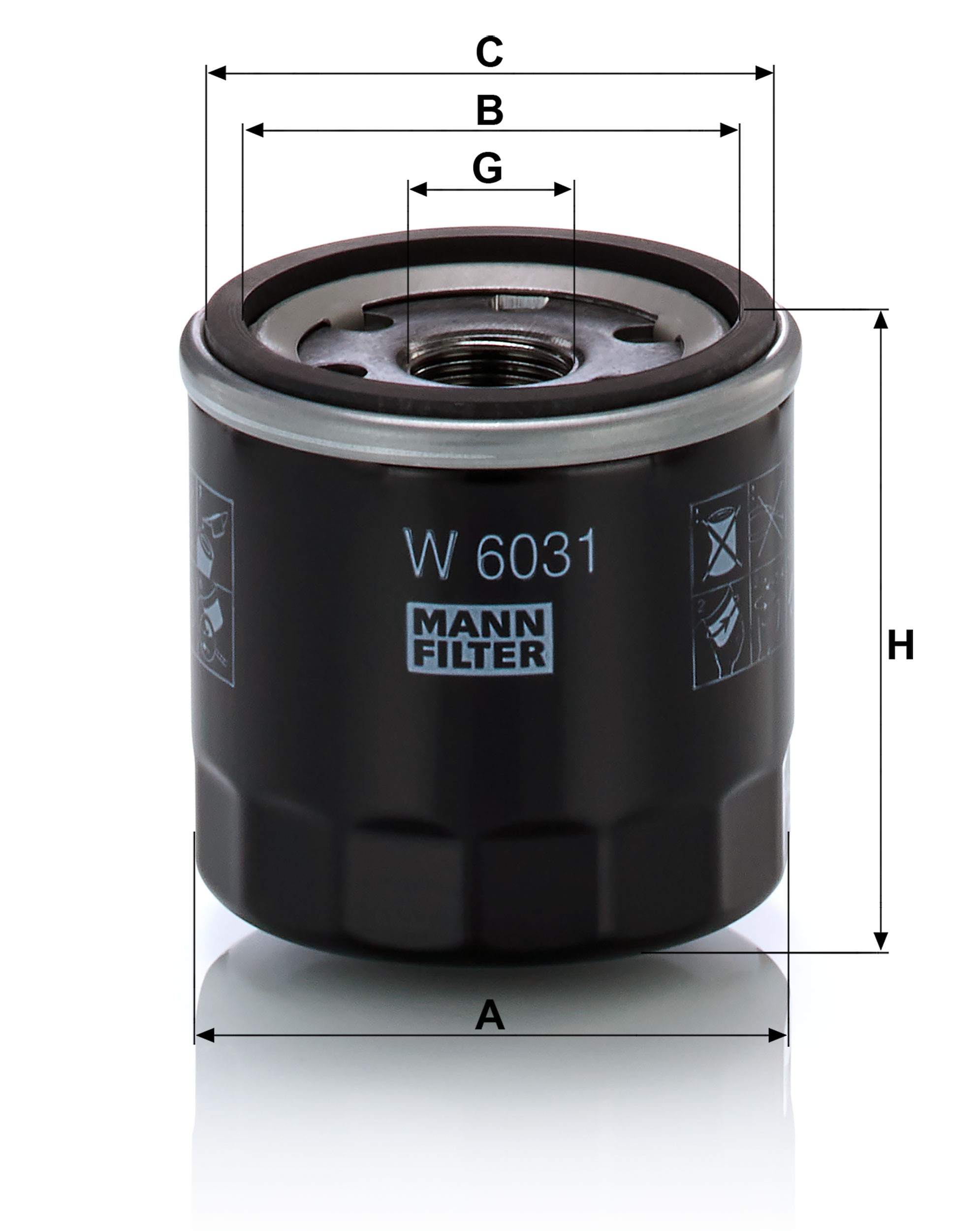

Specifications
Filter
- Design
- Spin-on
- Height
- 65mm
- Outer diameter
- 66mm
- Thread
- 3/4-16UNF
- Gasket outer diameter
- 62mm
- Anti-drain valve
- ✓ Yes
- Water separator
- — No
- Seal included
- — No
- Metal-free (incinerable)
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Toyota | 90915-10009 |
Why this one
01
Direct fit thread
3/4-16UNF thread and 62 mm gasket match the OE filter head.
02
Anti-drain valve
Holds oil in the filter at standstill for quick pressure at start-up.
03
Bypass valve
Keeps oil flowing to the bearings on cold starts and with a loaded element.
On the job
Screw-on canister
The W 6031 is a complete spin-on canister: unscrew the old one, oil the new sealing ring and tighten it by hand. The 3/4-16UNF thread and 62 mm gasket match the engine's filter head, and the canister carries a non-return valve that keeps oil in the filter when the engine stops, so pressure builds fast on the next start.
Service set
On a service the workshop usually replaces it together with the air filter C 17 008 and cabin filter CU 22 032 for the same car, so one order covers the filters. Check the fitment notes before ordering, since the right part depends on the vehicle's equipment or build date. Log the change in the service book and reset the service indicator.
