MANN-FILTER Fuel filter WK 8060 z
Complete screw-on fuel filter for common-rail diesels
- Art. no.
- WK 8060 z
- EAN
- 4011558097813
- 139mm
- 82mm
- M16x1.5 (outlet), M10 (inlet)
SKU MF-WK8060Z · EAN 4011558097813
Volume price
from 10 pcs · €23.41from 25 pcs · €22.41From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 135 · Next day
- Oslo Alnabru10
- Bergen Kokstad33
- Trondheim Tiller36
- Stockholm Västberga31
- Gothenburg Hisings Backa0
- Rotterdam Waalhaven26

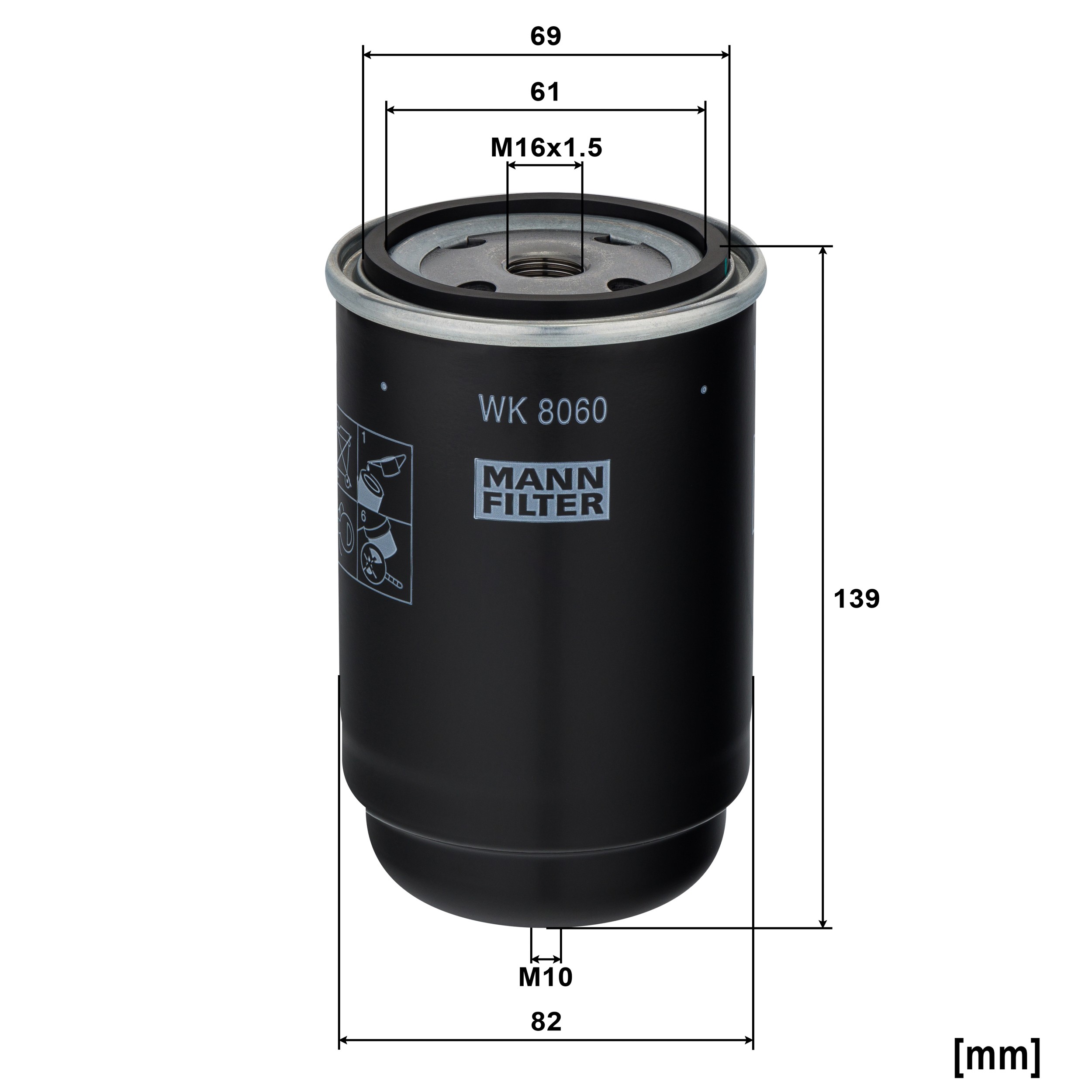

Specifications
Filter
- Design
- Spin-on
- Height
- 139mm
- Outer diameter
- 82mm
- Thread
- M16x1.5 (outlet), M10 (inlet)
- Gasket outer diameter
- 69mm
- Anti-drain valve
- — No
- Water separator
- ✓ Yes
- Seal included
- ✓ Yes
- Metal-free (incinerable)
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Hyundai | 31922-1K800 |
Why this one
01
One-piece swap
Housing and media change as one unit, no loose parts.
02
Water separation
Separates water from diesel to protect the injection system.
03
Direct fit
69 mm gasket and threads match the original filter head.
On the job

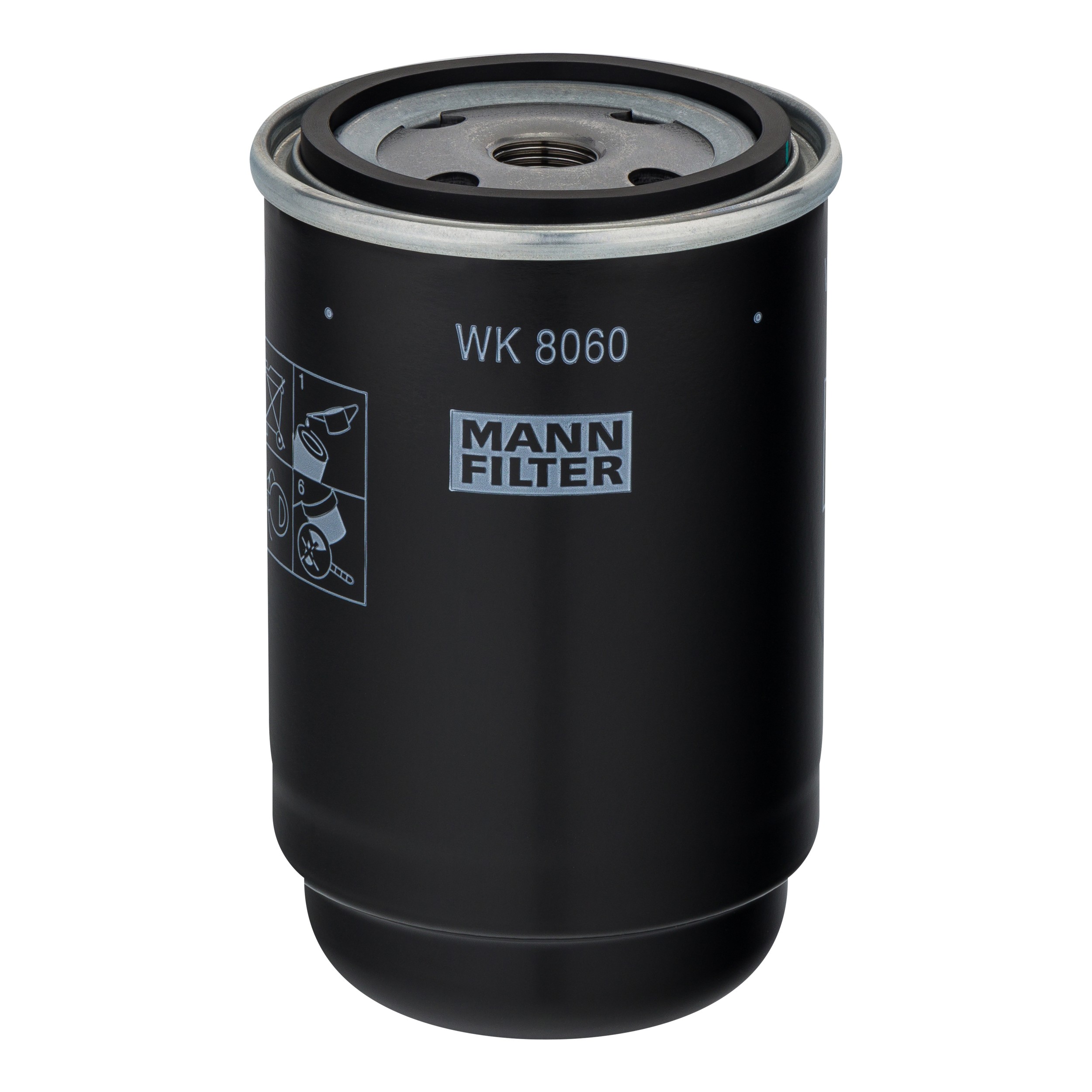

Complete filter unit
The WK 8060 z is replaced as a whole: housing and media in one piece, so there is no element to swap or housing to clean. Very fine media protects the high-pressure pump and injectors, and water is separated from the diesel before it can cause corrosion in the injection system.
Service set
On a service the workshop usually replaces it together with the oil filter HU 7048 z, air filter C 28 040 and cabin filter CU 24 024 for the same car, so one order covers the filters. The fitment list shows exactly which versions it suits. Log the change in the service book and reset the service indicator.
