SKF Wheel bearing kit VKBA 3644
Rear hub bearing kit for the VW Passat B8 and two more models
- Art. no.
- VKBA 3644
- 69mm
SKU SKF-VKBA3644
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 47 · Next day
- Oslo Alnabru0
- Bergen Kokstad9
- Trondheim Tiller0
- Stockholm Västberga9
- Gothenburg Hisings Backa7
- Rotterdam Waalhaven6
Specifications
Wheel bearing
- Inner diameter
- 32mm
- Width
- 69mm
- ABS encoder (magnetic)
- ✓ Yes
- Number of holes
- 5
- Wheel hub included
- — No
- Axle nut included
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| VW | 1T0 598 611 |
| VW | 1T0 598 611 B |
| VW | 3G0 598 611 |
| Audi | 5QF 598 611 |
| VW | 3G0 598 611 A |
| Audi | 5WA 501 611 E |
| Audi | 5WF 501 611 |
| Audi | 5WF 501 611 A |
| Audi | 8S0 598 611 |
| VW | L 1TD 501 611 |
Kit contents

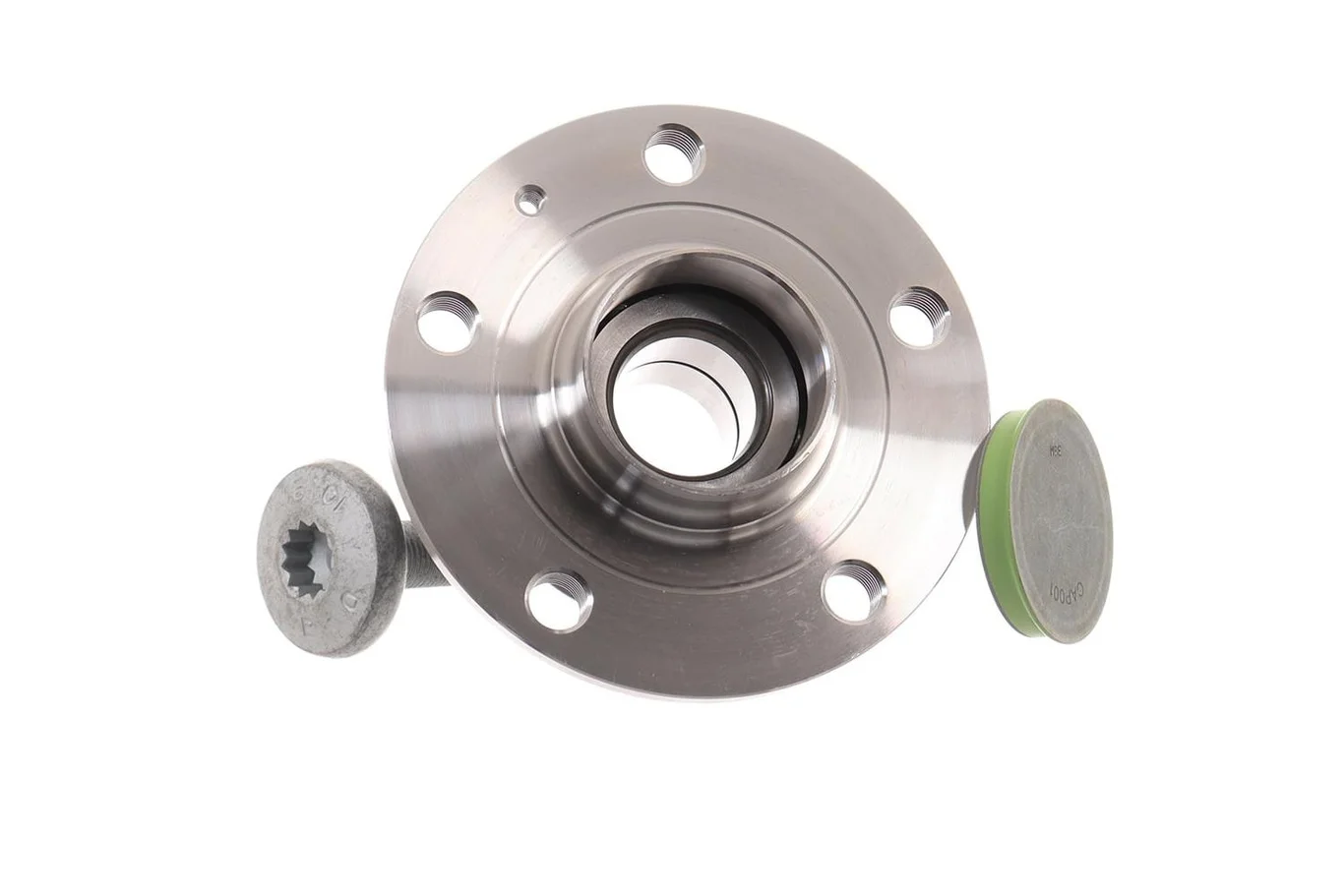

- 1×Bearing
- 1×Fastener set
Why this one
01
Complete repair kit
Comes with a fastener set; nothing used goes back on.
02

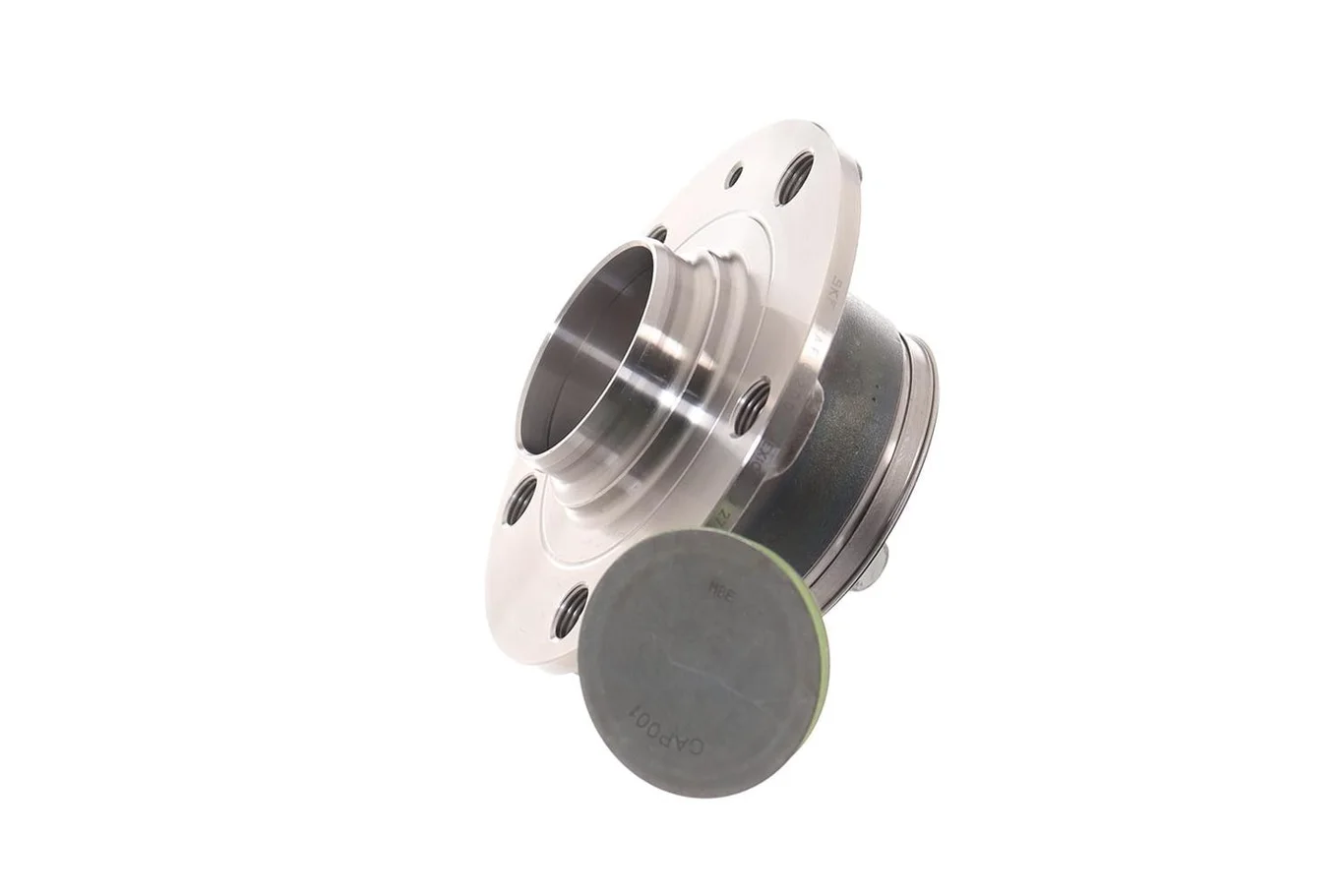

Pre-set hub unit
Flange and bearing in one sealed unit, with no end-play to set.
03
ABS encoder in seal
Magnetic ring in the seal feeds the wheel-speed sensor; no separate tone ring.
04
Key dimensions
32 mm bore, 69 mm wide, 136.9 mm flange, 5 wheel-bolt holes.
On the job
The job
VKBA 3644 replaces a worn rear wheel bearing on the VW Passat B8, VW Tiguan II and Skoda Octavia IV. It is a complete hub unit with the flange built in, pre-set and sealed at the factory, so there is no end-play to adjust and it bolts straight on. The magnetic ABS encoder sits in the seal: fit it the right way round and keep magnetic tools and metal swarf away from it.
In the box and alongside
The kit comes with a fastener set, so no used fasteners go back on. SKF recommends its special tool VKN 604 for the job. SKF lists two per axle, and with the wheel off it is the moment to check the brake discs, pads, the CV joint boot and the other side's bearing.
