Specifications
Wheel bearing
- Design
- Gen 1 — double-row bearing
- Inner diameter
- 43mm
- Outer diameter
- 80mm
- Width
- 40mm
- ABS encoder (magnetic)
- ✓ Yes
- Wheel hub included
- — No
- Axle nut included
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Mitsubishi | 3885A017 |
| Mitsubishi | 3885A040 |
| Mitsubishi | 40210W010P |
| Mitsubishi | MN101347 |

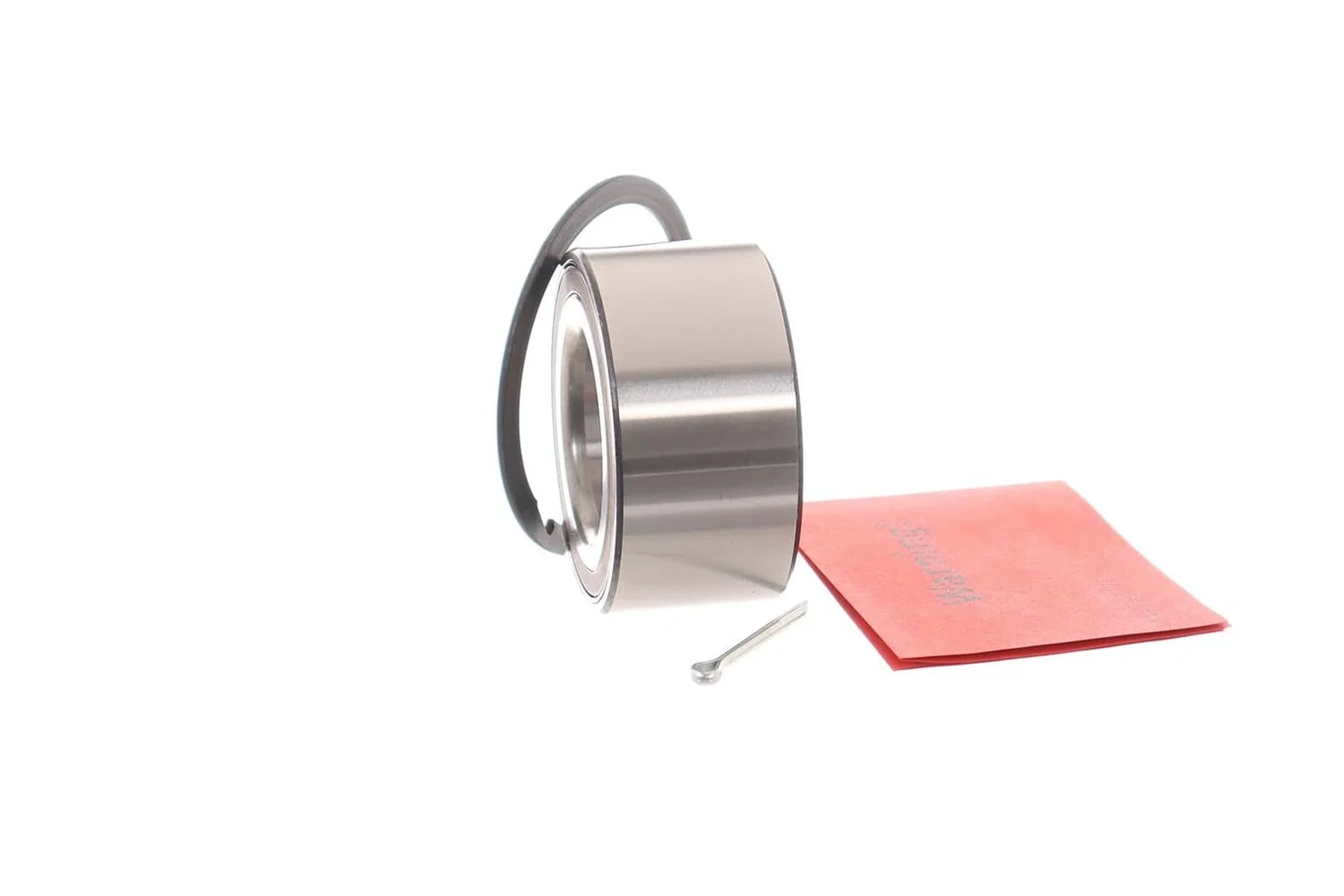

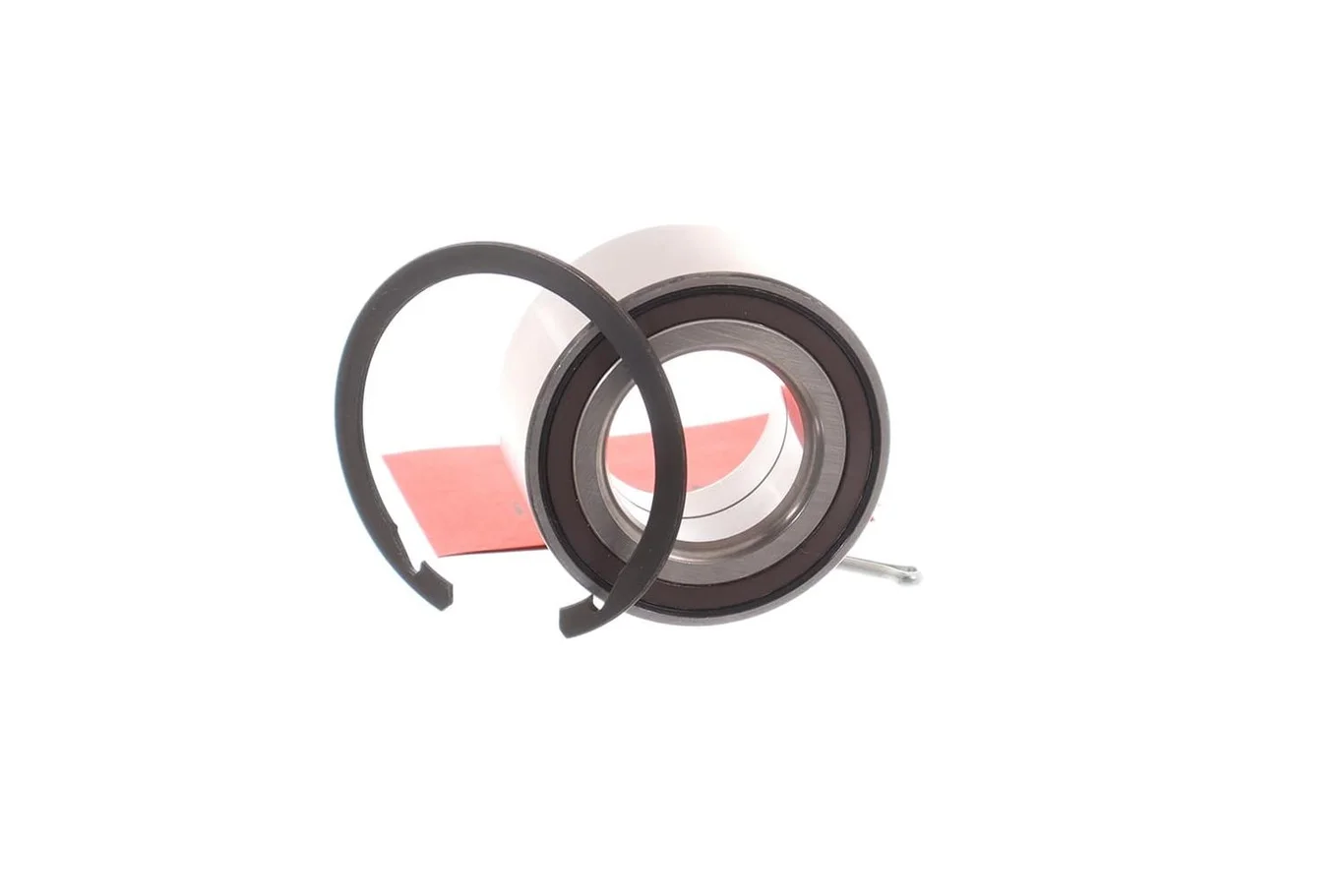

Kit contents
- 1×Circlip
- 1×Bearing
- 1×Service book
- 1×Split pin
Why this one
01
Complete repair kit
Comes with a circlip, a service booklet and a split pin; nothing used goes back on.
02
ABS encoder in seal
Magnetic ring in the seal feeds the wheel-speed sensor; no separate tone ring.
03
Key dimensions
43 mm bore, 80 mm outer diameter, 40 mm wide.
04
Matching SKF tool
SKF names VKN 604 as the special tool for fitting this kit.
On the job
The job
VKBA 7408 replaces a worn front wheel bearing on the Mitsubishi Outlander PHEV. It is a cartridge bearing that is pressed into place, so plan for a press and the right adapters before the job starts. The magnetic ABS encoder sits in the seal: fit it the right way round and keep magnetic tools and metal swarf away from it.
In the box and alongside
The kit comes with a circlip, a service booklet and a split pin, so no used fasteners go back on. SKF recommends its special tool VKN 604 for the job. SKF lists two per axle, and with the wheel off it is the moment to check the brake discs, pads, the CV joint boot and the other side's bearing.
