Specifications
Brake pads
- Width
- 99mm
- Height
- 56mm
- Thickness
- 17mm
- Wear indicator
- None
- WVA number
- 20510, 20552
- FMSI number
- D2136 9373
- Fitting kit included
- ✓ Yes
- Chamfered / slotted
- — No
- Anti-squeal shims
- ✓ Yes
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Volvo | 31471471 |
| Volvo | 314714710 |
| Volvo | 31687033 |
| Volvo | 316870330 |
| Volvo | 32276933 |
| Volvo | 322769330 |
| Volvo | 32276934 |
| Volvo | 322769340 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 13046055212 |
| Bosch | 0986424996 |
Why this one
01
99x56x17 mm
Complete set for one axle, WVA 20510.
02
Wear indicator
Without a wear indicator.
03
Hardware included
Anti-squeal shims, fitting accessories and caliper bolts in the box.
04
ECE R90 approved
Prime friction material matched to the original pad for bite and wear.
On the job
The job it does

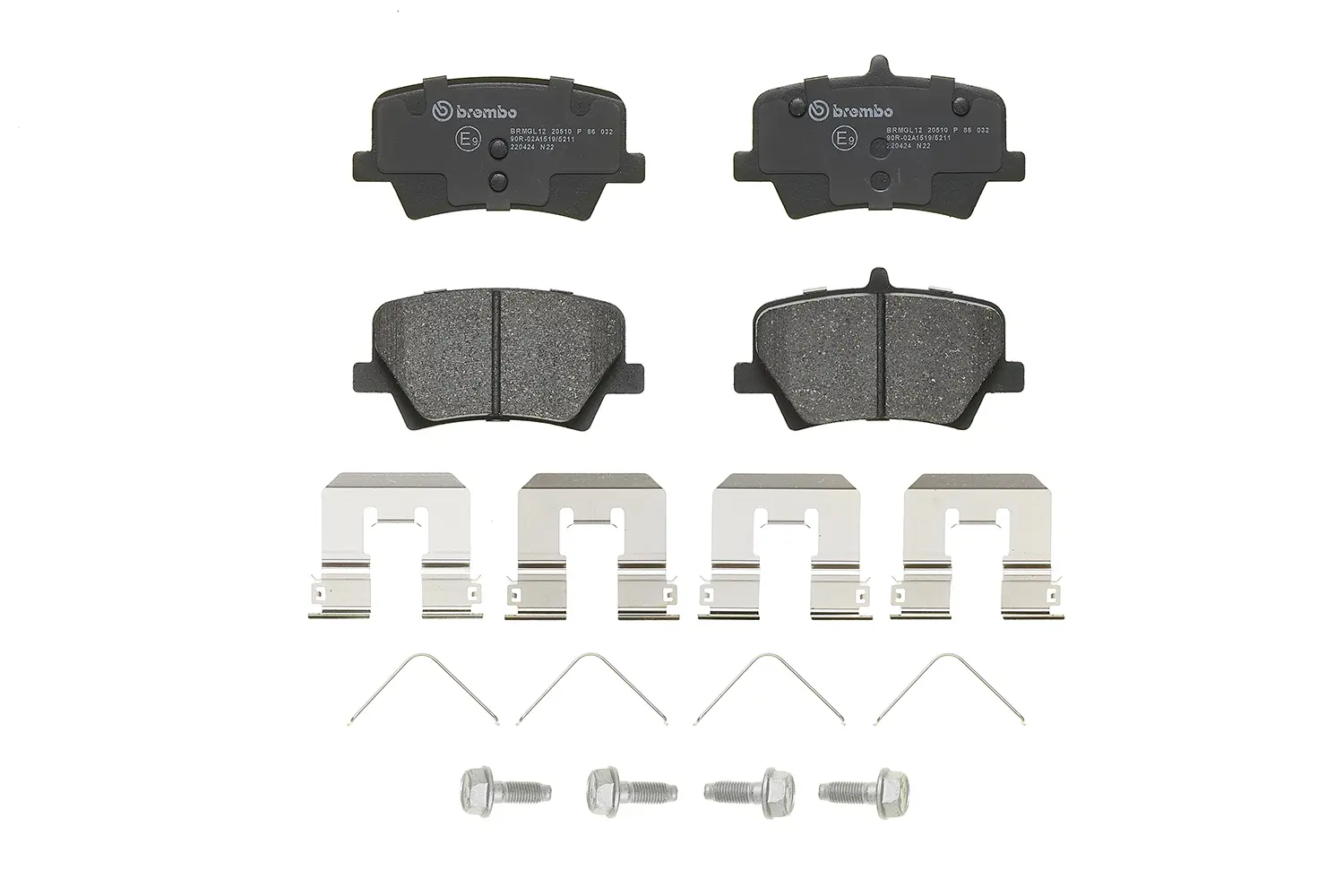

A complete rear axle set for the Volvo XC40 T4 Recharge. The pads measure 99 x 56 mm and are 17 mm thick, and the friction material is ECE R90 approved and matched to the original for bite and wear. The box includes anti-squeal shims, fitting accessories and caliper bolts, so worn hardware does not go back on.
Fitting it
Measure the discs while the wheels are off; if they are near the minimum thickness, replace them with the pads. There is no wear indicator, so check the lining thickness at every service. Clean and grease the caliper guides, push the piston back gently and bed the pads in with a few moderate stops.
