MANN-FILTER Oil filter W 610/3
Spin-on oil filter, M20x1.5 thread, 90 mm tall
- Art. no.
- W 610/3
- EAN
- 4011558738402
- 90mm
- 66mm
- M20x1.5
SKU MF-W6103 · EAN 4011558738402
Volume price
from 10 pcs · €9.31from 25 pcs · €8.91From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 152 · Next day
- Oslo Alnabru11
- Bergen Kokstad32
- Trondheim Tiller33
- Stockholm Västberga15
- Gothenburg Hisings Backa14
- Rotterdam Waalhaven23

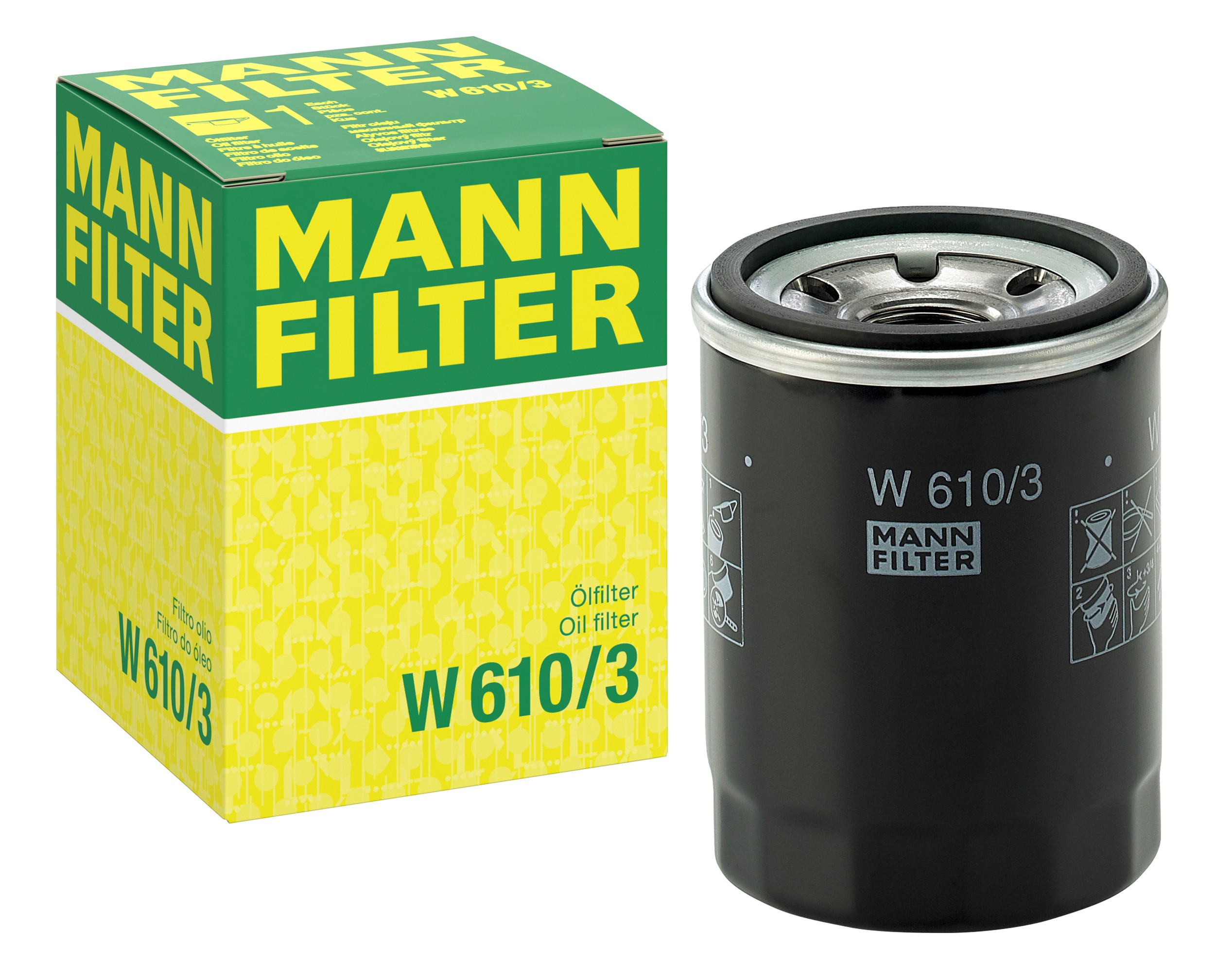

Spin-on oil filter W 610/3 for the Mitsubishi Outlander PHEV. The canister is 66 mm across and 90 mm tall, with a M20x1.5 thread and the sealing ring already fitted.

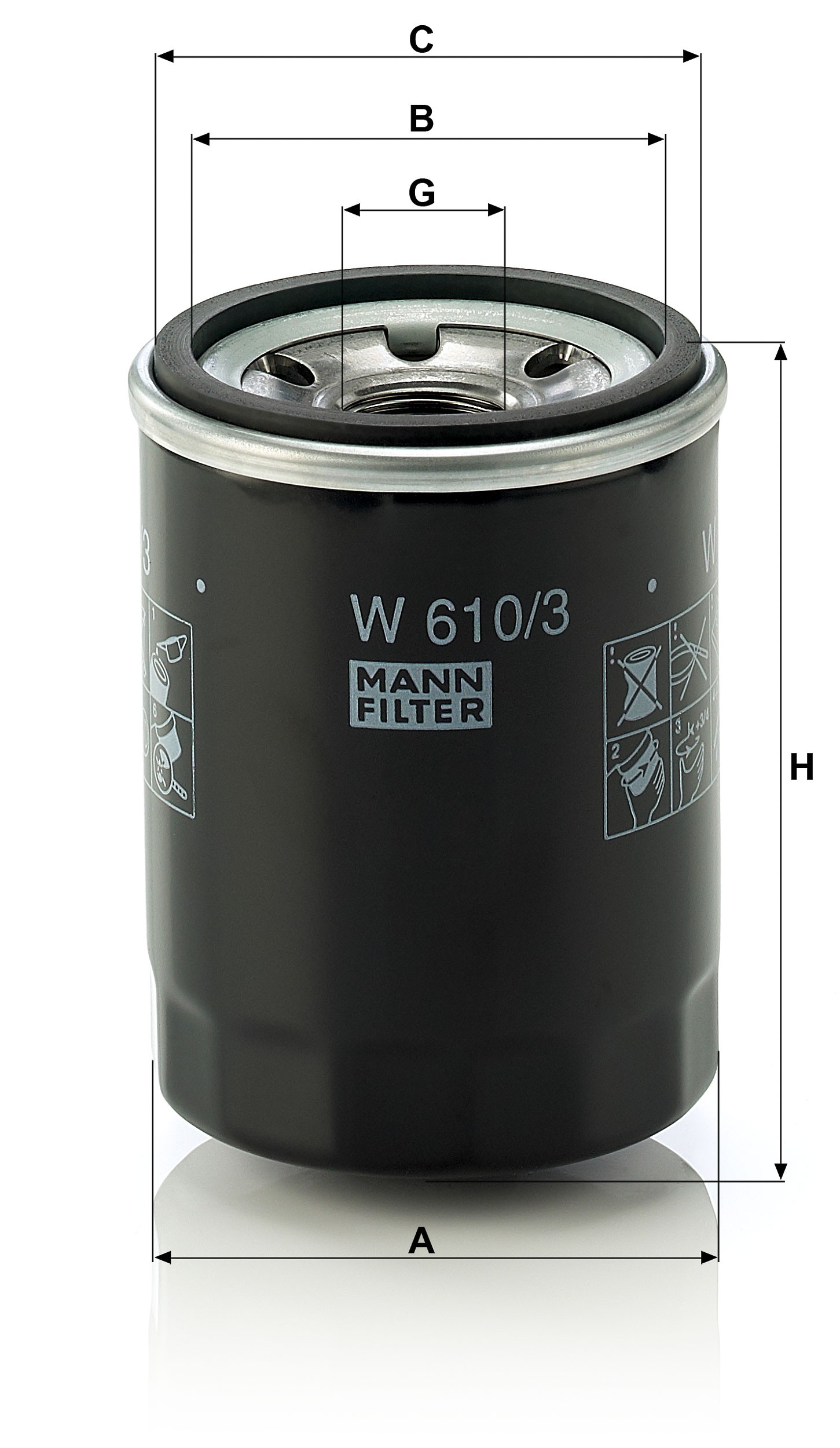

Specifications
Filter
- Design
- Spin-on
- Height
- 90mm
- Outer diameter
- 66mm
- Thread
- M20x1.5
- Gasket outer diameter
- 62mm
- Anti-drain valve
- ✓ Yes
- Water separator
- — No
- Seal included
- — No
- Metal-free (incinerable)
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Mitsubishi | MD 05281090 |
| Mitsubishi | MD 325714 |
| Mitsubishi | MZ 690116 |
| Mitsubishi | 30A40-00103 |
| Mitsubishi | MD321589 |
| Mitsubishi | MD 352627 |
| Mitsubishi | 30A40-00100 |
| Mitsubishi | MZ 690115 |
| Mitsubishi | 1230A105 |
| Mitsubishi | 1230A182 |
| Mitsubishi | MZ 690901 |
| Mitsubishi | MD 135 737 |
Why this one
01
Direct fit thread
M20x1.5 thread and 62 mm gasket match the OE filter head.
02
Anti-drain valve
Holds oil in the filter at standstill for quick pressure at start-up.
03
Bypass valve
Keeps oil flowing to the bearings on cold starts and with a loaded element.
On the job
Screw-on canister
The W 610/3 is a complete spin-on canister: unscrew the old one, oil the new sealing ring and tighten it by hand. The M20x1.5 thread and 62 mm gasket match the engine's filter head, and the canister carries a non-return valve that keeps oil in the filter when the engine stops, so pressure builds fast on the next start.
Service set
On a service the workshop usually replaces it together with the air filter C 31 038 and cabin filter CU 2141 for the same car, so one order covers the filters. The fitment list shows exactly which versions it suits. Log the change in the service book and reset the service indicator.
