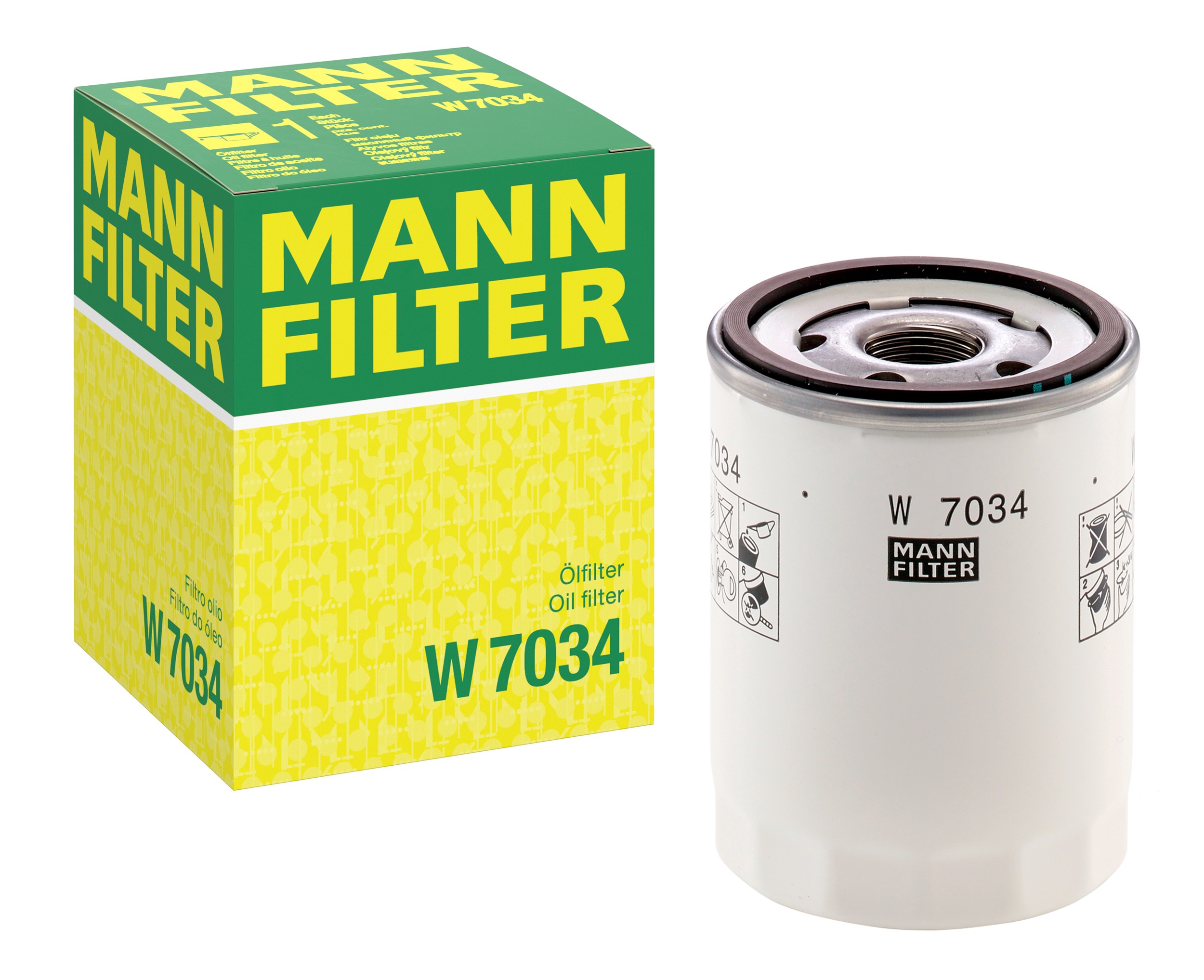

MANN-FILTER Oil filter W 7034
Spin-on oil filter, M22x1.5-6H thread, 100 mm tall
- Art. no.
- W 7034
- EAN
- 4011558078065
- 100mm
- 76mm
- M22x1.5-6H
SKU MF-W7034 · EAN 4011558078065
Volume price
from 10 pcs · €9.31from 25 pcs · €8.91From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 126 · Next day
- Oslo Alnabru40
- Bergen Kokstad19
- Trondheim Tiller37
- Stockholm Västberga25
- Gothenburg Hisings Backa31
- Rotterdam Waalhaven26

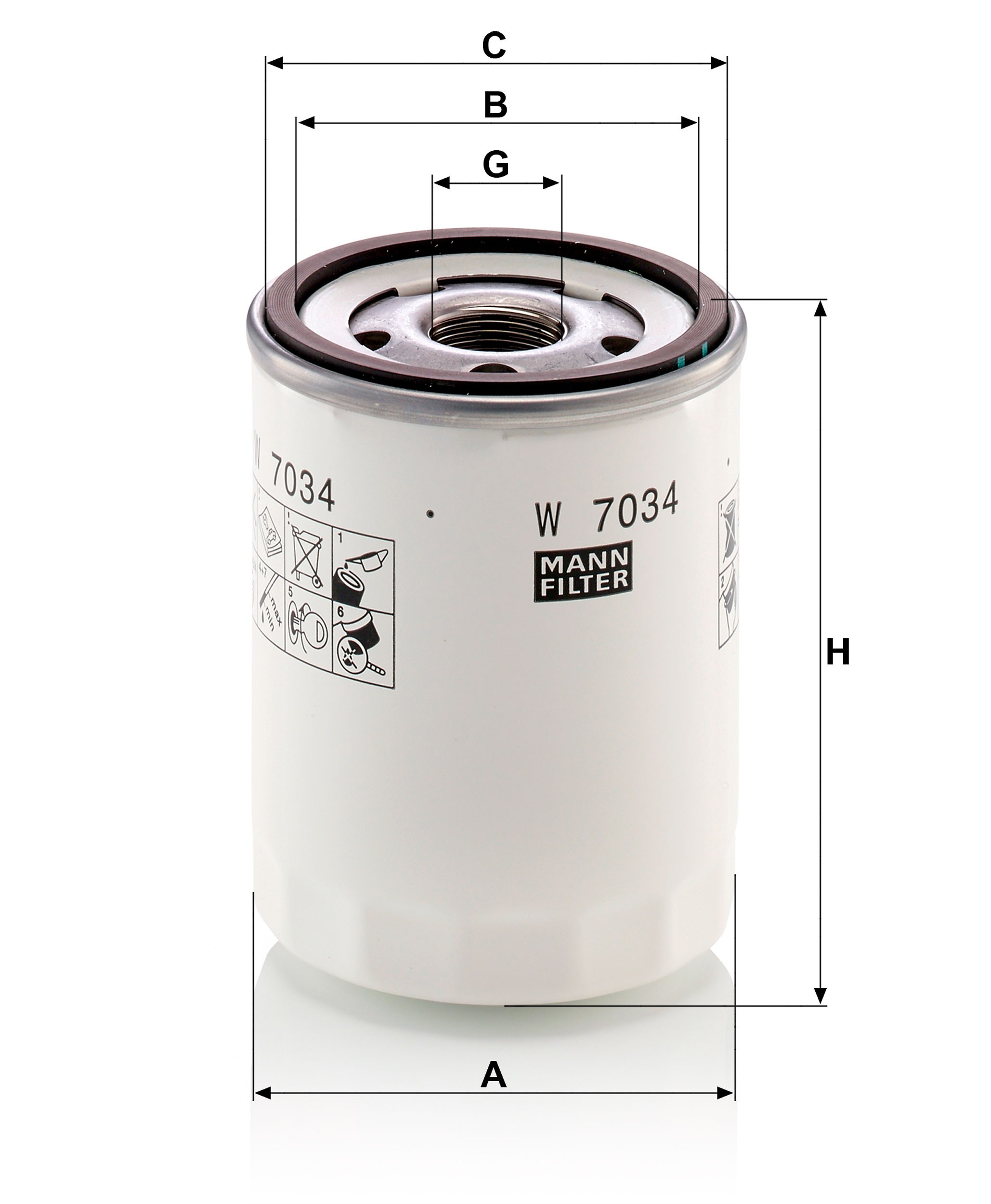

Spin-on oil filter W 7034 for the Ford Transit Custom 2.0 EcoBlue. The canister is 76 mm across and 100 mm tall, with a M22x1.5-6H thread and the sealing ring already fitted.
Specifications
Filter
- Design
- Spin-on
- Height
- 100mm
- Outer diameter
- 76mm
- Thread
- M22x1.5-6H
- Gasket outer diameter
- 72mm
- Anti-drain valve
- ✓ Yes
- Water separator
- — No
- Seal included
- — No
- Metal-free (incinerable)
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Ford | GK2Q-6714-AA |
| Ford | 2007 929 |
Why this one
01
Direct fit thread
M22x1.5-6H thread and 72 mm gasket match the OE filter head.
02
Anti-drain valve
Holds oil in the filter at standstill for quick pressure at start-up.
03
Bypass valve
Keeps oil flowing to the bearings on cold starts and with a loaded element.
On the job
Screw-on canister
The W 7034 is a complete spin-on canister: unscrew the old one, oil the new sealing ring and tighten it by hand. The M22x1.5-6H thread and 72 mm gasket match the engine's filter head, and the canister carries a non-return valve that keeps oil in the filter when the engine stops, so pressure builds fast on the next start.
Service set
On a service the workshop usually replaces it together with the air filter C 34 005, fuel filter PU 9025 and cabin filter CU 29 007 for the same car, so one order covers the filters. The fitment list shows exactly which versions it suits. Log the change in the service book and reset the service indicator.
