SKF Wheel bearing kit VKBA 3656
Rear hub bearing kit for the VW Golf VII and Skoda Octavia III
- Art. no.
- VKBA 3656
- 68mm
SKU SKF-VKBA3656
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 60 · Next day
- Oslo Alnabru8
- Bergen Kokstad0
- Trondheim Tiller6
- Stockholm Västberga9
- Gothenburg Hisings Backa8
- Rotterdam Waalhaven5

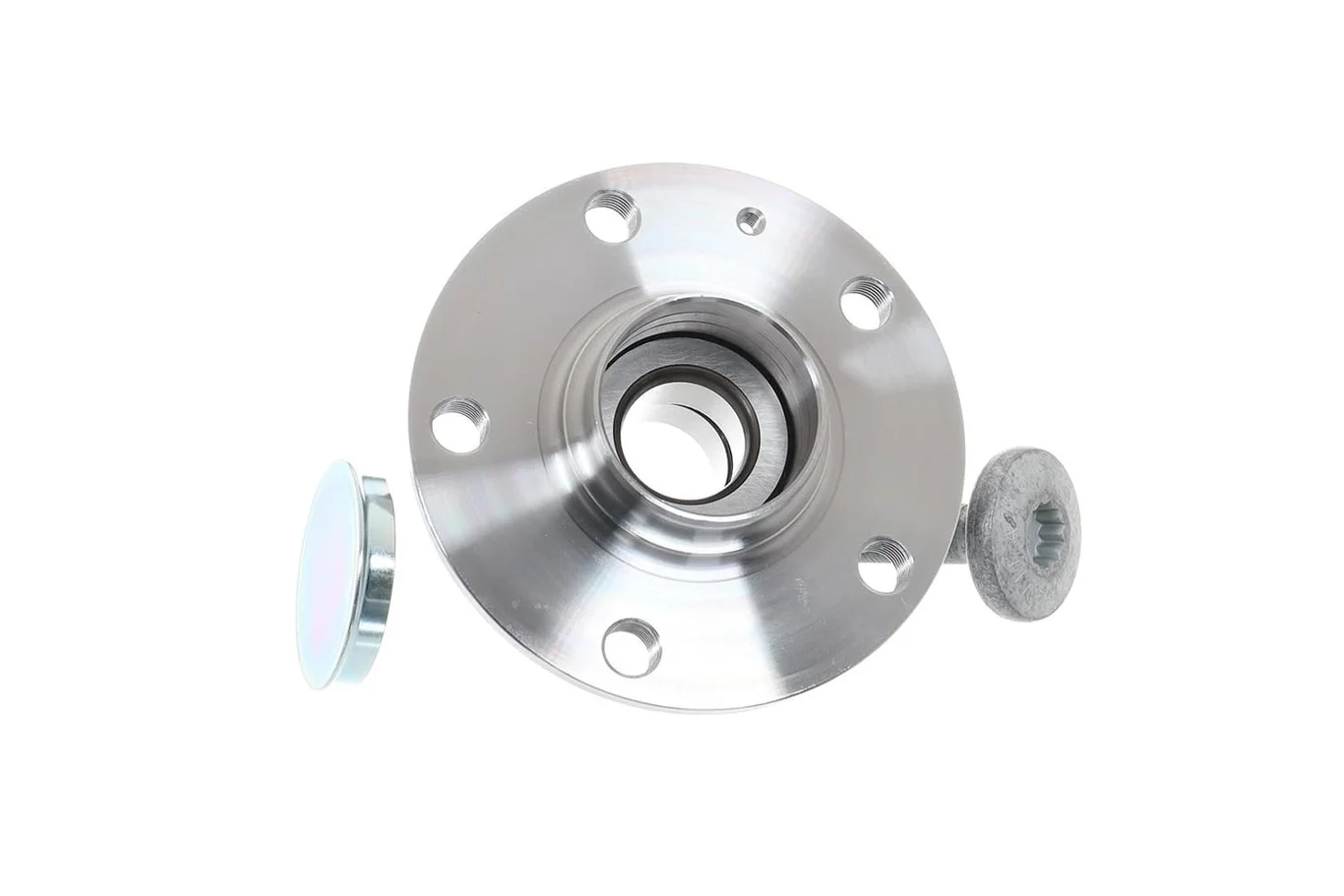

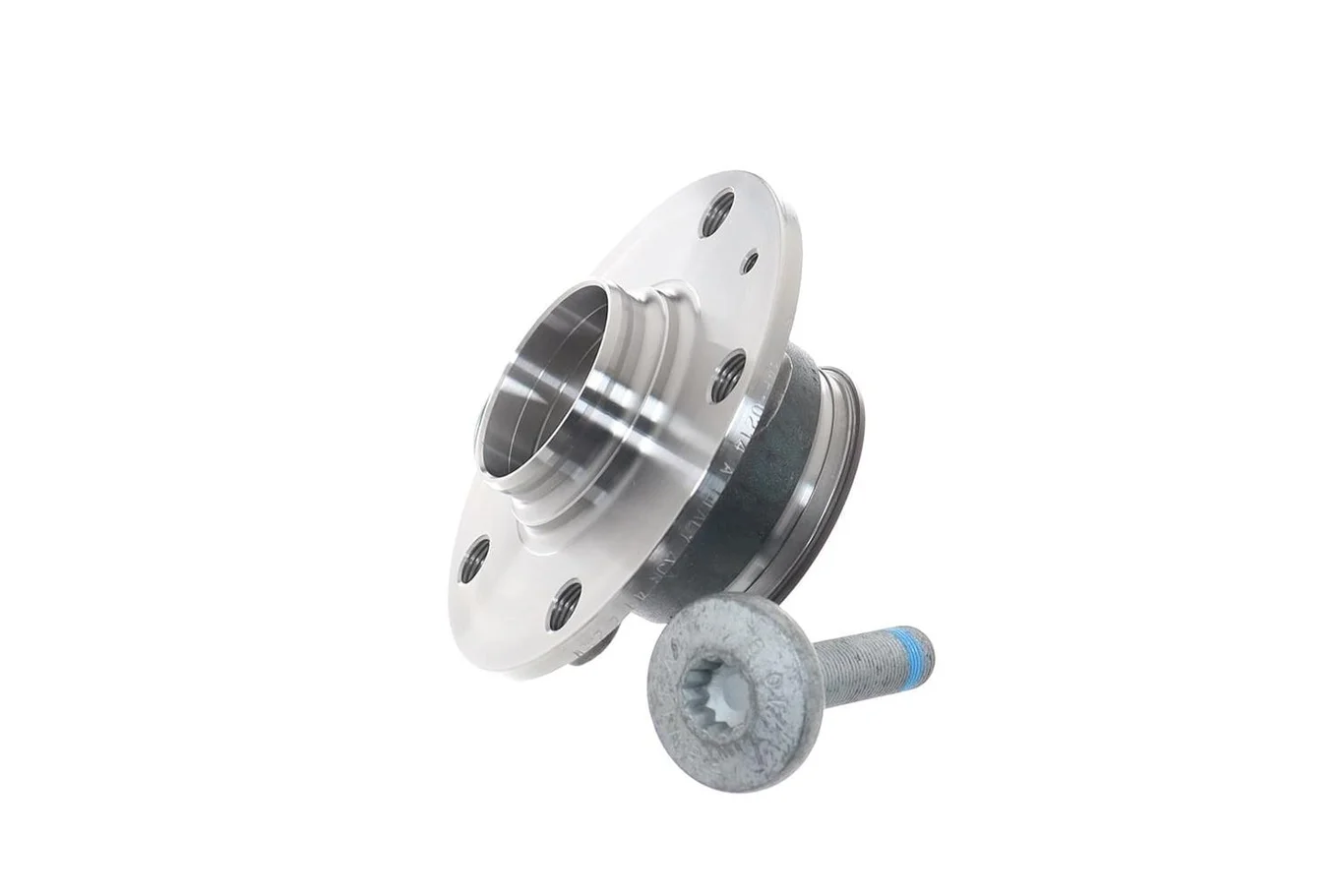

SKF hub bearing kit for the rear axle of the VW Golf VII and Skoda Octavia III. Key sizes: 30 mm bore, 68 mm wide, 136.5 mm flange, 5 wheel-bolt holes, with the ABS encoder built into the seal. Sold per wheel, with a fastener set in the box.
Fits
Vehicles this part is listed for, with position and conditions.
2 vehicles
- Skoda Octavia III (5E)2.0 CRMB 150 hpCRMB110 kW1102014–2020Rear axle
- Volkswagen Golf VII (5G)2.0 CRBC 150 hpCRBC110 kW1102013–2020Rear axleTwo per axle.
Specifications
Wheel bearing
- Inner diameter
- 30mm
- Width
- 68mm
- ABS encoder (magnetic)
- ✓ Yes
- Number of holes
- 5
- Wheel hub included
- — No
- Axle nut included
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| VW | 1K0 598 611 |
| Skoda | 5WA 501 611 |
| Audi | 5WA 501 611 A |
| Skoda | 5WA 501 611 D |
| Skoda | 8V0 598 611 |
| Skoda | 8V0 598 611 A |
Kit contents
- 1×Bearing
- 1×Fastener set
Why this one
01
Complete repair kit
Comes with a fastener set; nothing used goes back on.
02
Pre-set hub unit
Flange and bearing in one sealed unit, with no end-play to set.
03
ABS encoder in seal
Magnetic ring in the seal feeds the wheel-speed sensor; no separate tone ring.
04
Key dimensions
30 mm bore, 68 mm wide, 136.5 mm flange, 5 wheel-bolt holes.
On the job
The job
VKBA 3656 replaces a worn rear wheel bearing on the VW Golf VII and Skoda Octavia III. It is a complete hub unit with the flange built in, pre-set and sealed at the factory, so there is no end-play to adjust and it bolts straight on. The magnetic ABS encoder sits in the seal: fit it the right way round and keep magnetic tools and metal swarf away from it.
In the box and alongside
The kit comes with a fastener set, so no used fasteners go back on. SKF recommends its special tool VKN 604 for the job. SKF lists two per axle, and with the wheel off it is the moment to check the brake discs, pads, the CV joint boot and the other side's bearing.
