Brembo Brake disc 09.9145.11
288 mm vented front disc for four VW-group models
- Art. no.
- 09.9145.11
- EAN
- 8020584024287
- 288mm
- 25mm
- Vented
SKU BRE-09914511 · EAN 8020584024287
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 62 · Next day
- Oslo Alnabru16
- Bergen Kokstad0
- Trondheim Tiller10
- Stockholm Västberga18
- Gothenburg Hisings Backa36
- Rotterdam Waalhaven38

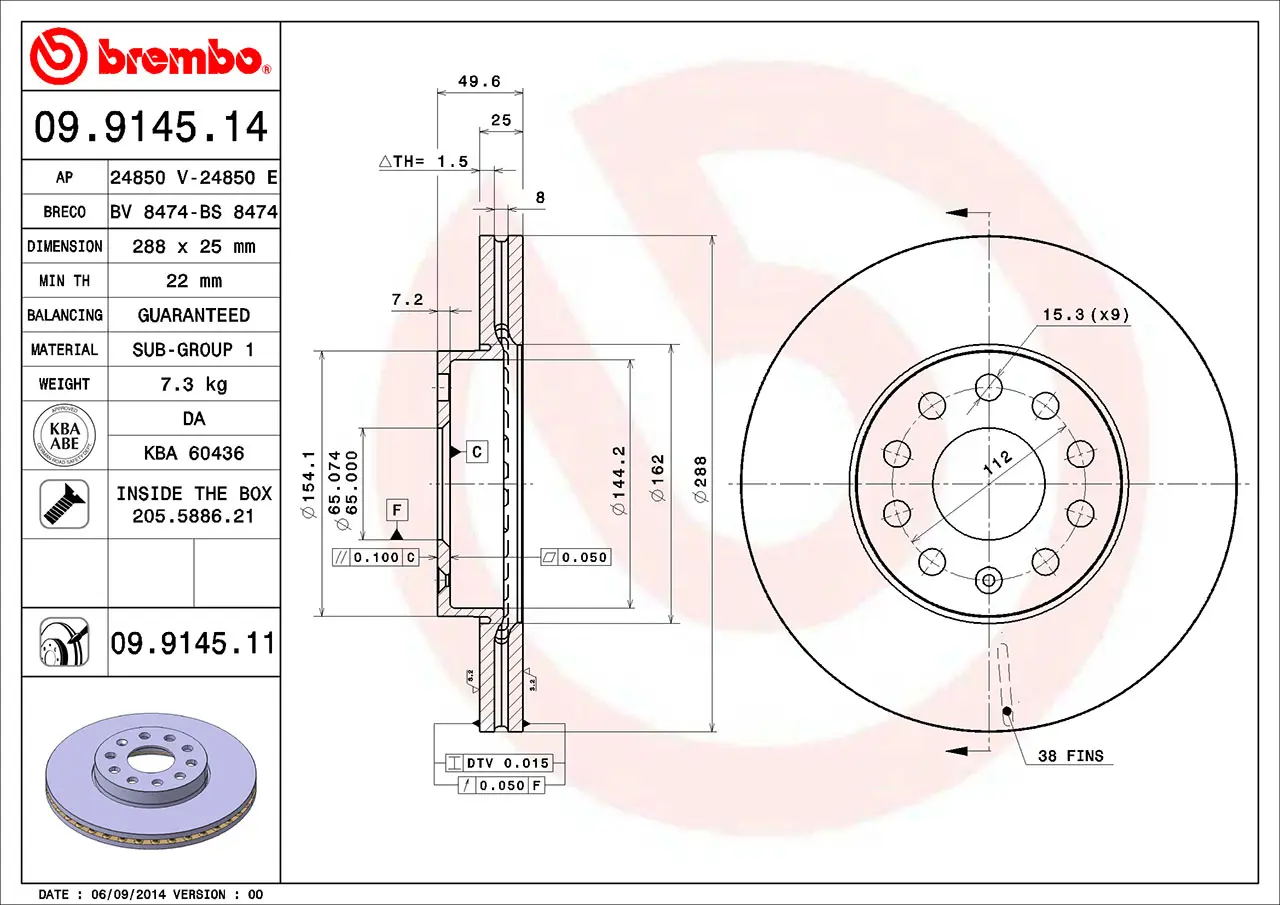

Brembo Prime 288 mm x 25 mm vented disc for the front axle of the VW Golf VII, Golf VIII, Skoda Octavia III and Octavia IV. UV-painted hat and edges, 5 holes and a 65 mm centre bore; replace at 22 mm. Sold as a pair, 2 discs per box.
Fits
Vehicles this part is listed for, with position and conditions.
4 vehicles
- Skoda Octavia III (5E)2.0 CRMB 150 hpCRMB110 kW1102014–2020Front axleFor PR code 1ZE, the base size here. PR 1ZA/1ZB take the 312 mm 09.9772.11.
- Skoda Octavia IV (NX)2.0 DTTC 150 hpDTTC110 kW1102020–2024Front axleFor PR code 1ZE, ATE caliper. Alternative fitment, not the base-equipment part.
- Volkswagen Golf VII (5G)2.0 CRBC 150 hpCRBC110 kW1102013–2020Front axleFor PR code 1ZE or 1ZP. Alternative fitment, not the base-equipment part.
- Volkswagen Golf VIII (CD1)1.5 DFYA 150 hpDFYA110 kW1102020–2024Front axleFor PR code 1ZE. Alternative fitment, not the base-equipment part.
Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 288mm
- Thickness
- 25mm
- Minimum thickness
- 22mm
- Height
- 50mm
- Centering diameter
- 65mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- — No
- Bolts included
- ✓ Yes
- Wheel bearing included
- — No
- Pieces per pack
- 2
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Audi/Skoda/VW | 1K0615301K |
| Audi/Skoda/VW | 1K0615301T |
| Audi/VW | 5C0615301A |
| Audi/VW | 5C0615301D |
| Audi/Skoda/VW | 5Q0615301H |
| Skoda/VW | JZW615301J |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 24012501451 |
| Bosch | 0986479088 |
| febi bilstein | 22902 |
| Ferodo | DDF1218 |
| Jurid | 562235J |
| Meyle | 1155211045 |
| Mintex | MDC1638 |
| Pagid | 54208 |
| Textar | 92120800 |
| TRW | DF4295 |
Why this one
01
288 x 25 mm
Vented disc, 5 holes, 65 mm centre bore, minimum thickness 22 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
OE-equivalent vented disc for the front axle of the VW Golf VII, Golf VIII, Skoda Octavia III and Octavia IV. New it measures 288 x 25 mm and it must be replaced at 22 mm. The geometry matches the original disc, so no changes are needed at the hub or caliper.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new front pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. Brembo lists a tightening torque of 120 Nm. A brake fluid change is often due at the same visit. Check the PR code on the service sticker before ordering.
