SKF Wheel bearing kit VKBA 7220
Front hub bearing kit for the Mercedes C-Class W205
- Art. no.
- VKBA 7220
SKU SKF-VKBA7220
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 31 · Next day
- Oslo Alnabru8
- Bergen Kokstad0
- Trondheim Tiller7
- Stockholm Västberga0
- Gothenburg Hisings Backa6
- Rotterdam Waalhaven0

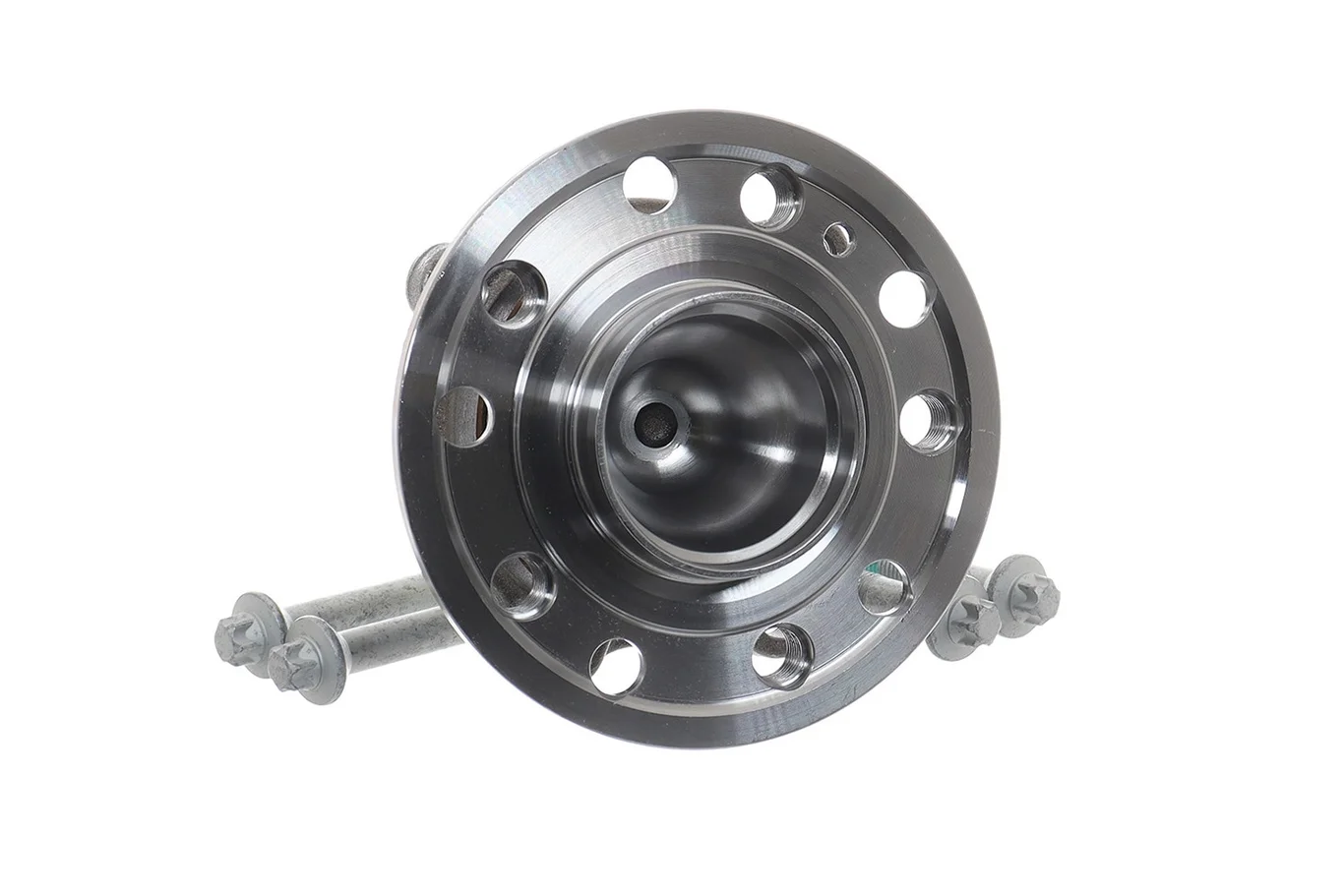

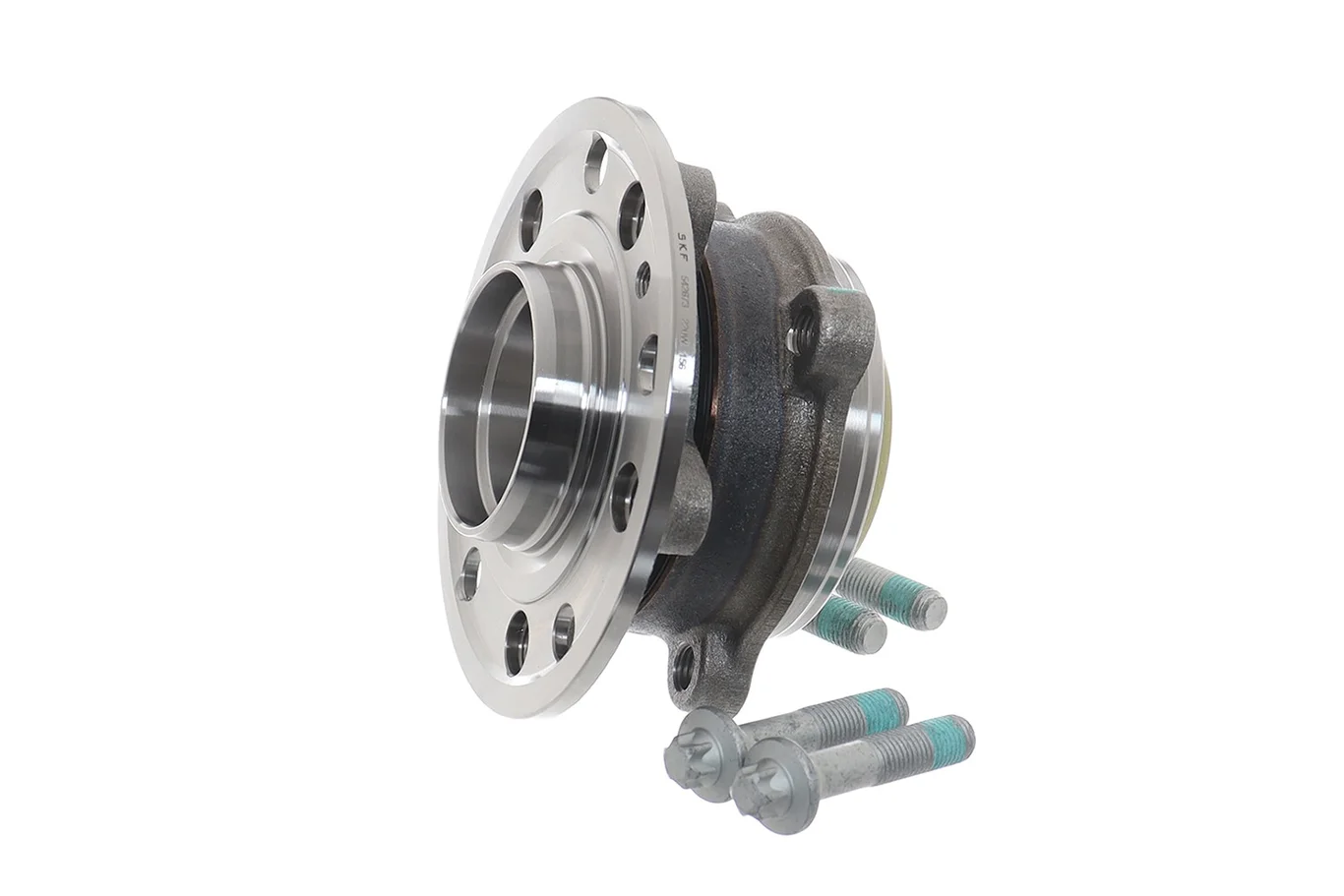

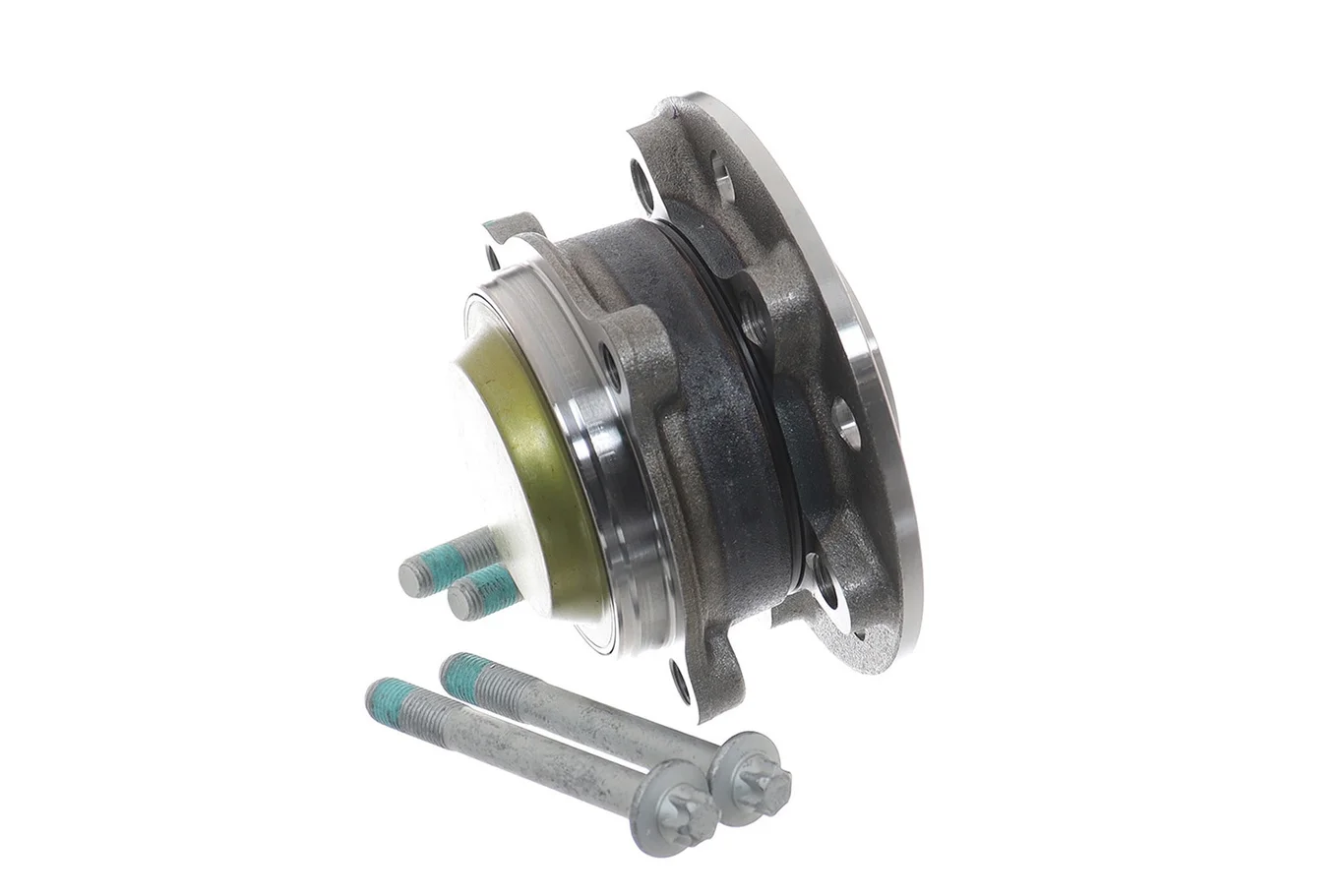

SKF hub bearing kit for the front axle of the Mercedes C-Class W205. Key sizes: 148 mm flange, 5 wheel-bolt holes, with the ABS encoder built into the seal. Sold per wheel, with four screws in the box.
Fits
Vehicles this part is listed for, with position and conditions.
1 vehicle
- Mercedes-Benz C-Class W2052.1 OM651.921 170 hpOM651.921125 kW1252014–2018Front axleTwo per axle.
Specifications
Wheel bearing
- ABS encoder (magnetic)
- ✓ Yes
- Number of holes
- 5
- Wheel hub included
- — No
- Axle nut included
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Mercedes-Benz | 205 334 02 00 |
| Mercedes-Benz | 205 334 04 00 |
| Mercedes-Benz | A 205 334 02 00 |
| Mercedes-Benz | A 205 334 04 00 |
Kit contents
- 1×Bearing
- 2×Screw
- 2×Screw
Why this one
01
Complete repair kit
Comes with four screws; nothing used goes back on.
02
Pre-set hub unit
Flange and bearing in one sealed unit, with no end-play to set.
03
ABS encoder in seal
Magnetic ring in the seal feeds the wheel-speed sensor; no separate tone ring.
04
Key dimensions
148 mm flange, 5 wheel-bolt holes.
On the job
The job
VKBA 7220 replaces a worn front wheel bearing on the Mercedes C-Class W205. It is a complete hub unit with the flange built in, pre-set and sealed at the factory, so there is no end-play to adjust and it bolts straight on. The magnetic ABS encoder sits in the seal: fit it the right way round and keep magnetic tools and metal swarf away from it.
In the box and alongside
The kit comes with four screws, so no used fasteners go back on. SKF recommends its special tool VKN 604 for the job. SKF lists two per axle, and with the wheel off it is the moment to check the brake discs, pads, the CV joint boot and the other side's bearing.
