Brembo Co-Cast brake disc 09.D526.13
305 mm vented front disc for the Mercedes-Benz C 220 d (W205)
- Art. no.
- 09.D526.13
- EAN
- 8020584226209
- 305mm
- 28mm
- Vented
SKU BRE-09D52613 · EAN 8020584226209
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 79 · Next day
- Oslo Alnabru36
- Bergen Kokstad14
- Trondheim Tiller15
- Stockholm Västberga33
- Gothenburg Hisings Backa26
- Rotterdam Waalhaven11

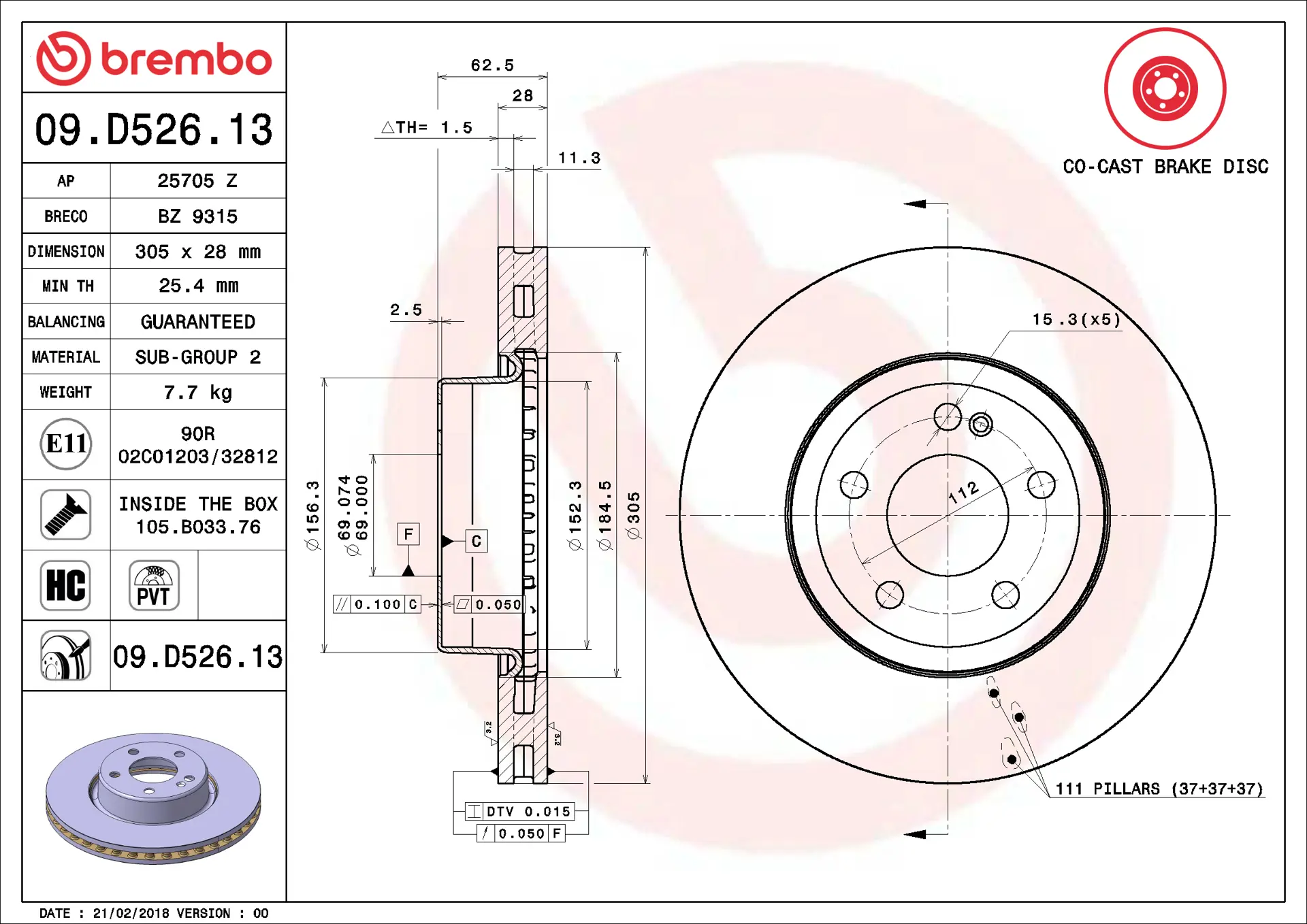

Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 305mm
- Thickness
- 28mm
- Minimum thickness
- 25.4mm
- Height
- 63mm
- Centering diameter
- 69mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- ✓ Yes
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Mercedes-Benz | 0004212512 |
| Mercedes-Benz | A0004212512 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 24012803001 |
| Bosch | 0986479G41 |
| febi bilstein | 175190 |
| Meyle | 0835211000PD |
| Textar | 92330805 |
| TRW | DF6641S |
| Zimmermann | 400551530 |
| ATE | 24012803301 |
Why this one
01
305 x 28 mm
Vented disc, 5 holes, 69 mm centre bore, minimum thickness 25.4 mm.
02
Co-Cast construction
Steel hat on a cast-iron braking ring, lighter than a one-piece disc.
03
High-carbon iron
Extra carbon damps vibration and helps the disc handle heat.
04
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
Co-Cast vented disc for the front axle of the Mercedes-Benz C 220 d (W205). New it measures 305 x 28 mm and it must be replaced at 25.4 mm. The high-carbon iron damps vibration and copes better with heat, which helps against judder. Pillar-type (PVT) cooling vanes resist heat cracking better than straight vanes. The steel hat makes it lighter than a one-piece disc, the same construction the car had from new.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new front pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. Brembo lists a tightening torque of 150 Nm. A brake fluid change is often due at the same visit.
