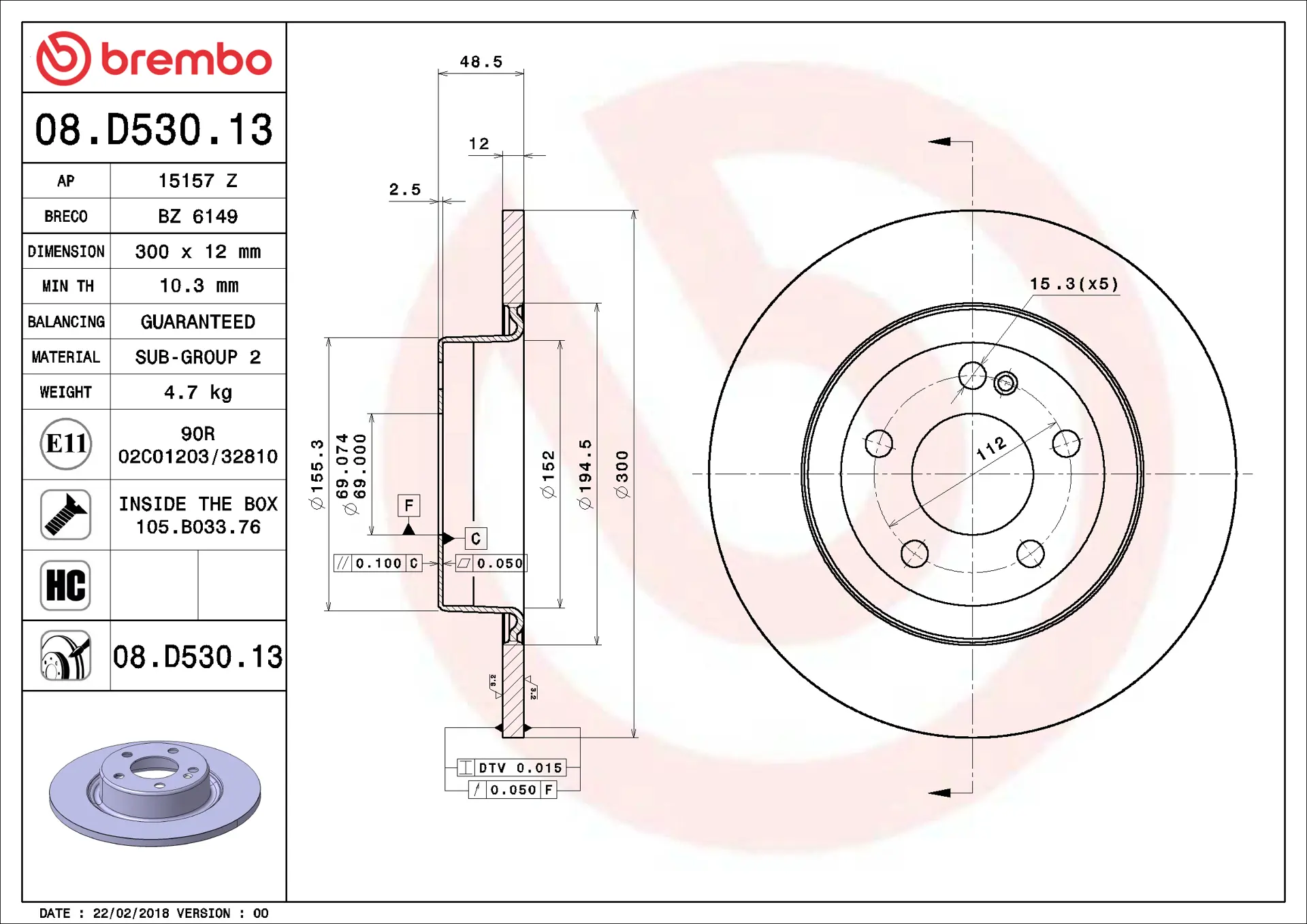

Brembo Co-Cast brake disc 08.D530.13
Specifications
Brake disc
- Disc type
- Solid
- Diameter
- 300mm
- Thickness
- 12mm
- Minimum thickness
- 10.3mm
- Height
- 49mm
- Centering diameter
- 69mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- ✓ Yes
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Mercedes-Benz | 0004230512 |
| Mercedes-Benz | A0004230512 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 24011203001 |
| Bosch | 0986479H49 |
| febi bilstein | 107726 |
| Ferodo | DDF2665VC1 |
| Meyle | 0835231000PD |
| Textar | 92354325 |
| TRW | DF6646S |
| Zimmermann | 400552630 |
Why this one
01
300 x 12 mm
Solid disc, 5 holes, 69 mm centre bore, minimum thickness 10.3 mm.
02
Co-Cast construction
Steel hat on a cast-iron braking ring, lighter than a one-piece disc.
03
High-carbon iron
Extra carbon damps vibration and helps the disc handle heat.
04
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
Co-Cast solid disc for the rear axle of the Mercedes-Benz C 220 d (W205). New it measures 300 x 12 mm and it must be replaced at 10.3 mm. The high-carbon iron damps vibration and copes better with heat, which helps against judder. The steel hat makes it lighter than a one-piece disc, the same construction the car had from new.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new rear pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. Brembo lists a tightening torque of 150 Nm. A brake fluid change is often due at the same visit.
