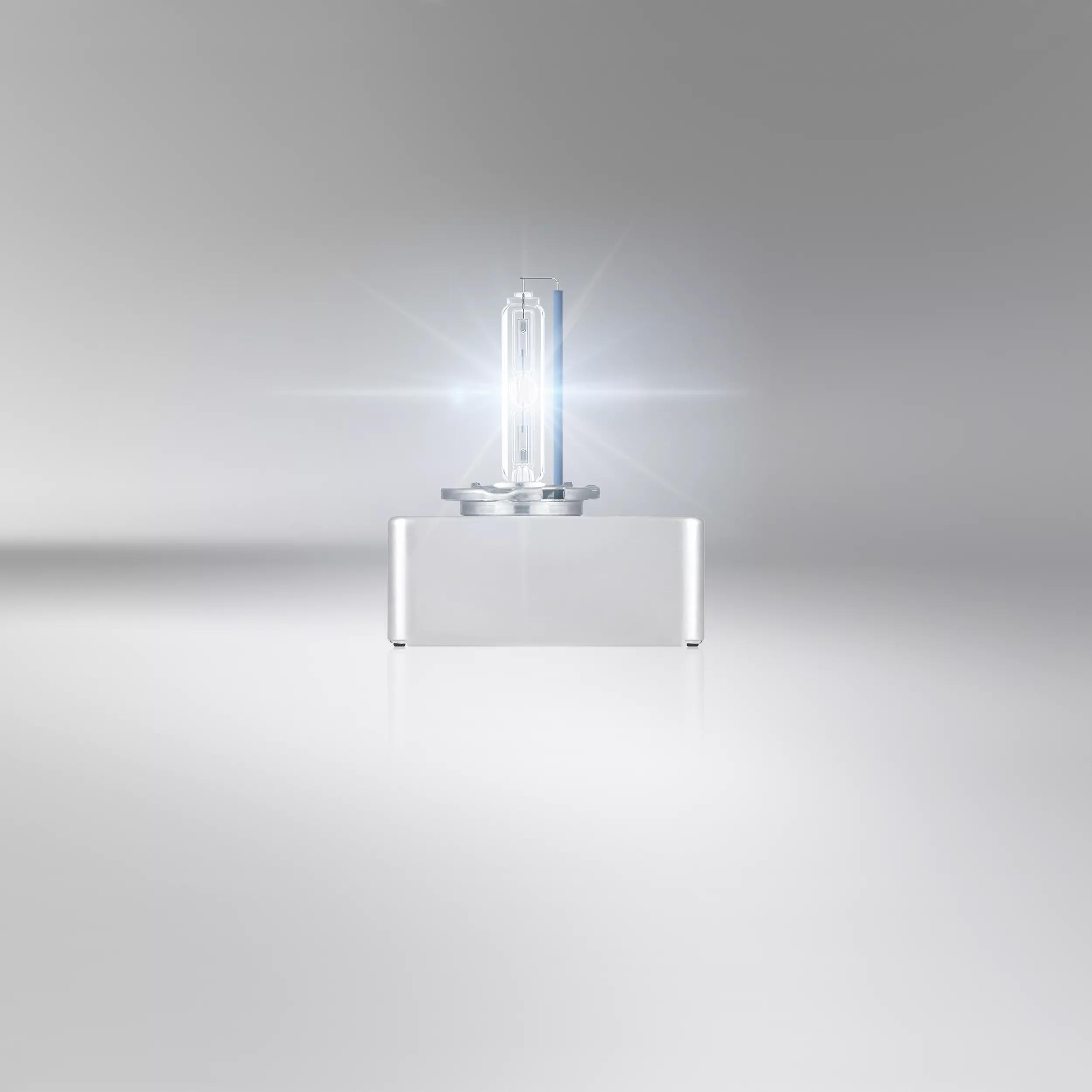

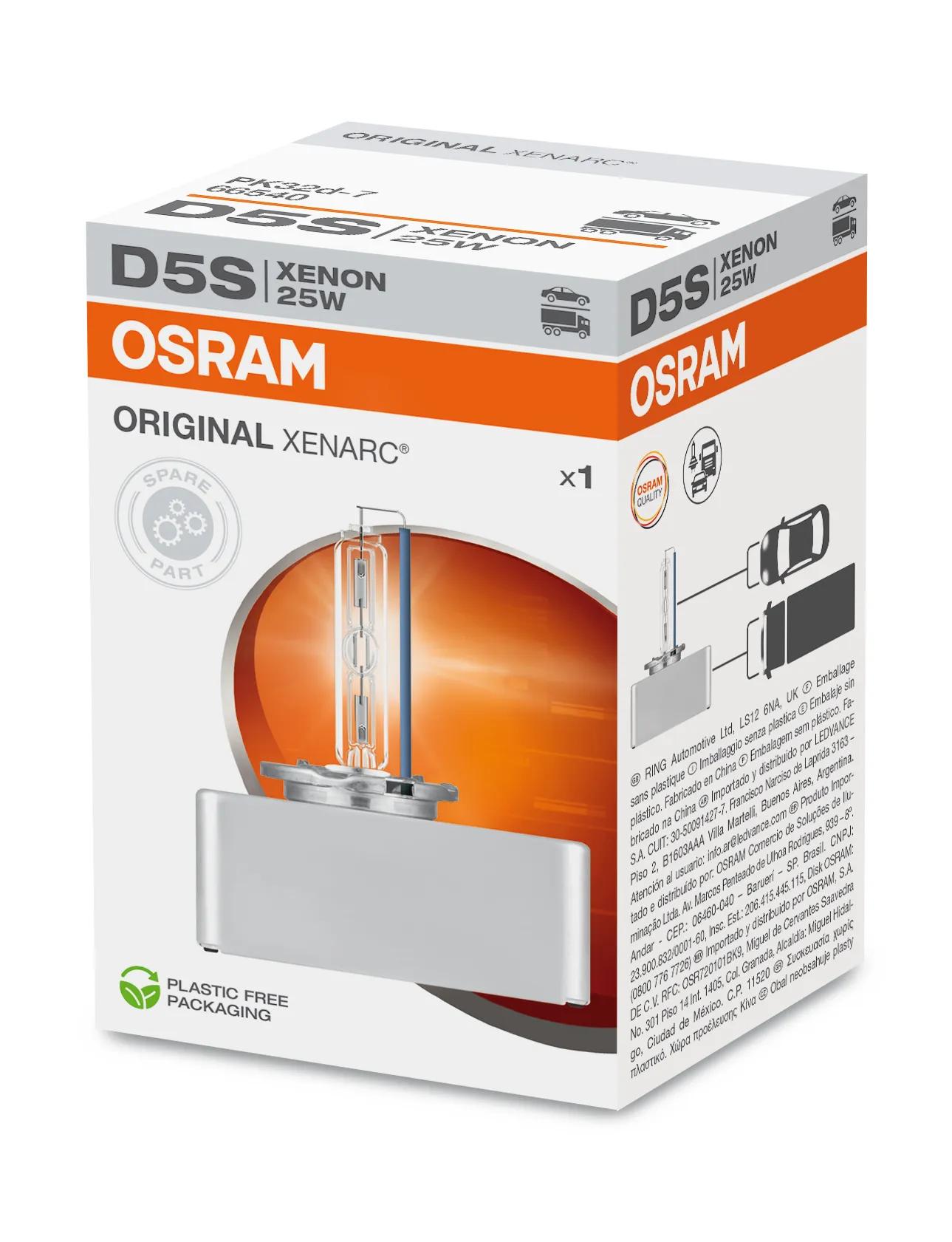

OSRAM XENARC ORIGINAL D5S xenon bulb 66540
Compact 12 V D5S xenon lamp with built-in ballast
- Art. no.
- 66540
- EAN
- 4062172305457
- D5S
- 25W
SKU OSR-66540 · EAN 4062172305457
Volume price
from 10 pcs · €81.88from 50 pcs · €75.65From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 160 · Next day
- Oslo Alnabru24
- Bergen Kokstad25
- Trondheim Tiller31
- Stockholm Västberga14
- Gothenburg Hisings Backa34
- Rotterdam Waalhaven23
XENARC ORIGINAL D5S, a 12 V 25 W xenon lamp on the PK32d-7 base with the ballast built in, 2000 lm at 4500 K. The lamp finder lists it for low and high beam on the Audi A4 B9 and Ford Transit Custom with bi-xenon headlamps.
Fits
Vehicles this part is listed for, with position and conditions.
2 vehicles
- Audi A4 B9 (8W)2.0 DETA 190 hpDETA140 kW1402015–2018Low beam (with bi-xenon); high beam (with bi-xenon).
- Ford Transit Custom V3622.0 BKFA 131 hpBKFA96 kW962019–2023Low beam (with bi-xenon); high beam (with bi-xenon).
Specifications
Bulb
- Lamp type
- D5S
- Light source
- Xenon (HID)
- Voltage
- 12V
- Wattage
- 25W
- Luminous flux
- 2,000lm
- Colour temperature
- 4,500K
- Base
- PK32d-7
- Lifetime (B3)
- 1,500h
- ECE approved for road use
- ✓ Yes
- Pieces per pack
- 1
Physical
- Weight
- 0.14kg
- Package length
- 62mm
- Package width
- 57mm
- Package height
- 95mm
Technology
Why this one
01
Ballast built in
Electronics sit in the base; the lamp runs on 12 V.
02
2000 lm, 4500 K
Nominal output at 13.5 V test voltage.
03
1500 h B3 life
Rated life at B3; 3000 h Tc.
04
XENARC ORIGINAL
OE-grade xenon line, E13 approval.
On the job
Lamp and ballast in one
D5S puts the electronics in the lamp base, so it runs straight off 12 V and is changed as one unit. In our range it lights both beams in the bi-xenon headlamps of the Audi A4 B9 and Ford Transit Custom. This is the XENARC ORIGINAL version, rated 1500 h B3, with E13 approval.
On the job
Replace in pairs so colour and output match side to side, and check the headlamp aim afterwards. Because the ballast is part of the lamp, there is no separate ballast to source for this job. Handle the burner by its base and keep the glass clean.
