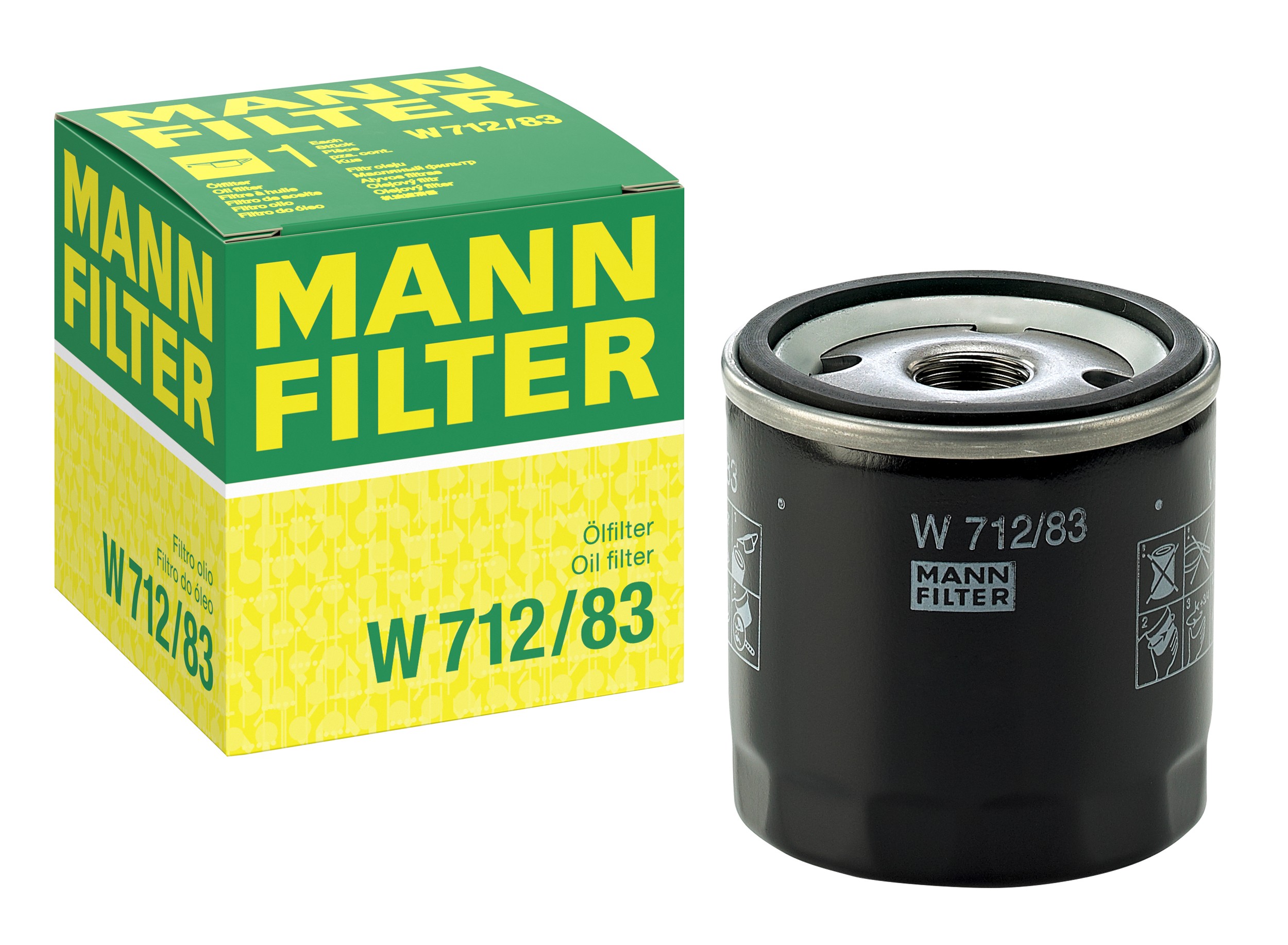

MANN-FILTER Oil filter W 712/83

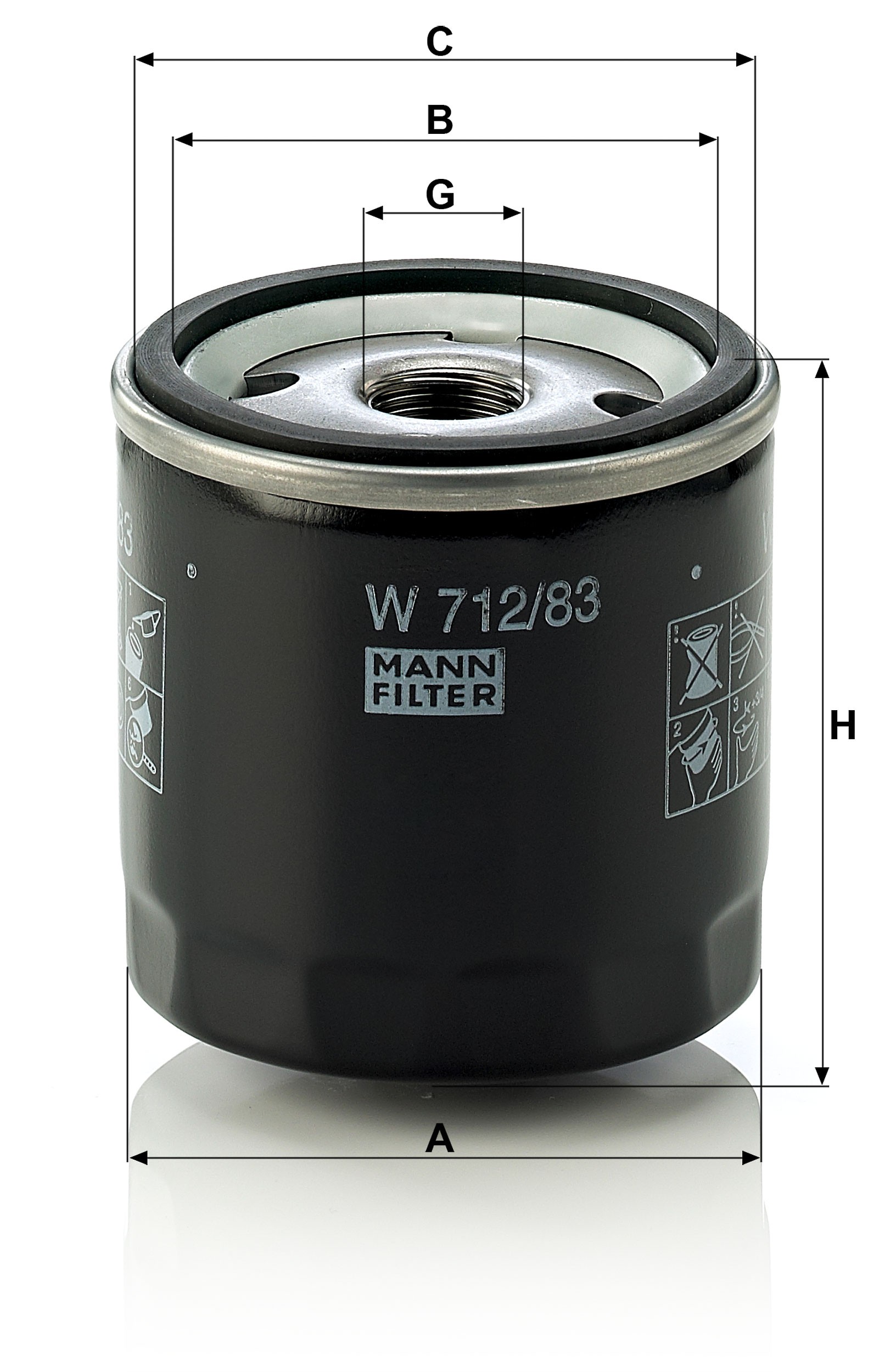

Spin-on oil filter, 3/4-16UNF thread, 79 mm tall
- Art. no.
- W 712/83
- EAN
- 4011558000943
- 79mm
- 76mm
- 3/4-16UNF
SKU MF-W71283 · EAN 4011558000943
Volume price
from 10 pcs · €9.31from 25 pcs · €8.91From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 166 · Next day
- Oslo Alnabru0
- Bergen Kokstad40
- Trondheim Tiller28
- Stockholm Västberga9
- Gothenburg Hisings Backa26
- Rotterdam Waalhaven27
Spin-on oil filter W 712/83 for the Toyota Hilux 2.4 D. The canister is 76 mm across and 79 mm tall, with a 3/4-16UNF thread and the sealing ring already fitted.
Fits
Vehicles this part is listed for, with position and conditions.
1 vehicle
- Toyota Hilux VIII (AN120)2.4 2GD-FTV 150 hp2GD-FTV110 kW1102015–2024
Specifications
Filter
- Design
- Spin-on
- Height
- 79mm
- Outer diameter
- 76mm
- Thread
- 3/4-16UNF
- Gasket outer diameter
- 71mm
- Anti-drain valve
- ✓ Yes
- Water separator
- — No
- Seal included
- — No
- Metal-free (incinerable)
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Toyota | 15601-76009-71 |
| Toyota | 90915-20003 |
| Toyota | 90915-33021 |
| Toyota | 04152-03002 |
| Toyota | 90915-20004 |
| Toyota | 08922-02011 |
| Toyota | 90915-YZZJ3 |
| Toyota | 15600-25010 |
| Toyota | 15601-25010 |
| Toyota | 15601-78001-71 |
| Toyota | 40150-30370-71 |
| Toyota | 90915-20001 |
Why this one
01
Direct fit thread
3/4-16UNF thread and 71 mm gasket match the OE filter head.
02
Anti-drain valve
Holds oil in the filter at standstill for quick pressure at start-up.
03
Bypass valve
Keeps oil flowing to the bearings on cold starts and with a loaded element.
On the job
Screw-on canister
The W 712/83 is a complete spin-on canister: unscrew the old one, oil the new sealing ring and tighten it by hand. The 3/4-16UNF thread and 71 mm gasket match the engine's filter head, and the canister carries a non-return valve that keeps oil in the filter when the engine stops, so pressure builds fast on the next start.
Service set
On a service the workshop usually replaces it together with the air filter C 33 017 and cabin filter CU 22 032 for the same car, so one order covers the filters. The fitment list shows exactly which versions it suits. Log the change in the service book and reset the service indicator.
