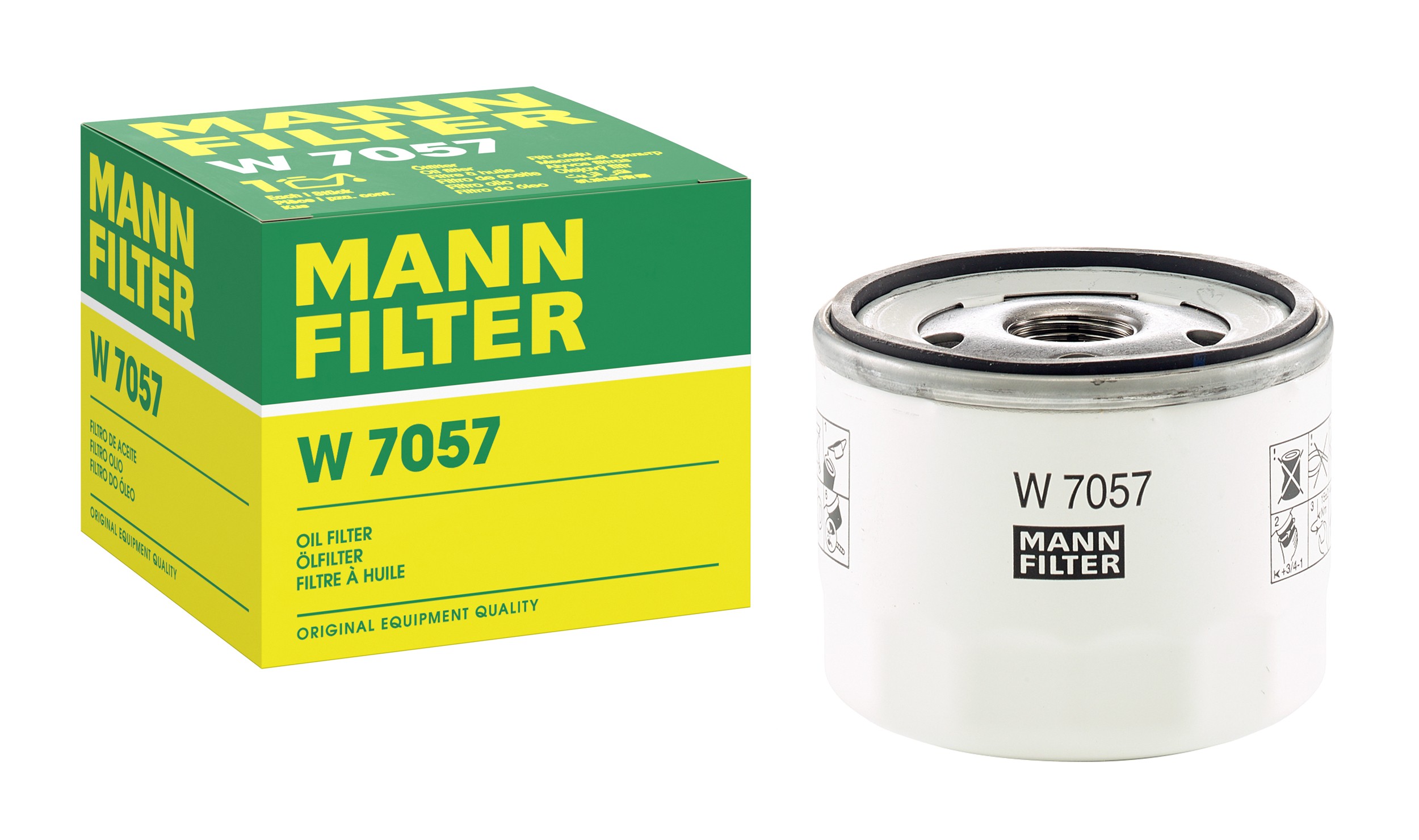

MANN-FILTER Oil filter W 7057
Spin-on oil filter, 3/4-16UNF-1B thread, 63 mm tall
- Art. no.
- W 7057
- EAN
- 4011558092481
- 63mm
- 76mm
- 3/4-16UNF-1B
SKU MF-W7057 · EAN 4011558092481
Volume price
from 10 pcs · €9.31from 25 pcs · €8.91From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 52 · Next day
- Oslo Alnabru34
- Bergen Kokstad11
- Trondheim Tiller15
- Stockholm Västberga32
- Gothenburg Hisings Backa13
- Rotterdam Waalhaven11
Spin-on oil filter W 7057 for the Ford Focus 1.0 EcoBoost. The canister is 76 mm across and 63 mm tall, with a 3/4-16UNF-1B thread and the sealing ring already fitted.
Fits
Vehicles this part is listed for, with position and conditions.
1 vehicle
- Ford Focus IV (HN)1.0 B7DA 125 hpB7DA92 kW922018–2024
Specifications
Filter
- Design
- Spin-on
- Height
- 63mm
- Outer diameter
- 76mm
- Thread
- 3/4-16UNF-1B
- Gasket outer diameter
- 72mm
- Anti-drain valve
- ✓ Yes
- Water separator
- — No
- Seal included
- — No
- Metal-free (incinerable)
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Ford | H6BG-6714-BA |
| Ford | 2207 993 |
Why this one
01
Direct fit thread
3/4-16UNF-1B thread and 72 mm gasket match the OE filter head.
02
Anti-drain valve
Holds oil in the filter at standstill for quick pressure at start-up.
03
Bypass valve
Keeps oil flowing to the bearings on cold starts and with a loaded element.
On the job
Screw-on canister
The W 7057 is a complete spin-on canister: unscrew the old one, oil the new sealing ring and tighten it by hand. The 3/4-16UNF-1B thread and 72 mm gasket match the engine's filter head, and the canister carries a non-return valve that keeps oil in the filter when the engine stops, so pressure builds fast on the next start.
Service set
On a service the workshop usually replaces it together with the air filter C 27 031 and cabin filter CU 28 009 for the same car, so one order covers the filters. The fitment list shows exactly which versions it suits. Log the change in the service book and reset the service indicator.
