Brembo Brake disc 08.C309.11
290 mm solid rear disc for the Peugeot 3008 1.5 BlueHDi
- Art. no.
- 08.C309.11
- EAN
- 8020584219003
- 290mm
- 12mm
- Solid
SKU BRE-08C30911 · EAN 8020584219003
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 136 · Next day
- Oslo Alnabru17
- Bergen Kokstad10
- Trondheim Tiller8
- Stockholm Västberga9
- Gothenburg Hisings Backa0
- Rotterdam Waalhaven24
Specifications
Brake disc
- Disc type
- Solid
- Diameter
- 290mm
- Thickness
- 12mm
- Minimum thickness
- 10mm
- Height
- 35mm
- Centering diameter
- 71mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Peugeot | 1609583080 |
| Peugeot | 1642776480 |
| Peugeot | 1687772680 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 24011202121 |
| Bosch | 0986479C25 |
| febi bilstein | 104169 |
| Ferodo | DDF2654C |
| Meyle | 11155230015 |
| Mintex | MDC2601 |
| Pagid | 55673 |
Why this one
01

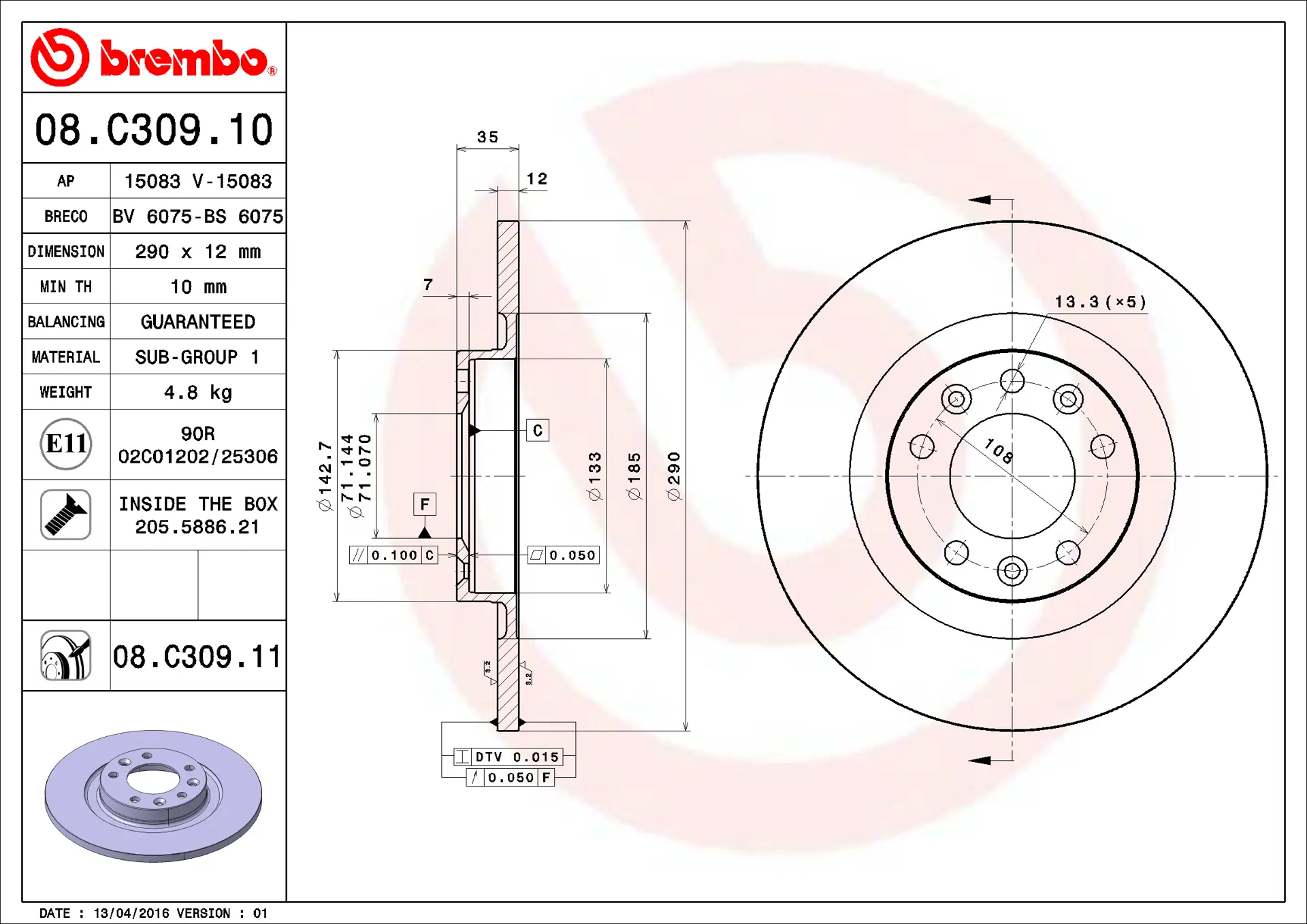

290 x 12 mm
Solid disc, 5 holes, 71 mm centre bore, minimum thickness 10 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
OE-equivalent solid disc for the rear axle of the Peugeot 3008 1.5 BlueHDi. New it measures 290 x 12 mm and it must be replaced at 10 mm. The geometry matches the original disc, so no changes are needed at the hub or caliper.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new rear pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. A brake fluid change is often due at the same visit.
