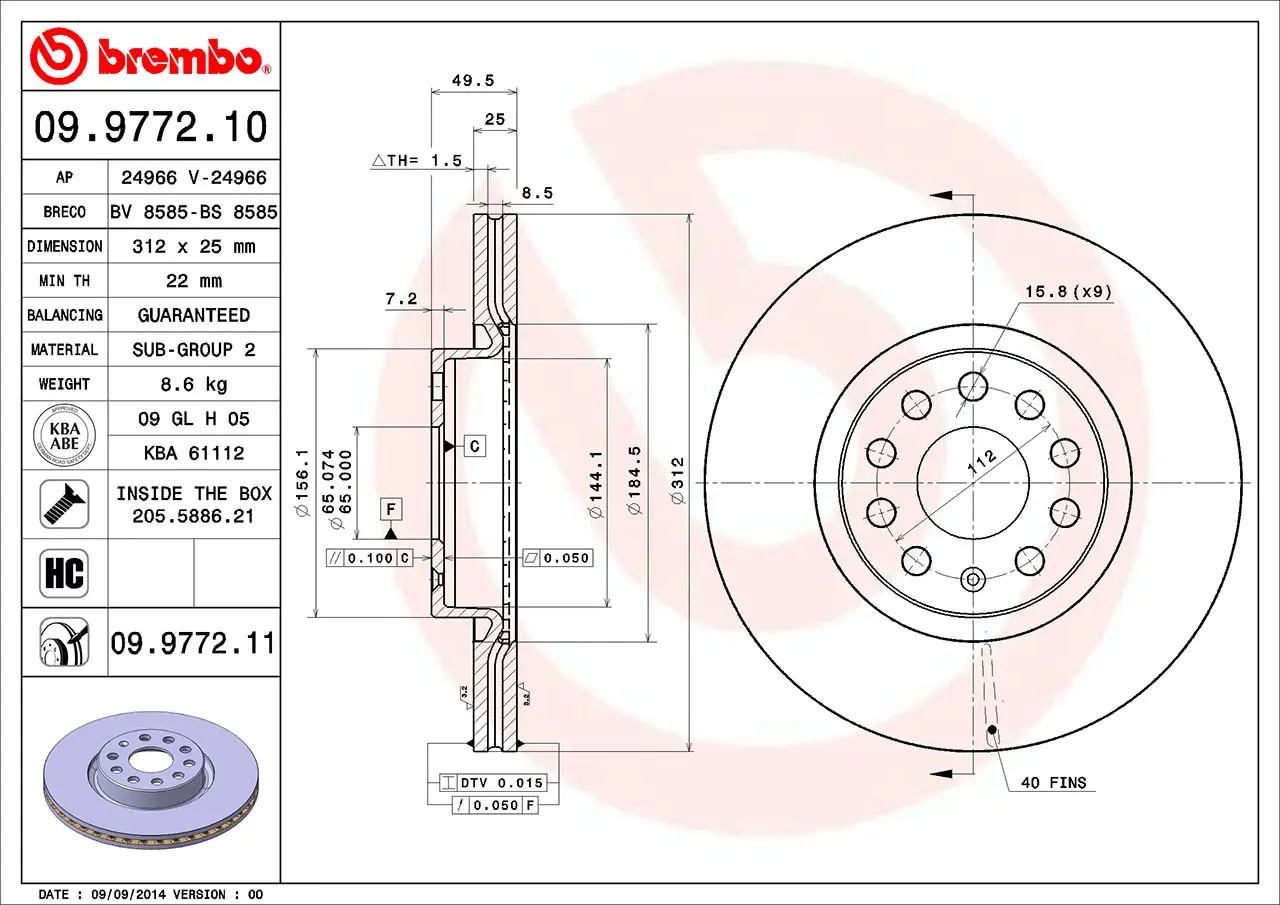

Brembo 09.9772.11 312 mm vented front brake disc

BremboBrake discs

Brembo Brake disc 09.9772.11

312 mm vented front disc for six VW-group models

Art. no.: 09.9772.11
EAN: 8020584018286

312mm

Vented

€76.90excl. VAT

SKU BRE-09977211 · EAN 8020584018286

From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.

Stock

Central warehouse · 135 · Next day

Oslo Alnabru39
Bergen Kokstad12
Trondheim Tiller0
Stockholm Västberga32
Gothenburg Hisings Backa34
Rotterdam Waalhaven20

Brembo Prime 312 mm x 25 mm vented disc for the front axle of the VW Golf VII, Golf VIII, Passat B8, Tiguan II, Skoda Octavia III and Octavia IV. UV-painted hat and edges, 5 holes and a 65 mm centre bore; replace at 22 mm. Sold as a pair, 2 discs per box.

Fits

Vehicles this part is listed for, with position and conditions.

6 vehicles

VehicleEnginekWYearsPositionNote

On the liftSkoda Octavia III (5E)2.0 CRMB 150 hpCRMB110 kW1102014–2020Front axleFor PR code 1ZA or 1ZB. Alternative fitment, not the base-equipment part.
On the liftSkoda Octavia IV (NX)2.0 DTTC 150 hpDTTC110 kW1102020–2024Front axleFor PR code 1ZK, TRW caliper. Cars with PR 1ZE (ATE caliper) take 288 mm 09.9145.11.
On the liftVolkswagen Golf VII (5G)2.0 CRBC 150 hpCRBC110 kW1102013–2020Front axleFor PR code 1LV, 1ZA, 1ZB or 1ZD. 312 mm is the usual size for the 150 hp TDI. Cars with PR 1ZE/1ZP take 288 mm 09.9145.11, PR 1ZF takes 276 mm.
On the liftVolkswagen Golf VIII (CD1)1.5 DFYA 150 hpDFYA110 kW1102020–2024Front axleFor PR code 1ZK or 1ZU. Cars with PR 1ZE take 288 mm 09.9145.11.
On the liftVolkswagen Passat B8 (3G)2.0 DFGA 150 hpDFGA110 kW1102015–2019Front axleFor PR code 1ZA, 1ZD, 1ZK or 1ZL. Base size. PR 1LA takes 340 mm.
On the liftVolkswagen Tiguan II (AD1)2.0 DFGA 150 hpDFGA110 kW1102016–2023Front axleFor PR code 1ZA, 1ZD, 1ZK or 1ZL. Base size. PR 1LW takes 314 mm, PR 1LA 340 mm.

Specifications

Brake disc

Disc type: Vented
Diameter: 312mm
Thickness: 25mm
Minimum thickness: 22mm
Height: 50mm
Centering diameter: 65mm
Number of holes: 5
Coated (anti-corrosion): ✓ Yes
High-carbon cast iron: ✓ Yes
Bolts included: ✓ Yes
Wheel bearing included: — No
Pieces per pack: 2

Technology

Prime line UV-painted discs High-carbon cast iron

Numbers

OE numbers

Vehicle makers’ own part numbers this part replaces.

Maker	OE number
Audi/Skoda/VW	1K0615301AA
VW	561615301
VW	561615301A
VW	561615301B
Audi/VW	5C0615301B
VW	5C0615301E
Audi/Skoda/VW	5N0615301
Audi/Skoda/VW	5Q0615301F
VW	5QM615301A
VW	5QX615301C
Skoda/VW	JZW615301H

Cross-references

Equivalent parts from other brands.

Brand	Art. no.
ATE	24012501581
Bosch	0986479058
febi bilstein	24384
Ferodo	DDF1305
Jurid	562277J
Meyle	1155211094
Mintex	MDC1706
Pagid	54205
Textar	92120500
TRW	DF4464S

Documents

Why this one

312 x 25 mm

Vented disc, 5 holes, 65 mm centre bore, minimum thickness 22 mm.

UV-painted finish

Painted hat and edges keep rust off the hub face and cooling vanes.

High-carbon iron

Extra carbon damps vibration and helps the disc handle heat.

Sold as a pair

Two discs per box, enough for one axle.

On the job

The job it does

OE-equivalent vented disc for the front axle of the VW Golf VII, Golf VIII, Passat B8, Tiguan II, Skoda Octavia III and Octavia IV. New it measures 312 x 25 mm and it must be replaced at 22 mm. The high-carbon iron damps vibration and copes better with heat, which helps against judder.

Fitting it

Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new front pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. Brembo lists a tightening torque of 120 Nm. A brake fluid change is often due at the same visit. Check the PR code on the service sticker before ordering.
