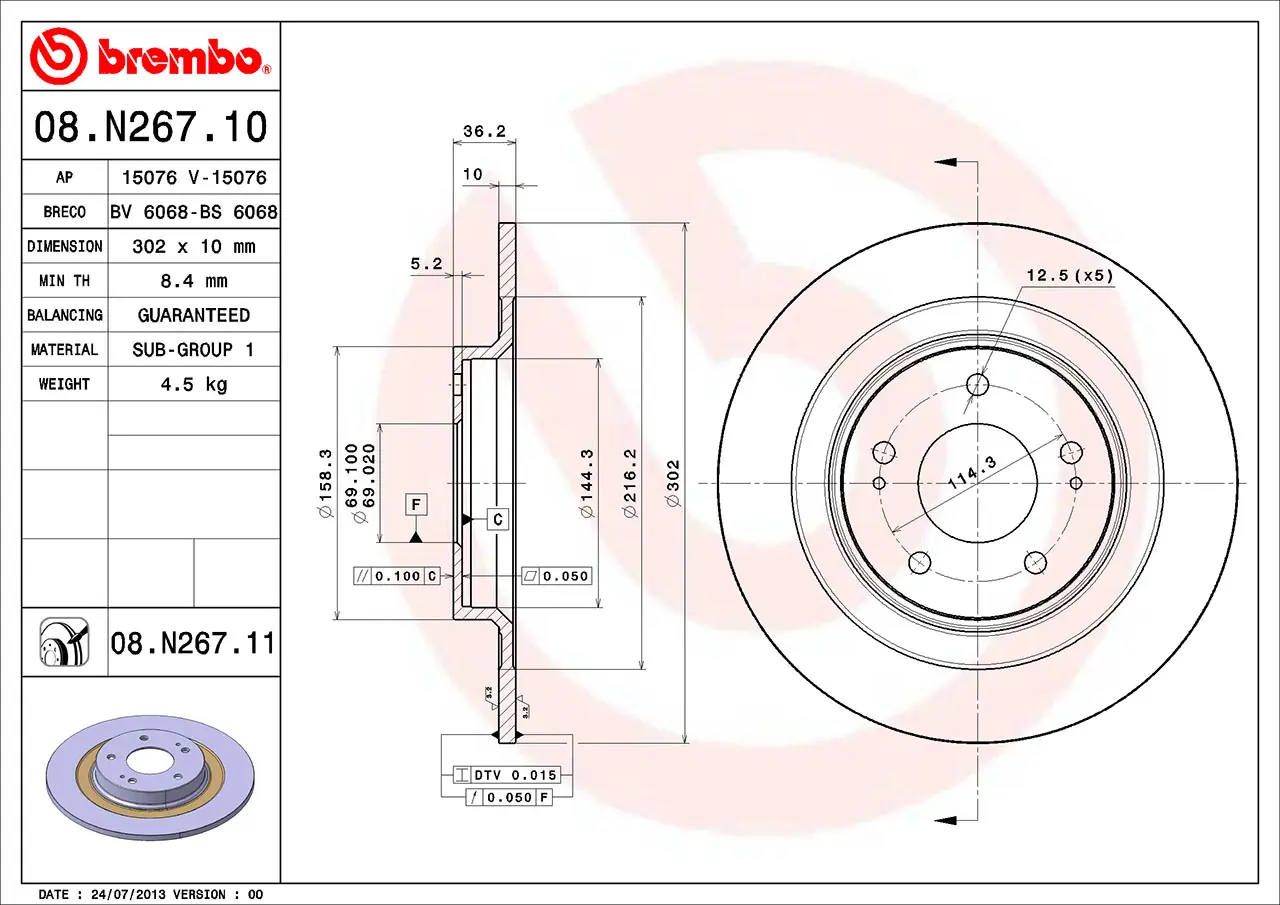

Brembo Brake disc 08.N267.11
302 mm solid rear disc for the Mitsubishi Outlander PHEV
- Art. no.
- 08.N267.11
- EAN
- 8020584233153
- 302mm
- 10mm
- Solid
SKU BRE-08N26711 · EAN 8020584233153
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 94 · Next day
- Oslo Alnabru30
- Bergen Kokstad41
- Trondheim Tiller18
- Stockholm Västberga0
- Gothenburg Hisings Backa31
- Rotterdam Waalhaven27
Specifications
Brake disc
- Disc type
- Solid
- Diameter
- 302mm
- Thickness
- 10mm
- Minimum thickness
- 8.4mm
- Height
- 36mm
- Centering diameter
- 69mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Mitsubishi | 4615A125 |
| Mitsubishi | 4615A142 |
| Mitsubishi | 4615A168 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 24011003951 |
| Bosch | 0986479B04 |
| febi bilstein | 108488 |
| Ferodo | DDF2652C |
| Meyle | 32155210030PD |
| Mintex | MDC2602 |
| Pagid | 55674 |
Why this one
01
302 x 10 mm
Solid disc, 5 holes, 69 mm centre bore, minimum thickness 8.4 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
OE-equivalent solid disc for the rear axle of the Mitsubishi Outlander PHEV. New it measures 302 x 10 mm and it must be replaced at 8.4 mm. The geometry matches the original disc, so no changes are needed at the hub or caliper.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new rear pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. Hybrids brake a lot on regeneration, so discs tend to rust before they wear out; look at the inner face.
