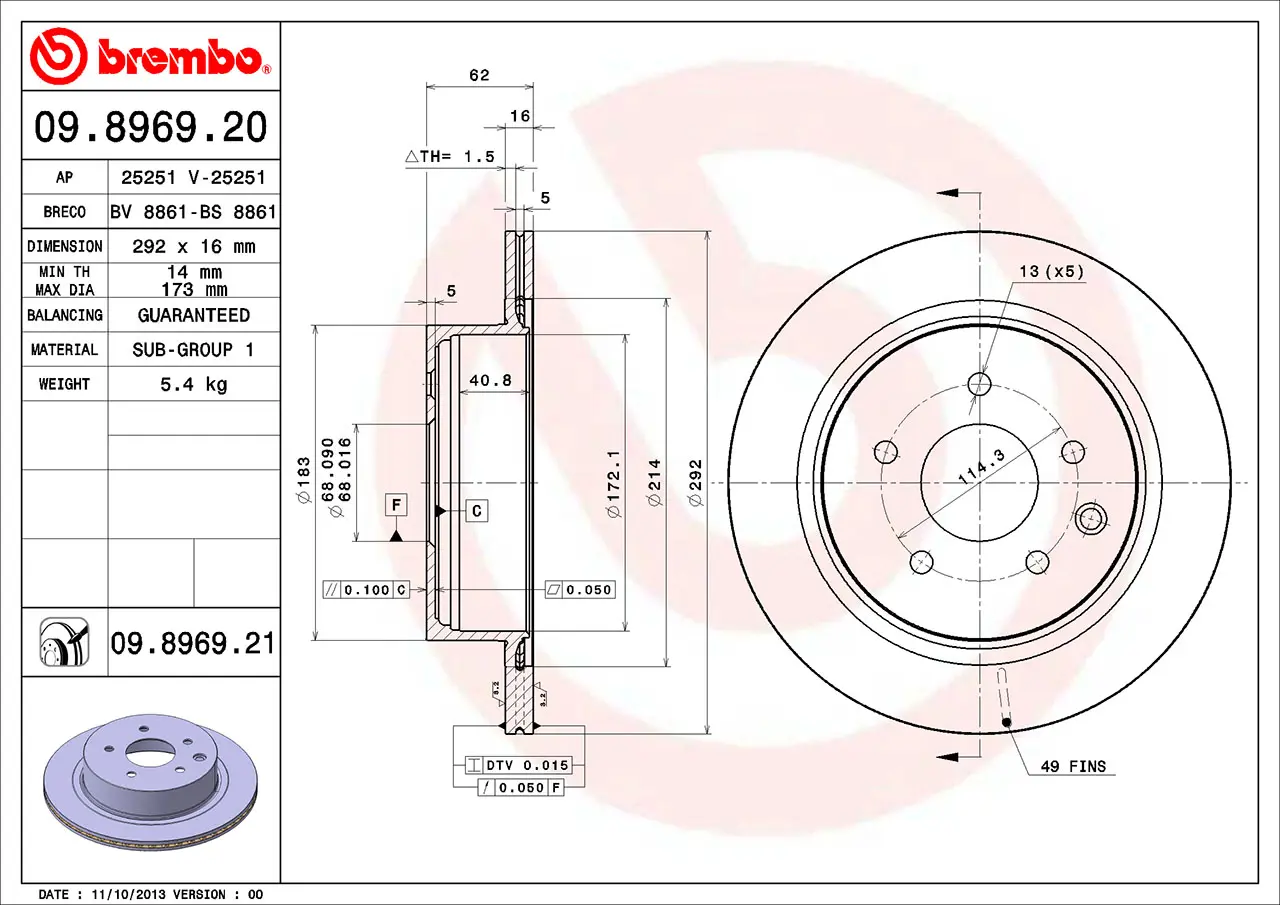

Brembo Brake disc 09.8969.21
292 mm vented rear disc for the Nissan Leaf
- Art. no.
- 09.8969.21
- EAN
- 8020584031605
- 292mm
- 16mm
- Vented
SKU BRE-09896921 · EAN 8020584031605
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 156 · Next day
- Oslo Alnabru40
- Bergen Kokstad20
- Trondheim Tiller36
- Stockholm Västberga39
- Gothenburg Hisings Backa41
- Rotterdam Waalhaven33
Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 292mm
- Thickness
- 16mm
- Minimum thickness
- 14mm
- Height
- 62mm
- Centering diameter
- 68mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Nissan | 43206049VA |
| Nissan | 432063NF0A |
| Nissan | 432063NL0A |
| Nissan | 432063NL0B |
| Nissan | 432064BA0A |
| Nissan | 432064BT0B |
| Nissan | 432064BT0C |
| Nissan | 432065HA0A |
| Nissan | 432068H304 |
| Nissan | 432068H305 |
| Nissan | 432068H700 |
| Nissan | 432068H701 |
Cross-references
Equivalent parts from other brands.
Why this one
01
292 x 16 mm
Vented disc, 5 holes, 68 mm centre bore, minimum thickness 14 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
OE-equivalent vented disc for the rear axle of the Nissan Leaf. New it measures 292 x 16 mm and it must be replaced at 14 mm. The geometry matches the original disc, so no changes are needed at the hub or caliper.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new rear pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. On electric cars the brakes see little use, so check for rust on the friction ring at every service.
