Brembo Brake disc 09.9582.11
294 mm vented rear disc for the VW Transporter T6 2.0 TDI
- Art. no.
- 09.9582.11
- EAN
- 8020584216903
- 294mm
- 22mm
- Vented
SKU BRE-09958211 · EAN 8020584216903
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 181 · Next day
- Oslo Alnabru11
- Bergen Kokstad11
- Trondheim Tiller9
- Stockholm Västberga0
- Gothenburg Hisings Backa23
- Rotterdam Waalhaven15

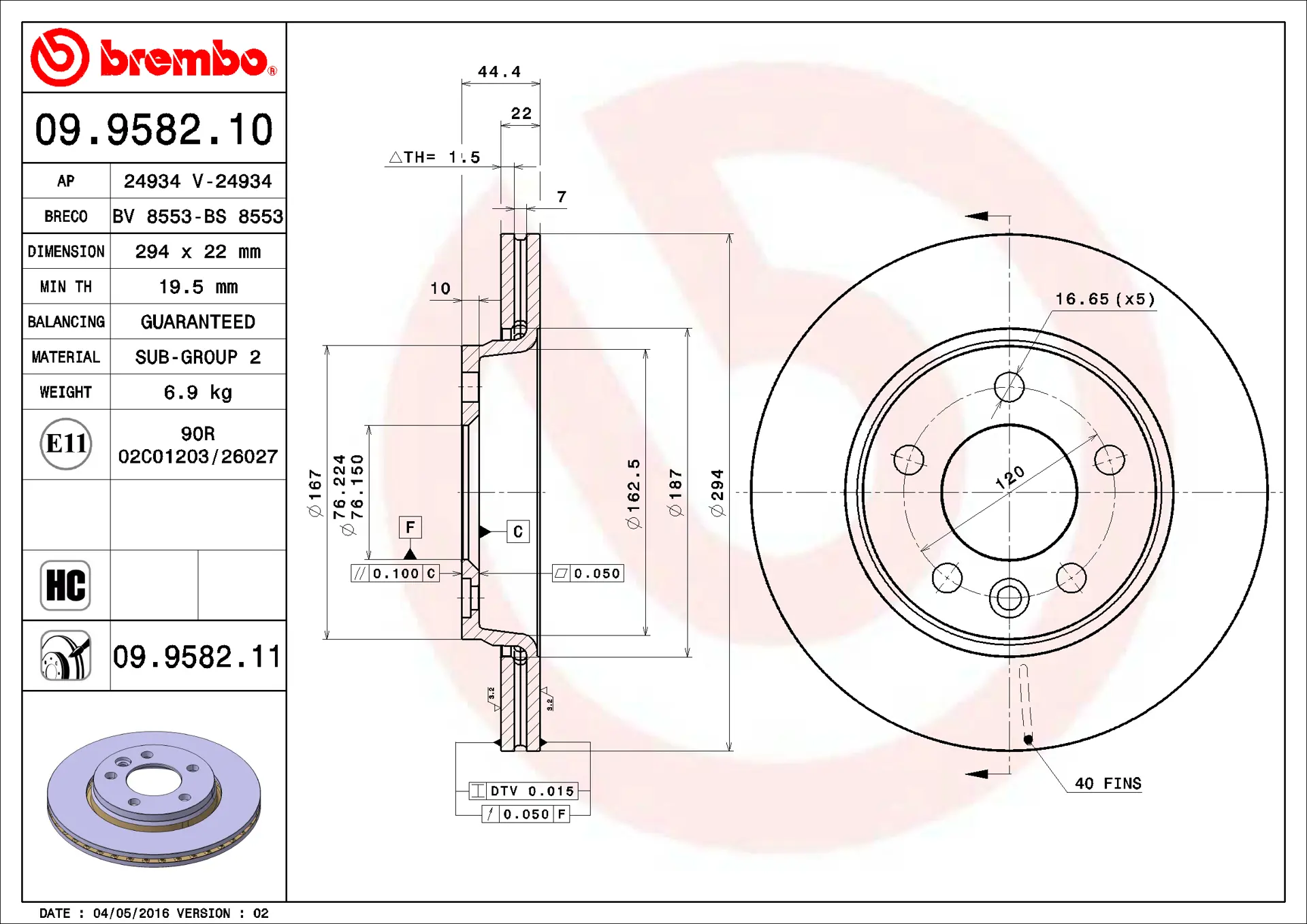

Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 294mm
- Thickness
- 22mm
- Minimum thickness
- 19.5mm
- Height
- 45mm
- Centering diameter
- 76mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- ✓ Yes
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| VW | 7E0615601D |
| VW | 7H0615601B |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 24012202111 |
| Bosch | 0986479097 |
| febi bilstein | 28682 |
| Ferodo | DDF1286 |
| Jurid | 562262J |
| Meyle | 1155230020 |
| Mintex | MDC1708 |
| Pagid | 54214 |
Why this one
01
294 x 22 mm
Vented disc, 5 holes, 76 mm centre bore, minimum thickness 19.5 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
High-carbon iron
Extra carbon damps vibration and helps the disc handle heat.
04
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
OE-equivalent vented disc for the rear axle of the VW Transporter T6 2.0 TDI. New it measures 294 x 22 mm and it must be replaced at 19.5 mm. The high-carbon iron damps vibration and copes better with heat, which helps against judder.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new rear pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. Brembo lists a tightening torque of 170 Nm. A brake fluid change is often due at the same visit.
