Brembo Brake disc 09.A738.11
294 mm vented front disc for the Mitsubishi Outlander PHEV
- Art. no.
- 09.A738.11
- EAN
- 8020584032770
- 294mm
- 24mm
- Vented
SKU BRE-09A73811 · EAN 8020584032770
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 184 · Next day
- Oslo Alnabru14
- Bergen Kokstad22
- Trondheim Tiller29
- Stockholm Västberga24
- Gothenburg Hisings Backa15
- Rotterdam Waalhaven12
Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 294mm
- Thickness
- 24mm
- Minimum thickness
- 22.4mm
- Height
- 46mm
- Centering diameter
- 69mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Mitsubishi | 4615A006 |
| Mitsubishi | 4615A113 |
| Mitsubishi | 4615A179 |
| Mitsubishi | 4615A189 |
| Mitsubishi | 46515A189 |
| Mitsubishi | MR128659 |
| Mitsubishi | MR205215 |
| Mitsubishi | MR307376 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 24012402151 |
| Bosch | 0986479372 |
Why this one
01

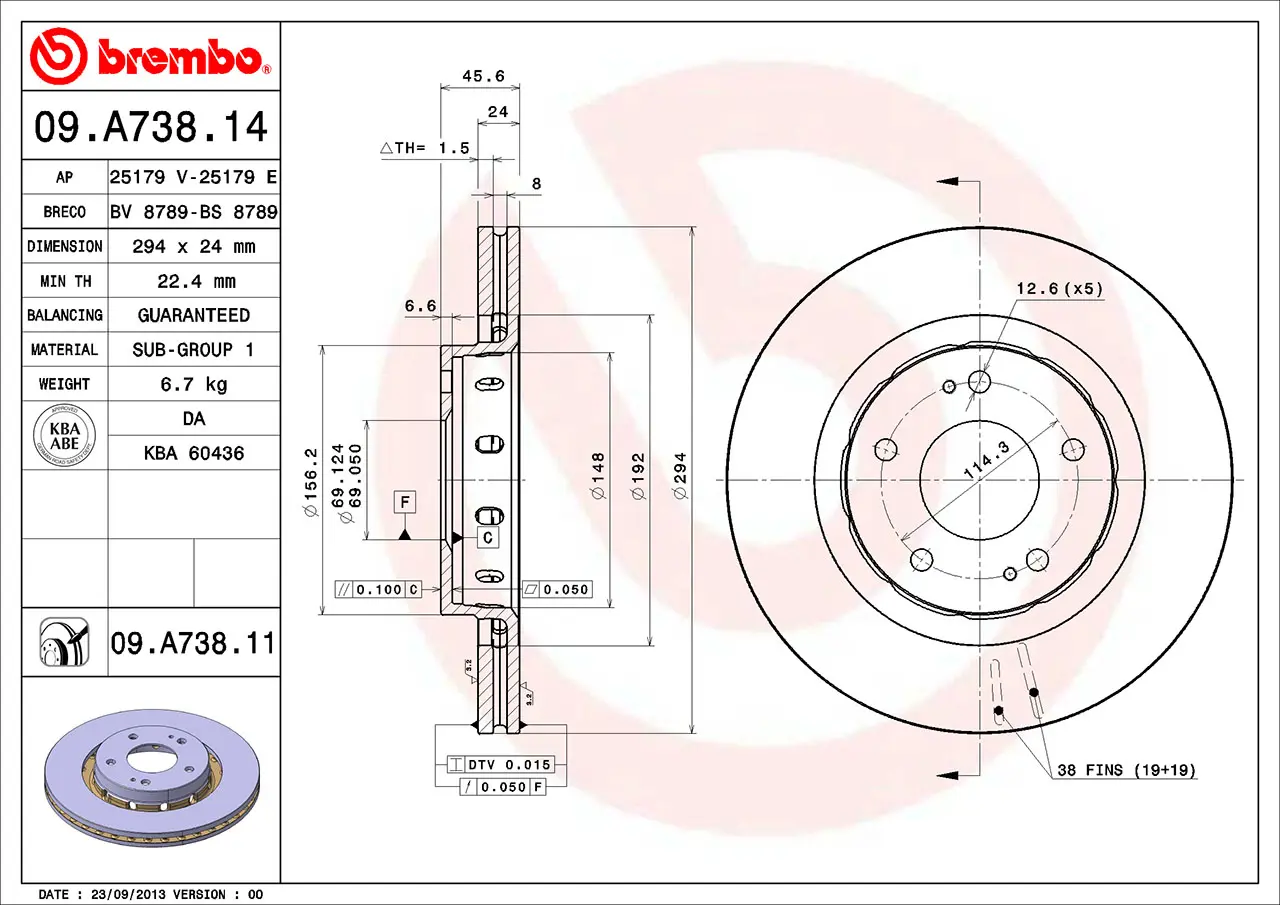

294 x 24 mm
Vented disc, 5 holes, 69 mm centre bore, minimum thickness 22.4 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
OE-equivalent vented disc for the front axle of the Mitsubishi Outlander PHEV. New it measures 294 x 24 mm and it must be replaced at 22.4 mm. The geometry matches the original disc, so no changes are needed at the hub or caliper.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new front pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. Brembo lists a tightening torque of 100 Nm. Hybrids brake a lot on regeneration, so discs tend to rust before they wear out; look at the inner face.
