Brembo Brake disc 09.E229.11
282 mm vented front disc for the Toyota Corolla 1.8 Hybrid
- Art. no.
- 09.E229.11
- EAN
- 8020584317426
- 282mm
- 25mm
- Vented
SKU BRE-09E22911 · EAN 8020584317426
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 94 · Next day
- Oslo Alnabru9
- Bergen Kokstad34
- Trondheim Tiller0
- Stockholm Västberga31
- Gothenburg Hisings Backa32
- Rotterdam Waalhaven23

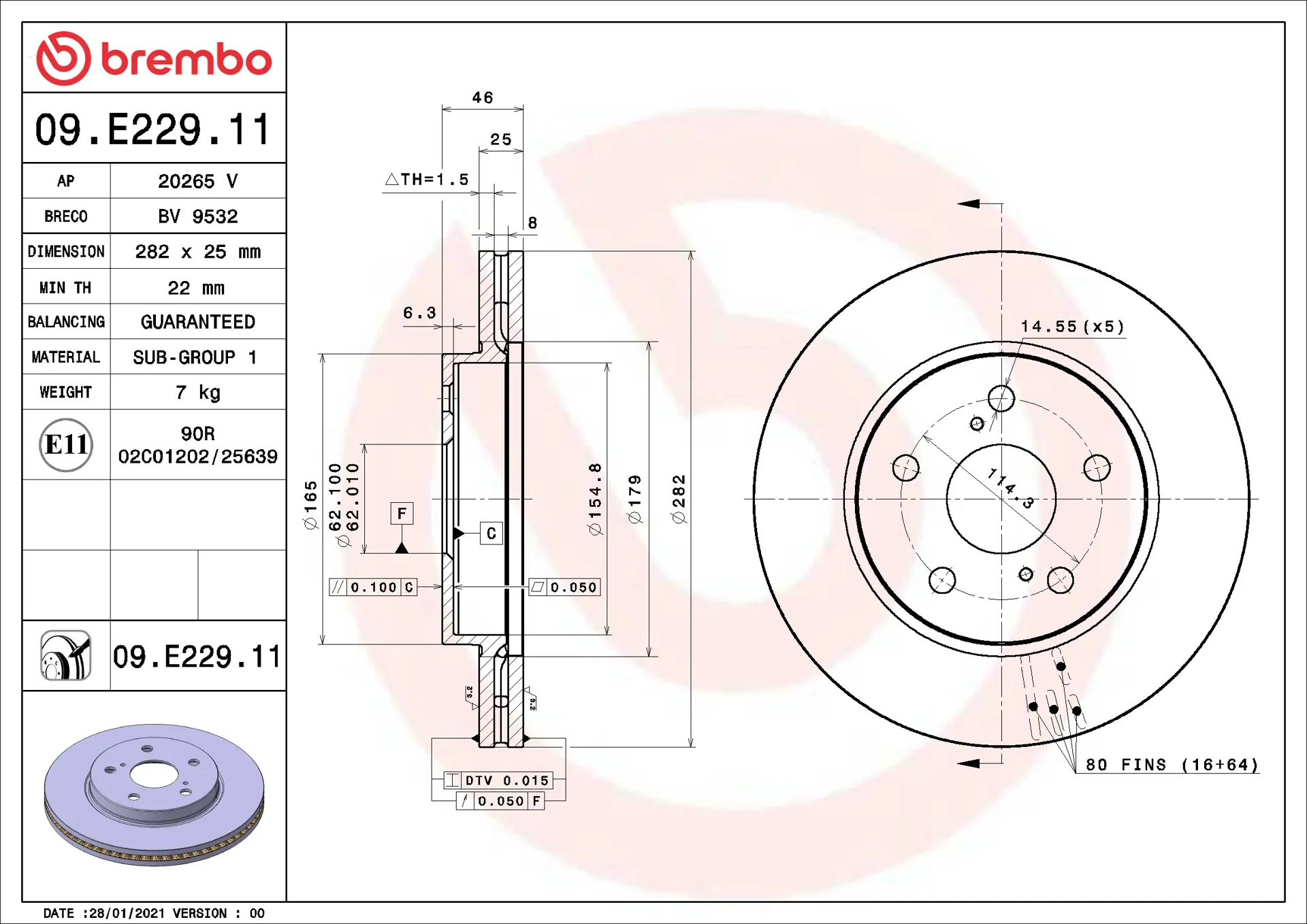

Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 282mm
- Thickness
- 25mm
- Minimum thickness
- 22mm
- Height
- 46mm
- Centering diameter
- 62mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Toyota | 4351202390 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| Bosch | 0986479F92 |
| Meyle | 11835210048PD |
| Mintex | MDC2962C |
| Textar | 92321203 |
| TRW | DF6838 |
| Zimmermann | 590285520 |
| Mintex | MDC3094C |
| Textar | 92341103 |
Why this one
01
282 x 25 mm
Vented disc, 5 holes, 62 mm centre bore, minimum thickness 22 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
OE-equivalent vented disc for the front axle of the Toyota Corolla 1.8 Hybrid. New it measures 282 x 25 mm and it must be replaced at 22 mm. The geometry matches the original disc, so no changes are needed at the hub or caliper.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new front pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. Hybrids brake a lot on regeneration, so discs tend to rust before they wear out; look at the inner face.
