Brembo Brake disc 09.F537.11
335 mm vented rear disc for the Tesla Model Y
- Art. no.
- 09.F537.11
- EAN
- 8020584345078
- 335mm
- 20mm
- Vented
SKU BRE-09F53711 · EAN 8020584345078
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 32 · Next day
- Oslo Alnabru30
- Bergen Kokstad24
- Trondheim Tiller18
- Stockholm Västberga22
- Gothenburg Hisings Backa21
- Rotterdam Waalhaven15

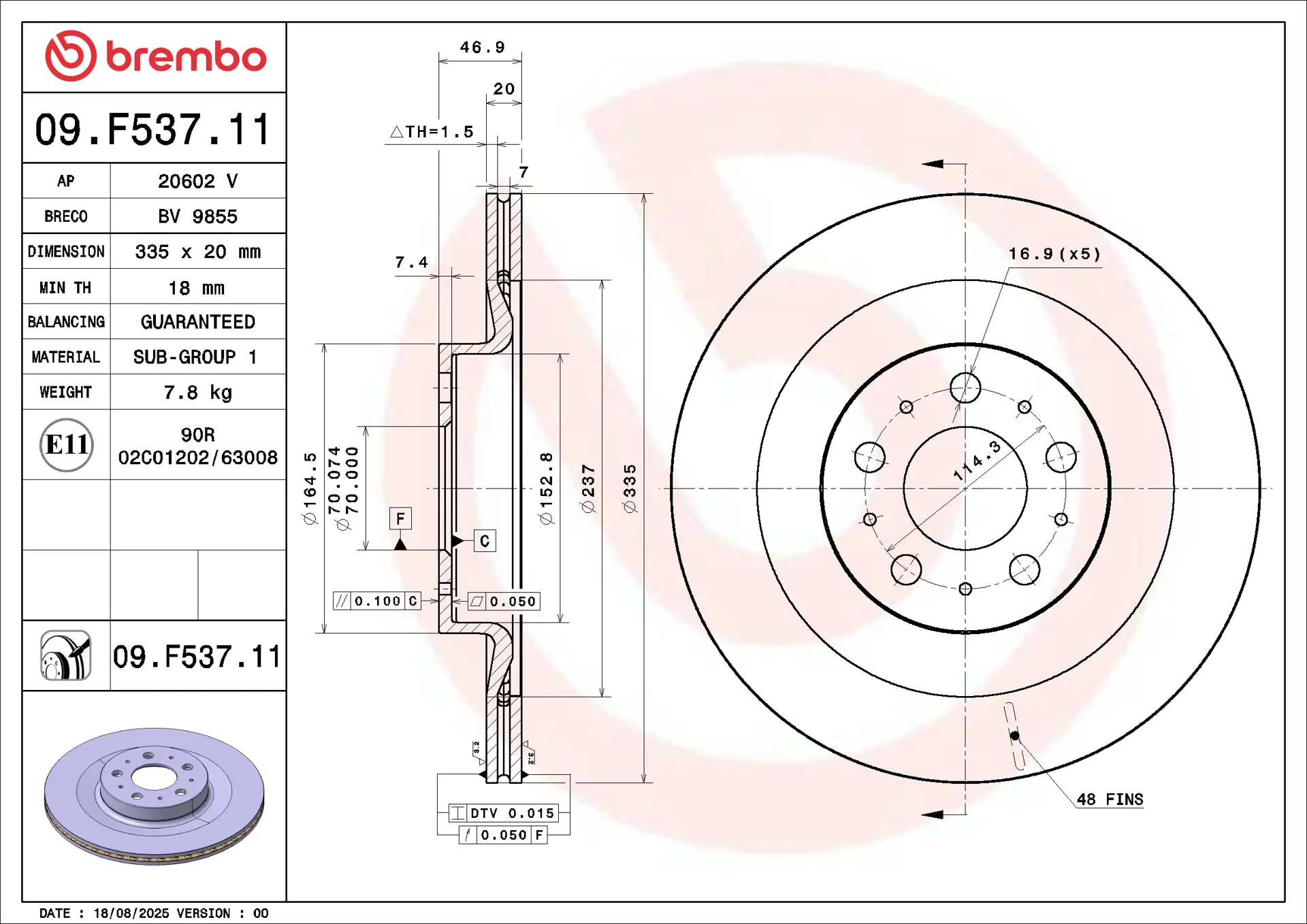

Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 335mm
- Thickness
- 20mm
- Minimum thickness
- 18mm
- Height
- 46.9mm
- Centering diameter
- 70mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Tesla | 118863100A |
| Tesla | 118863699A |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| Bosch | 0986479J78 |
| Textar | 92352403 |
| TRW | DF9019S |
| Zimmermann | 550560420 |
Why this one
01
335 x 20 mm
Vented disc, 5 holes, 70 mm centre bore, minimum thickness 18 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
Sold singly
One disc per box; order two for an axle.
On the job
The job it does
OE-equivalent vented disc for the rear axle of the Tesla Model Y. New it measures 335 x 20 mm and it must be replaced at 18 mm. The geometry matches the original disc, so no changes are needed at the hub or caliper.
Fitting it
Discs are always changed in axle pairs, and this one is packed singly, so order two. Fit new rear pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. On electric cars the brakes see little use, so check for rust on the friction ring at every service.
