Brembo Brake pad set P 24 218
Front pad set for the Ford Focus IV 1.0 EcoBoost
- Art. no.
- P 24 218
- EAN
- 8020584115299
- 155mm
- 17mm
- Acoustic
SKU BRE-P24218 · EAN 8020584115299
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 148 · Next day
- Oslo Alnabru16
- Bergen Kokstad33
- Trondheim Tiller36
- Stockholm Västberga8
- Gothenburg Hisings Backa29
- Rotterdam Waalhaven36

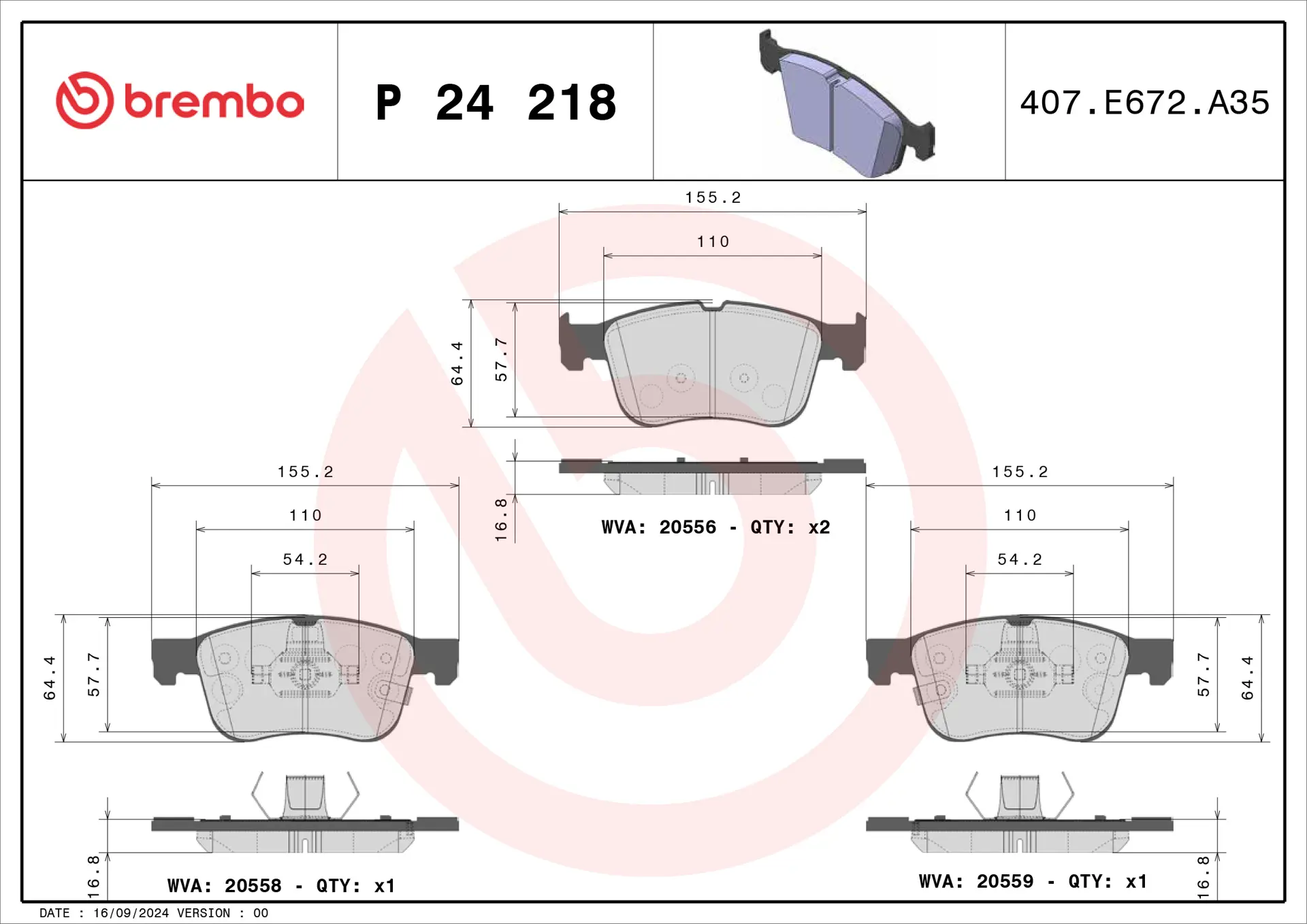

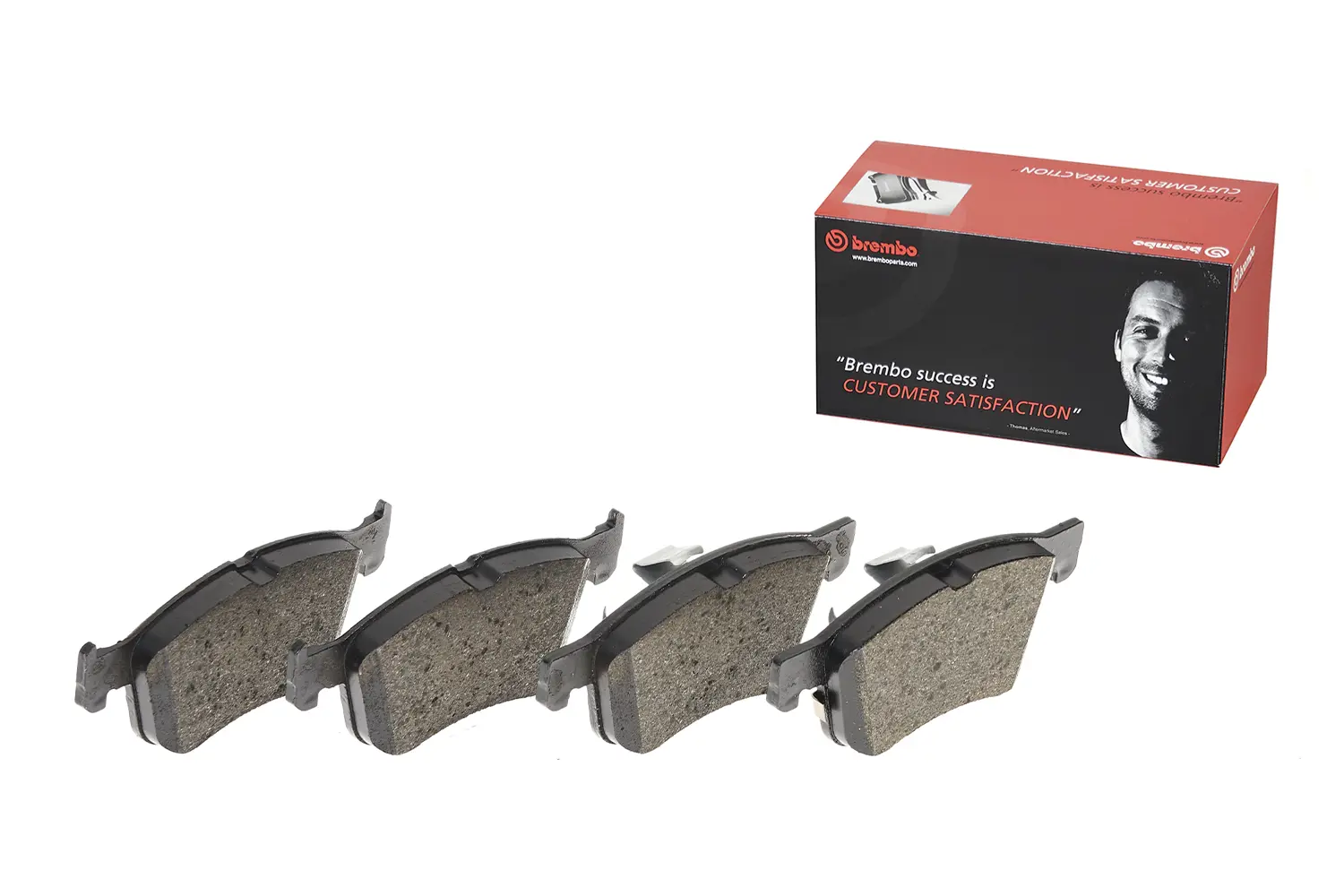

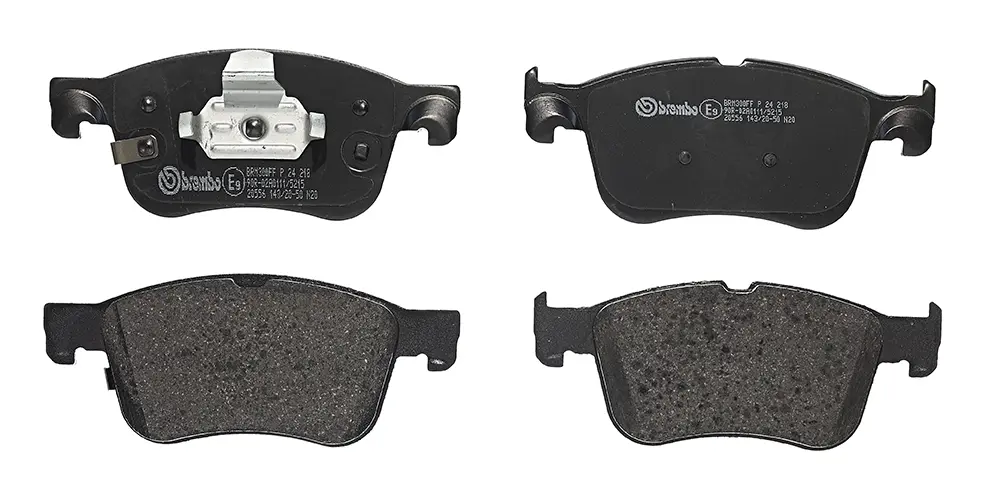

Brembo Prime front pad set for the Ford Focus IV 1.0 EcoBoost, 155 x 64 x 17 mm for the ATE caliper. It is supplied with an acoustic wear warning, and the box holds anti-squeal shims, fitting accessories and a piston clip.
Fits
Vehicles this part is listed for, with position and conditions.
1 vehicle
- Ford Focus IV (HN)1.0 B7DA 125 hpB7DA92 kW922018–2024Front axle
Specifications
Brake pads
- Width
- 155mm
- Height
- 64mm
- Thickness
- 17mm
- Wear indicator
- Acoustic
- WVA number
- 20559, 20558, 20556
- FMSI number
- D2300 9536
- Fitting kit included
- ✓ Yes
- Chamfered / slotted
- — No
- Anti-squeal shims
- ✓ Yes
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Ford | 2209149 |
| Ford | 2210416 |
| Ford | 2314163 |
| Ford | 2530140 |
| Ford | 2545385 |
| Ford | 2580321 |
| Ford | BRF2013 |
| Ford | JX6Z2001J |
| Ford | KTJX612K021AEA |
| Ford | KTJX612K021AEB |
| Ford | KTJX612K021AEC |
| Ford | KTJX612K021CEA |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 13046073472 |
| Bosch | 0986424885 |
| febi bilstein | 172179 |
| Ferodo | FDB4849 |
| Hella Pagid | 355039421 |
| Jurid | 573834J |
| Meyle | 0252055617 |
| Mintex | MDB4170 |
| Pagid | T2831 |
| ATE | 607347 |
Why this one
01
155x64x17 mm
Fits the ATE caliper, WVA 20559.
02
Wear indicator
With an acoustic wear warning.
03
Hardware included
Anti-squeal shims, fitting accessories and a piston clip in the box.
04
ECE R90 approved
Prime friction material matched to the original pad for bite and wear.
On the job
The job it does
A complete front axle set for the Ford Focus IV 1.0 EcoBoost. The pads measure 155 x 64 mm and are 17 mm thick, made to fit the ATE caliper, and the friction material is ECE R90 approved and matched to the original for bite and wear. The box includes anti-squeal shims, fitting accessories and a piston clip, so worn hardware does not go back on.
Fitting it
Measure the discs while the wheels are off; if they are near the minimum thickness, replace them with the pads. A spring tab on the pad squeals against the disc when the lining gets thin. Clean and grease the caliper guides, push the piston back gently and bed the pads in with a few moderate stops.
