Brembo Brake pad set P 83 102
Front pad set for the Toyota Hilux 2.4 D
- Art. no.
- P 83 102
- EAN
- 8020584062401
- 135mm
- 17mm
- Acoustic
SKU BRE-P83102 · EAN 8020584062401
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 132 · Next day
- Oslo Alnabru22
- Bergen Kokstad0
- Trondheim Tiller30
- Stockholm Västberga12
- Gothenburg Hisings Backa18
- Rotterdam Waalhaven38

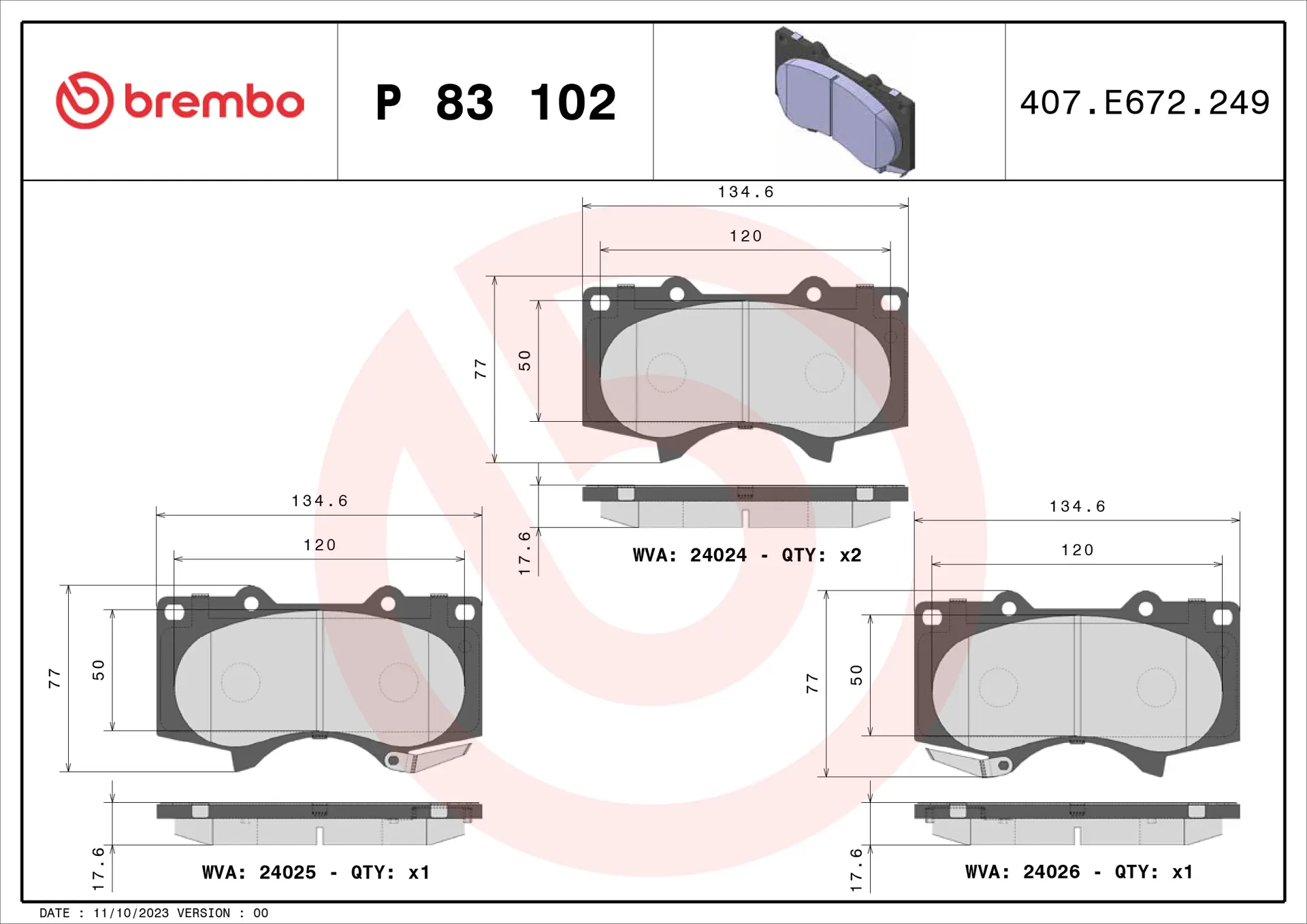

Brembo Prime front pad set for the Toyota Hilux 2.4 D, 135 x 77 x 17 mm for the Sumitomo caliper. It is supplied with an acoustic wear warning, and the box holds anti-squeal shims.
Fits
Vehicles this part is listed for, with position and conditions.
1 vehicle
- Toyota Hilux VIII (AN120)2.4 2GD-FTV 150 hp2GD-FTV110 kW1102015–2024Front axleFor cars with ESP (Brembo cites type code GGN125R-DTTMKQ). European Hilux has stability control (VSC) as standard, but compare with the old pads. Cars without ESP take P 83 167.
Specifications
Brake pads
- Width
- 135mm
- Height
- 77mm
- Thickness
- 17mm
- Wear indicator
- Acoustic
- WVA number
- 24024, 24025, 24026
- FMSI number
- D976 7877, D976 9216
- Fitting kit included
- — No
- Chamfered / slotted
- — No
- Anti-squeal shims
- ✓ Yes
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Toyota | 0446502630 |
| Toyota | 0446504090 |
| Toyota | 044650K280 |
| Toyota | 044650K360 |
| Toyota | 044650K370 |
| Toyota | 044650K390 |
| Toyota | 044650K391 |
| Toyota | 044650K400 |
| Toyota | 044650K401 |
| Toyota | 044650K410 |
| Toyota | 044650K580 |
| Toyota | 044650K590 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 13046057472 |
| Bosch | 0986494153 |
| Ferodo | FDB1698 |
| Hella Pagid | 355014121 |
| Jurid | 572515J |
| Meyle | MBP0505 |
| Mintex | MDB2553MX |
| Pagid | T1795 |
| ATE | 605747 |
| Bosch | 098650A247 |
Why this one
01
135x77x17 mm
Fits the Sumitomo caliper, WVA 24024.
02
Wear indicator
With an acoustic wear warning.
03
Hardware included
Anti-squeal shims in the box.
04
ECE R90 approved
Prime friction material matched to the original pad for bite and wear.
On the job
The job it does
A complete front axle set for the Toyota Hilux 2.4 D. The pads measure 135 x 77 mm and are 17 mm thick, made to fit the Sumitomo caliper, and the friction material is ECE R90 approved and matched to the original for bite and wear. The box includes anti-squeal shims, so worn hardware does not go back on.
Fitting it
Measure the discs while the wheels are off; if they are near the minimum thickness, replace them with the pads. A spring tab on the pad squeals against the disc when the lining gets thin. Clean and grease the caliper guides, push the piston back gently and bed the pads in with a few moderate stops.
