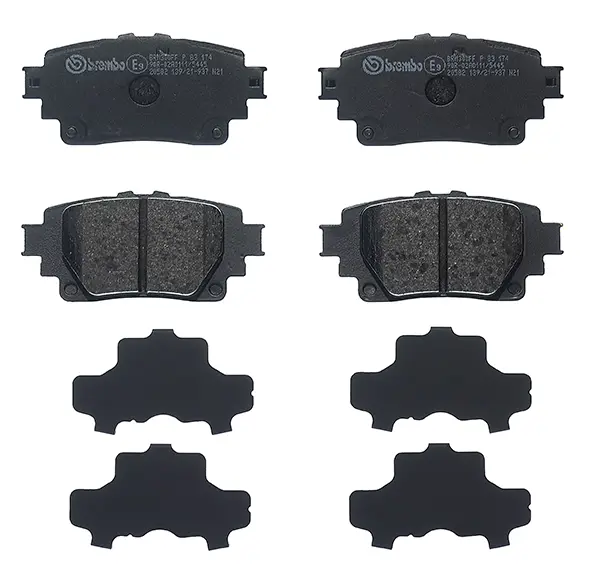

Brembo Brake pad set P 83 174
Rear pad set for the Toyota RAV4 2.5 Hybrid
- Art. no.
- P 83 174
- EAN
- 8020584117460
- 104mm
- 15mm
SKU BRE-P83174 · EAN 8020584117460
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 159 · Next day
- Oslo Alnabru24
- Bergen Kokstad25
- Trondheim Tiller24
- Stockholm Västberga8
- Gothenburg Hisings Backa19
- Rotterdam Waalhaven20
Specifications
Brake pads
- Width
- 104mm
- Height
- 48mm
- Thickness
- 15mm
- Wear indicator
- None
- WVA number
- 26245, 20582
- FMSI number
- D2183 9427, D2305 9540
- Fitting kit included
- — No
- Chamfered / slotted
- — No
- Anti-squeal shims
- ✓ Yes
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Toyota | 0446602390 |
| Toyota | 0446602430 |
| Toyota | 0446602460 |
| Toyota | 0446612160 |
| Toyota | 0446612161 |
| Toyota | 0446612162 |
| Toyota | 0446628160 |
| Toyota | 0446630360 |
| Toyota | 0446630370 |
| Toyota | 0446642090 |
| Toyota | 0446652210 |
| Toyota | 04466F4020 |
Cross-references
Equivalent parts from other brands.
Why this one
01
104x48x15 mm
Fits the Akebono caliper, WVA 26245.
02
Wear indicator
Without a wear indicator.
03
Hardware included
Anti-squeal shims in the box.
04
ECE R90 approved
Prime friction material matched to the original pad for bite and wear.
On the job
The job it does

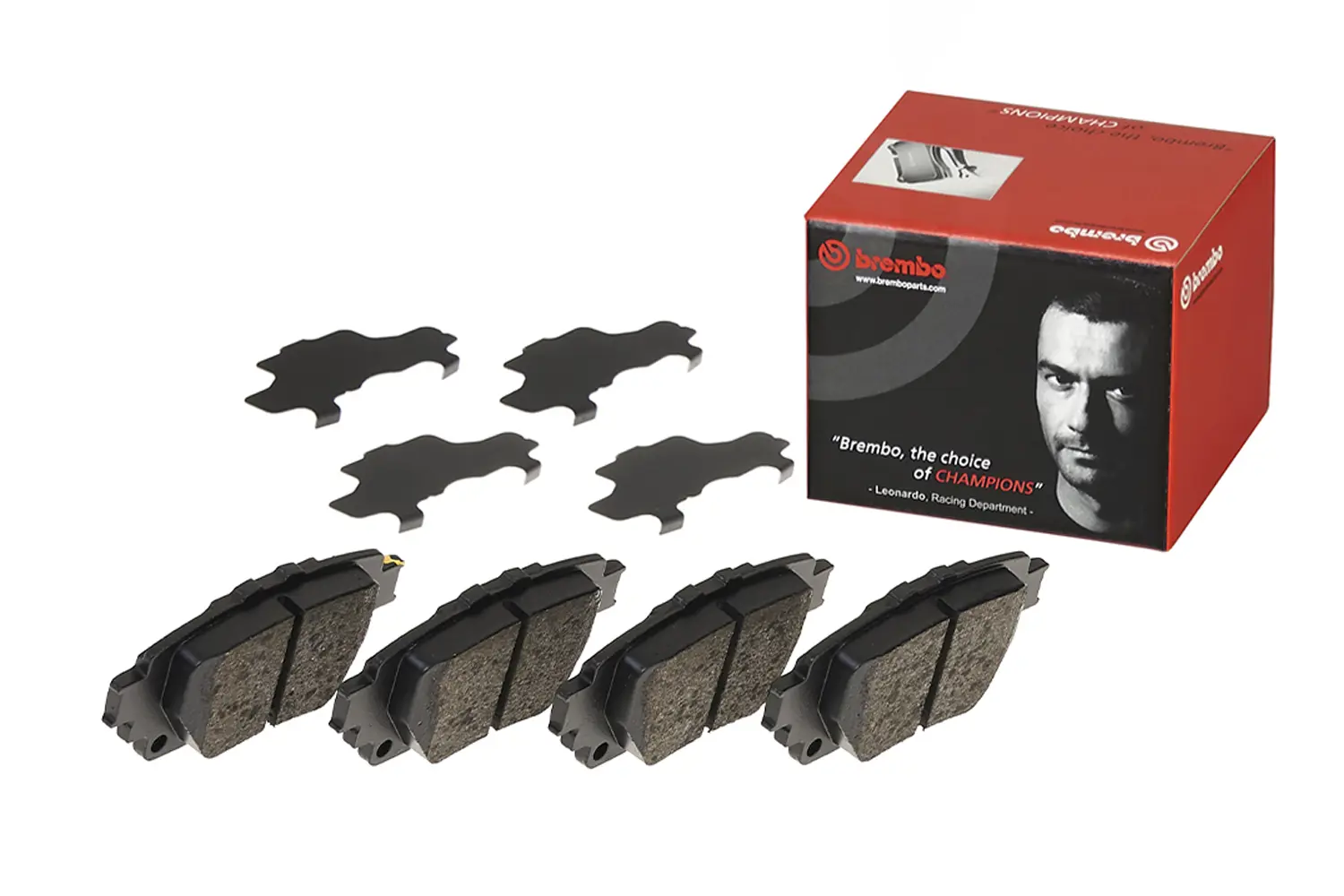

A complete rear axle set for the Toyota RAV4 2.5 Hybrid. The pads measure 104 x 48 mm and are 15 mm thick, made to fit the Akebono caliper, and the friction material is ECE R90 approved and matched to the original for bite and wear. The box includes anti-squeal shims, so worn hardware does not go back on.
Fitting it
Measure the discs while the wheels are off; if they are near the minimum thickness, replace them with the pads. There is no wear indicator, so check the lining thickness at every service. Clean and grease the caliper guides, push the piston back gently and bed the pads in with a few moderate stops.
