Brembo Brake disc 09.E126.11
328 mm vented front disc for the Toyota RAV4 2.5 Hybrid
- Art. no.
- 09.E126.11
- EAN
- 8020584313527
- 328mm
- 28mm
- Vented
SKU BRE-09E12611 · EAN 8020584313527
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 182 · Next day
- Oslo Alnabru20
- Bergen Kokstad13
- Trondheim Tiller23
- Stockholm Västberga14
- Gothenburg Hisings Backa21
- Rotterdam Waalhaven40
Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 328mm
- Thickness
- 28mm
- Minimum thickness
- 25mm
- Height
- 49mm
- Centering diameter
- 62mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Toyota | 4351248130 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| Bosch | 0986479T00 |
| febi bilstein | 108464 |
| Meyle | 30155210130PD |
| Mintex | MDC2629 |
| Textar | 92259405 |
| TRW | DF8250S |
| Zimmermann | 590283420 |
| Textar | 92341503 |
| Zimmermann | 590283452 |
Why this one
01

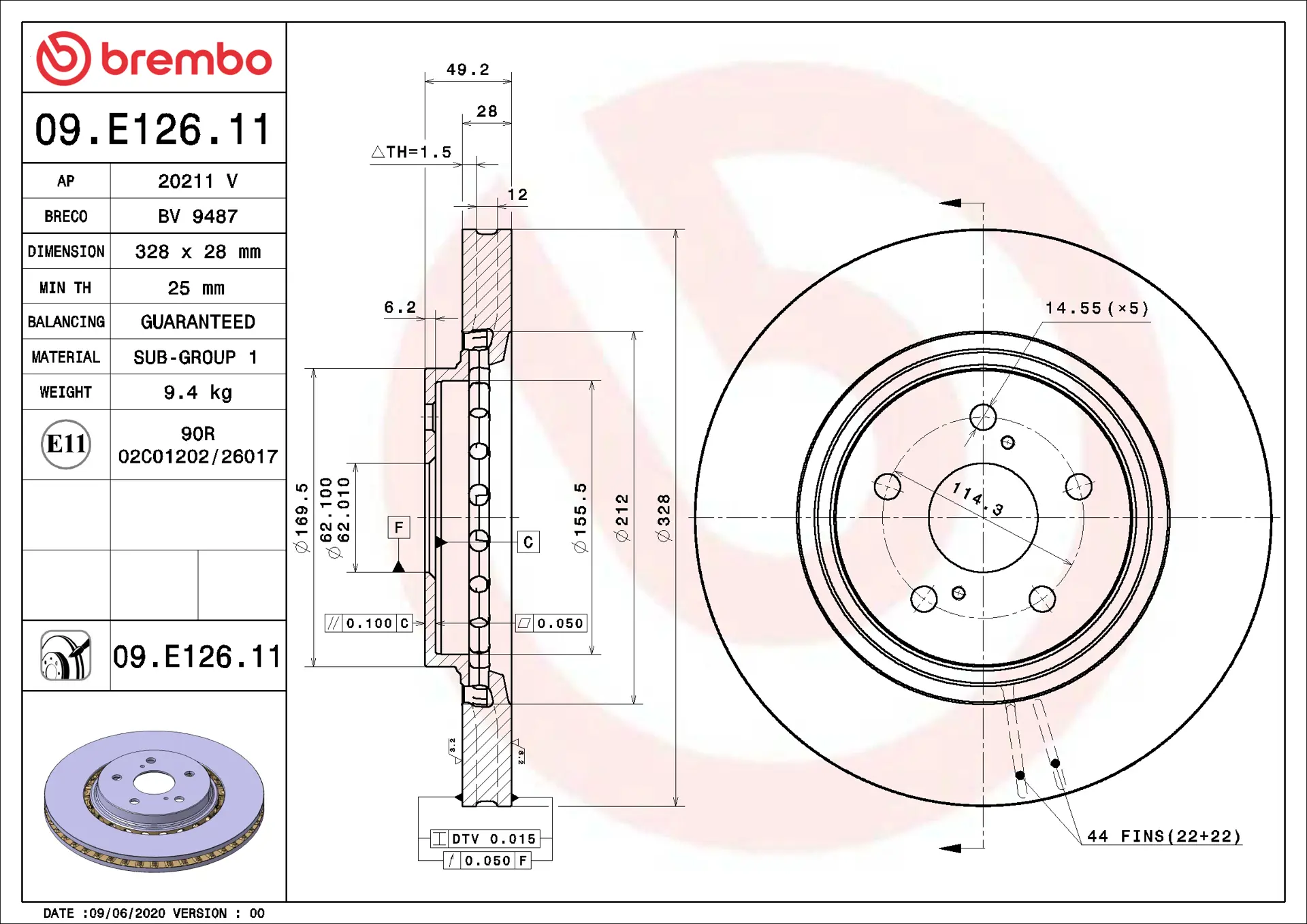

328 x 28 mm
Vented disc, 5 holes, 62 mm centre bore, minimum thickness 25 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
Sold singly
One disc per box; order two for an axle.
On the job
The job it does
OE-equivalent vented disc for the front axle of the Toyota RAV4 2.5 Hybrid. New it measures 328 x 28 mm and it must be replaced at 25 mm. The geometry matches the original disc, so no changes are needed at the hub or caliper.
Fitting it
Discs are always changed in axle pairs, and this one is packed singly, so order two. Fit new front pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. Hybrids brake a lot on regeneration, so discs tend to rust before they wear out; look at the inner face.
