Brembo Brake pad set P 86 030
Rear pad set for the Volvo XC60 D4
- Art. no.
- P 86 030
- EAN
- 8020584087152
- 122mm
- 16mm
- Prepared for sensor
SKU BRE-P86030 · EAN 8020584087152
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 176 · Next day
- Oslo Alnabru14
- Bergen Kokstad27
- Trondheim Tiller41
- Stockholm Västberga27
- Gothenburg Hisings Backa0
- Rotterdam Waalhaven23

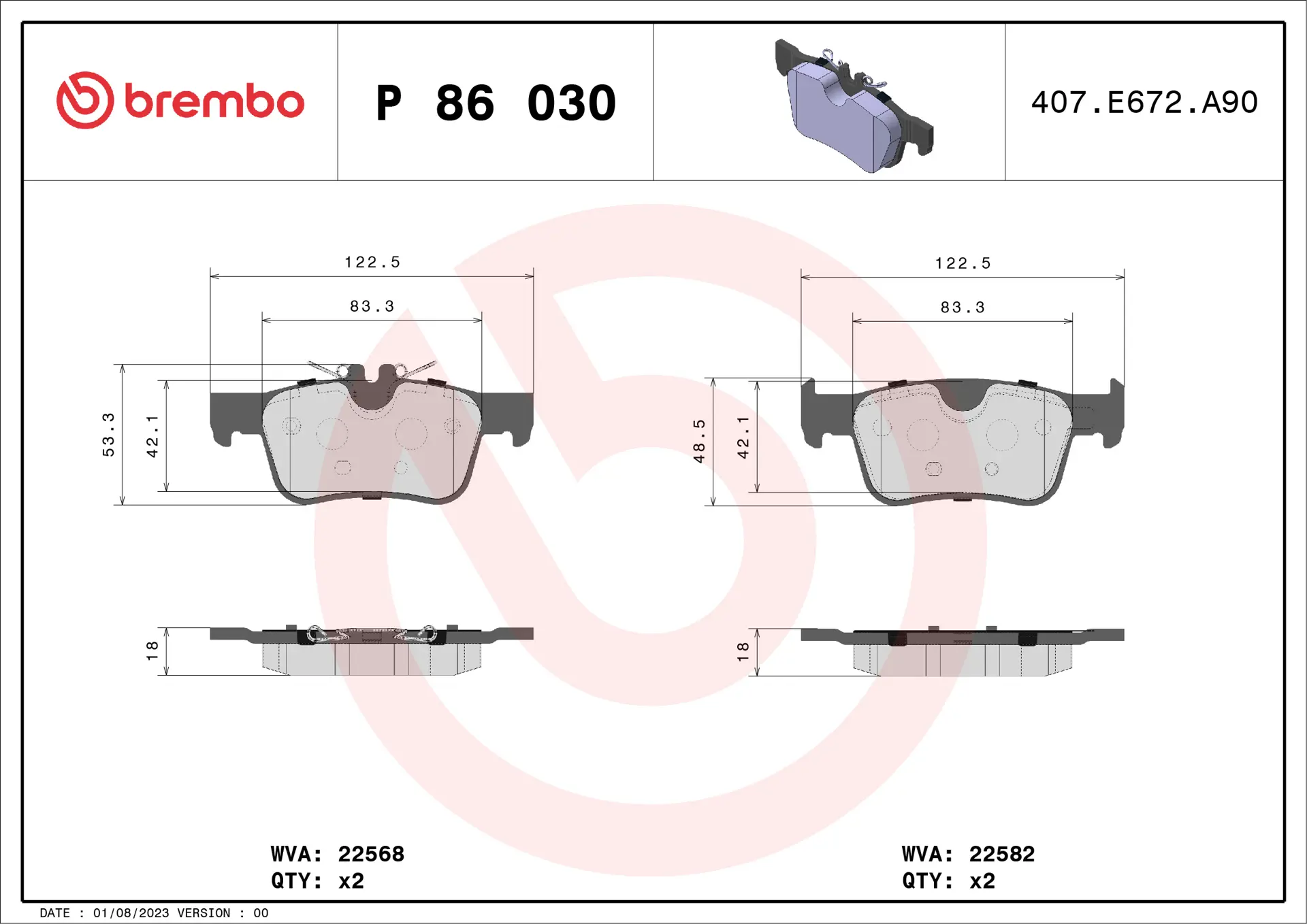

Specifications
Brake pads
- Width
- 122mm
- Height
- 49mm
- Thickness
- 16mm
- Wear indicator
- Prepared for sensor
- WVA number
- 22568, 22582
- FMSI number
- D1938 9163
- Fitting kit included
- — No
- Chamfered / slotted
- — No
- Anti-squeal shims
- ✓ Yes
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Volvo | 31423653 |
| Volvo | 31423654 |
| Volvo | 31665837 |
| Volvo | 316658370 |
| Volvo | 31687502 |
| Volvo | 316875020 |
| Volvo | 322874300 |
| Volvo | 322874310 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 13046073372 |
| Bosch | 0986424802 |
Why this one
01
122x49x16 mm
Fits the Teves caliper, WVA 22568.
02
Wear indicator
Prepared for a wear sensor.
03
Hardware included
Anti-squeal shims in the box.
04
ECE R90 approved
Prime friction material matched to the original pad for bite and wear.
On the job
The job it does
A complete rear axle set for the Volvo XC60 D4. The pads measure 122 x 49 mm and are 16 mm thick, made to fit the Teves caliper, and the friction material is ECE R90 approved and matched to the original for bite and wear. The box includes anti-squeal shims, so worn hardware does not go back on.
Fitting it
Measure the discs while the wheels are off; if they are near the minimum thickness, replace them with the pads. The backing plates take a wear sensor, which is ordered separately, so check the old one. Clean and grease the caliper guides, push the piston back gently and bed the pads in with a few moderate stops.
