Brembo Brake pad set P 86 031
Front pad set for the Volvo XC40 T4 Recharge
- Art. no.
- P 86 031
- EAN
- 8020584115572
- 140mm
- 19mm
SKU BRE-P86031 · EAN 8020584115572
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 117 · Next day
- Oslo Alnabru19
- Bergen Kokstad35
- Trondheim Tiller18
- Stockholm Västberga22
- Gothenburg Hisings Backa26
- Rotterdam Waalhaven35

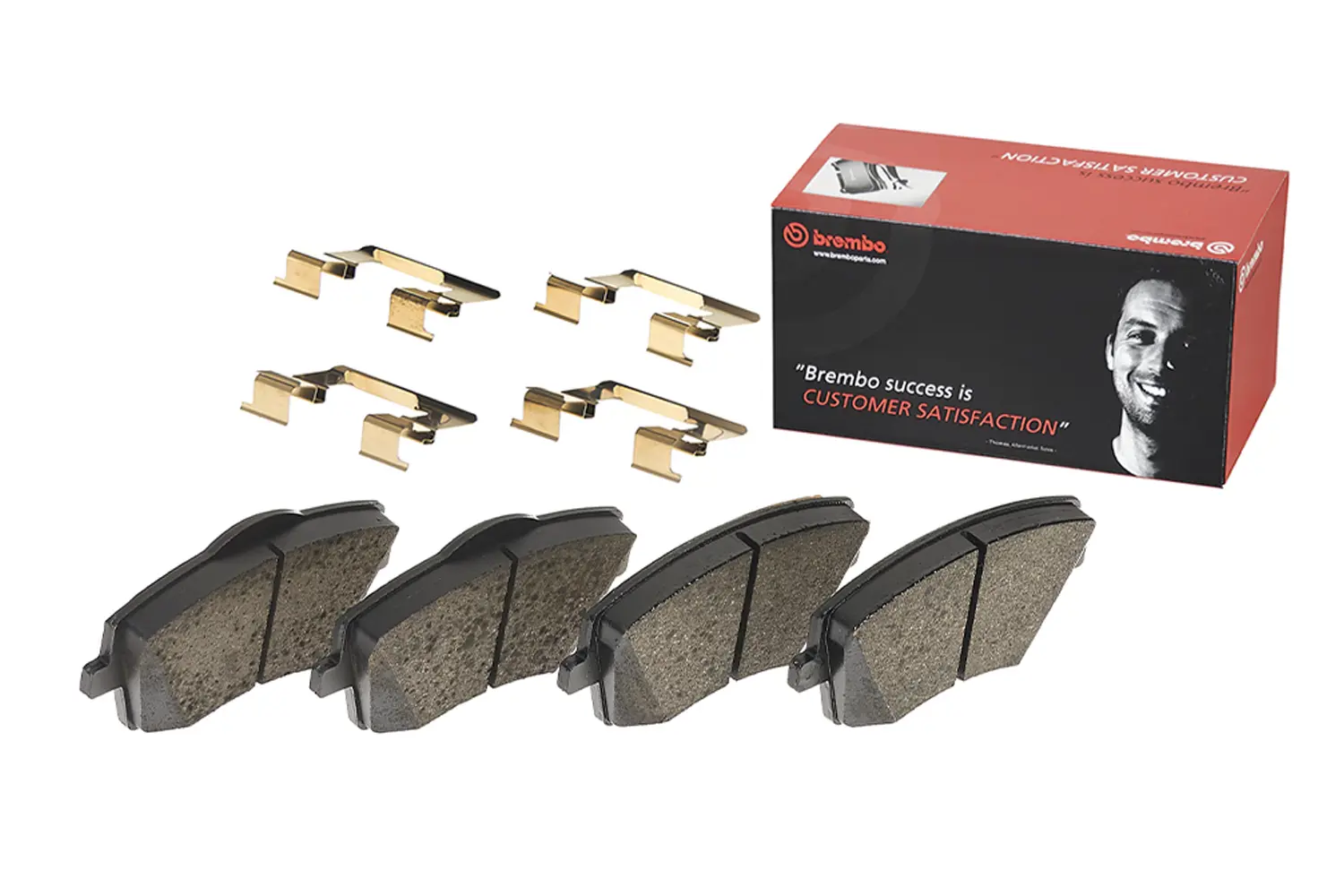

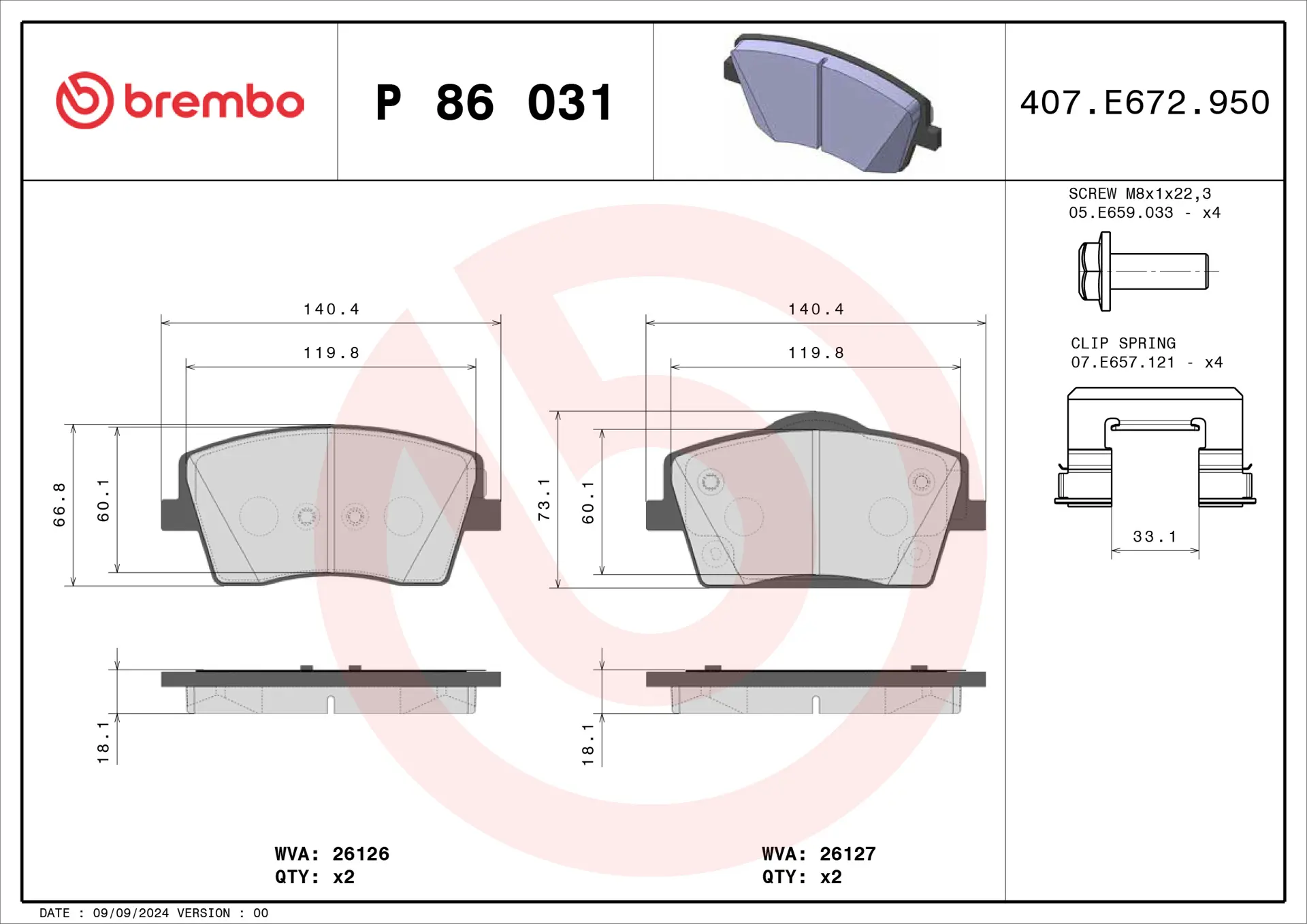

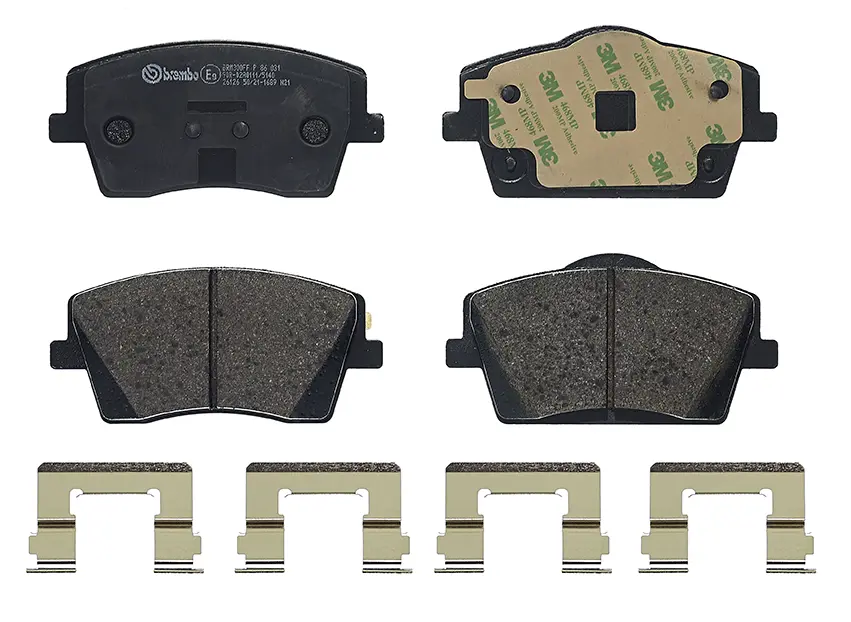

Brembo Prime front pad set for the Volvo XC40 T4 Recharge, 140 x 67 x 19 mm. It is supplied without a wear indicator, and the box holds anti-squeal shims and fitting accessories.
Fits
Vehicles this part is listed for, with position and conditions.
1 vehicle
- Volvo XC40 5361.5 B3154T10 129 hpB3154T1095 kW952020–2024Front axleFor 17-inch brakes.
Specifications
Brake pads
- Width
- 140mm
- Height
- 67mm
- Thickness
- 19mm
- Wear indicator
- None
- WVA number
- 26127, 26126
- FMSI number
- D2137 9374
- Fitting kit included
- ✓ Yes
- Chamfered / slotted
- — No
- Anti-squeal shims
- ✓ Yes
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Volvo | 31471407 |
| Volvo | 314714070 |
| Volvo | 31471408 |
| Volvo | 314714080 |
| Volvo | 32276931 |
| Volvo | 322769310 |
| Volvo | 32329535 |
| Volvo | 323295350 |
| Volvo | 32329536 |
| Volvo | 323295360 |
| Volvo | 80011381 |
| Volvo | 800113810 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 13046055202 |
| Bosch | 0986460144 |
| febi bilstein | 16982 |
| Ferodo | FDB5277 |
| Hella Pagid | 355039001 |
| Jurid | 574017J |
| Meyle | 0252612618PD |
| Mintex | MDB4147 |
| Pagid | T3177 |
| Textar | 2612601 |
Why this one
01
140x67x19 mm
Complete set for one axle, WVA 26127.
02
Wear indicator
Without a wear indicator.
03
Hardware included
Anti-squeal shims and fitting accessories in the box.
04
ECE R90 approved
Prime friction material matched to the original pad for bite and wear.
On the job
The job it does
A complete front axle set for the Volvo XC40 T4 Recharge. The pads measure 140 x 67 mm and are 19 mm thick, and the friction material is ECE R90 approved and matched to the original for bite and wear. The box includes anti-squeal shims and fitting accessories, so worn hardware does not go back on.
Fitting it
Measure the discs while the wheels are off; if they are near the minimum thickness, replace them with the pads. There is no wear indicator, so check the lining thickness at every service. Clean and grease the caliper guides, push the piston back gently and bed the pads in with a few moderate stops.
