Brembo Brake disc 09.D251.11
322 mm vented front disc for the Volvo V60, XC40 and XC60
- Art. no.
- 09.D251.11
- EAN
- 8020584234655
- 322mm
- 28mm
- Vented
SKU BRE-09D25111 · EAN 8020584234655
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 111 · Next day
- Oslo Alnabru8
- Bergen Kokstad0
- Trondheim Tiller27
- Stockholm Västberga15
- Gothenburg Hisings Backa0
- Rotterdam Waalhaven26

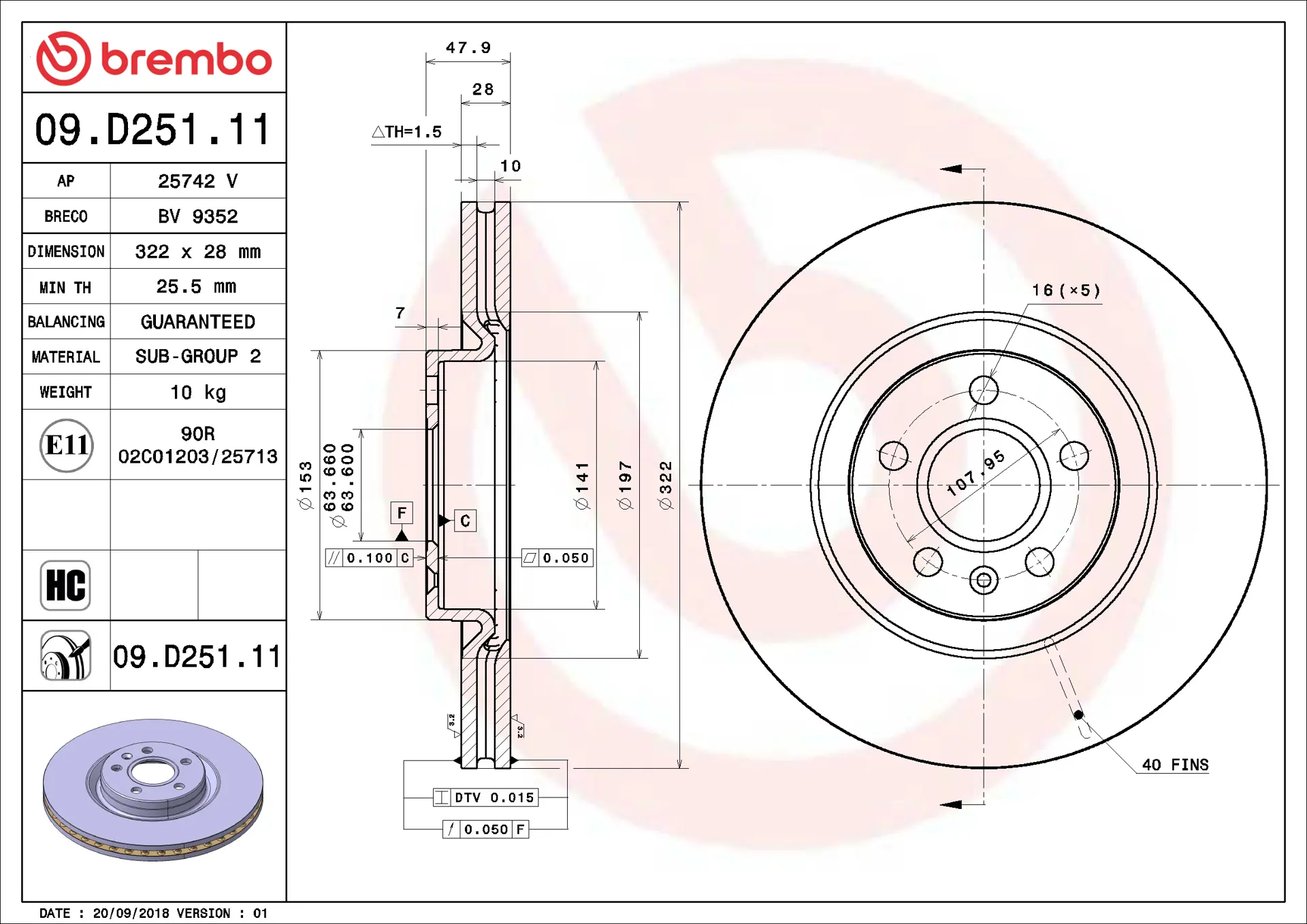

Brembo Prime 322 mm x 28 mm vented disc for the front axle of the Volvo V60 D4, XC40 T4 Recharge and XC60 D4. UV-painted hat and edges, 5 holes and a 64 mm centre bore; replace at 25.5 mm. Sold singly, 1 disc per box, so order two per axle.
Fits
Vehicles this part is listed for, with position and conditions.
3 vehicles
- Volvo V60 II (225)2.0 D4204T14 190 hpD4204T14140 kW1402018–2021Front axleFor 17-inch brakes. 16-inch brakes take 296 mm, 18-inch 345 mm.
- Volvo XC40 5361.5 B3154T10 129 hpB3154T1095 kW952020–2024Front axleFor 17-inch brakes, model code FC19 or FC22. 16-inch (296 mm) and 18-inch (345 mm) versions also exist.
- Volvo XC60 II (246)2.0 D4204T14 190 hpD4204T14140 kW1402017–2021Front axleFor 17-inch brakes. 18-inch brakes take 345 mm, 19-inch 366 mm.
Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 322mm
- Thickness
- 28mm
- Minimum thickness
- 25.5mm
- Height
- 47mm
- Centering diameter
- 64mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- ✓ Yes
- Bolts included
- — No
- Wheel bearing included
- — No
- Pieces per pack
- 1
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Volvo | 31423724 |
| Volvo | 31471413 |
| Volvo | 31665446 |
| Volvo | 32217561 |
| Volvo | 32233185 |
| Volvo | 32254356 |
| Volvo | 32300122 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 24012803131 |
| Bosch | 0986479F90 |
| febi bilstein | 106352 |
| Ferodo | DDF2693C |
| Meyle | 5835210046PD |
| Mintex | MDC2761 |
| Pagid | 55874HC |
| Textar | 92287405 |
| Zimmermann | 610372520 |
| Zimmermann | 610372552 |
Why this one
01
322 x 28 mm
Vented disc, 5 holes, 64 mm centre bore, minimum thickness 25.5 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
High-carbon iron
Extra carbon damps vibration and helps the disc handle heat.
04
Sold singly
One disc per box; order two for an axle.
On the job
The job it does
OE-equivalent vented disc for the front axle of the Volvo V60 D4, XC40 T4 Recharge and XC60 D4. New it measures 322 x 28 mm and it must be replaced at 25.5 mm. The high-carbon iron damps vibration and copes better with heat, which helps against judder.
Fitting it
Discs are always changed in axle pairs, and this one is packed singly, so order two. Fit new front pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. A brake fluid change is often due at the same visit.
