Brembo Brake pad set P 86 035
Rear pad set for the Volvo V60 D4 and XC60 D4
- Art. no.
- P 86 035
- EAN
- 8020584125786
- 123mm
- 16mm
- Prepared for sensor
SKU BRE-P86035 · EAN 8020584125786
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 193 · Next day
- Oslo Alnabru13
- Bergen Kokstad23
- Trondheim Tiller14
- Stockholm Västberga17
- Gothenburg Hisings Backa37
- Rotterdam Waalhaven19

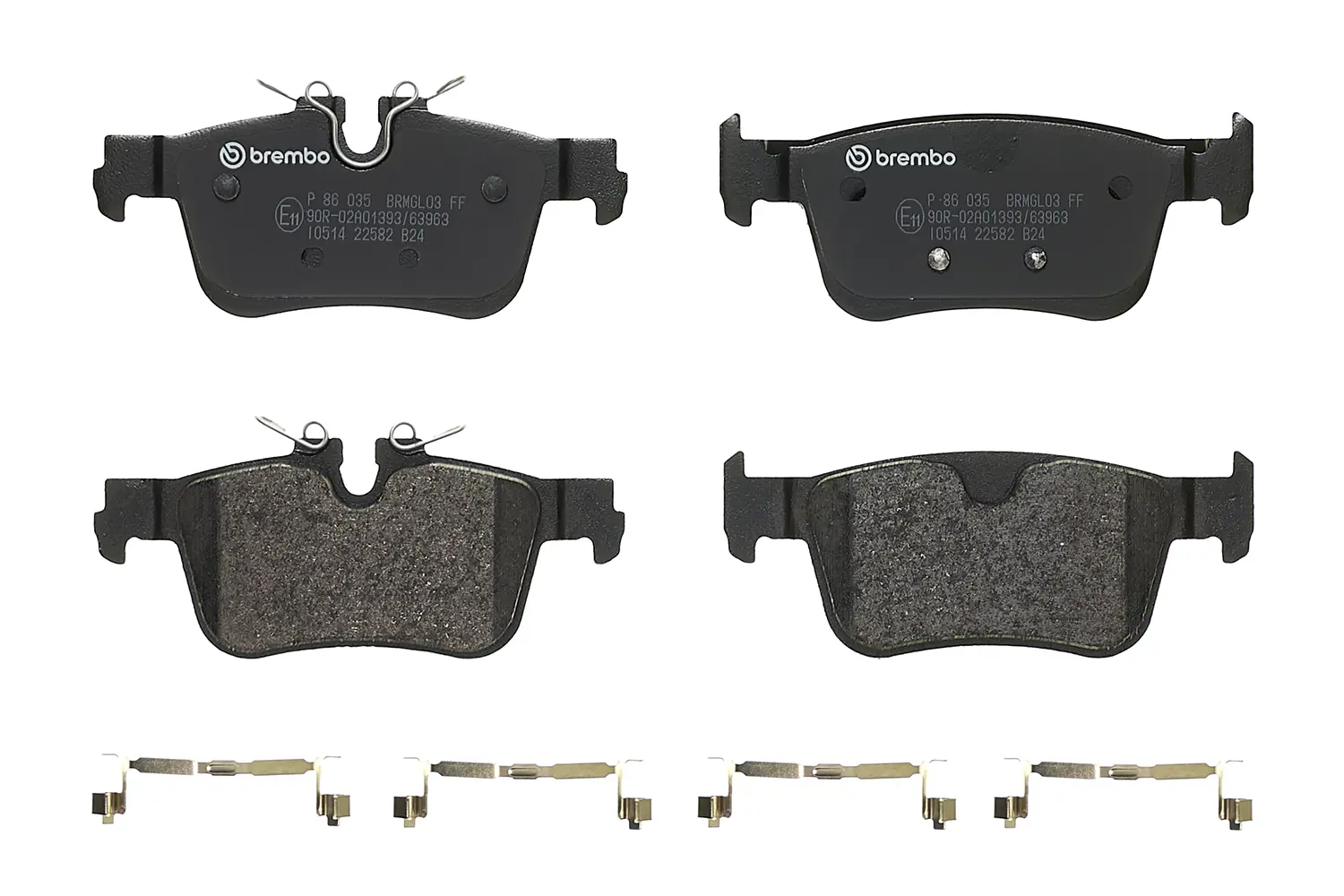

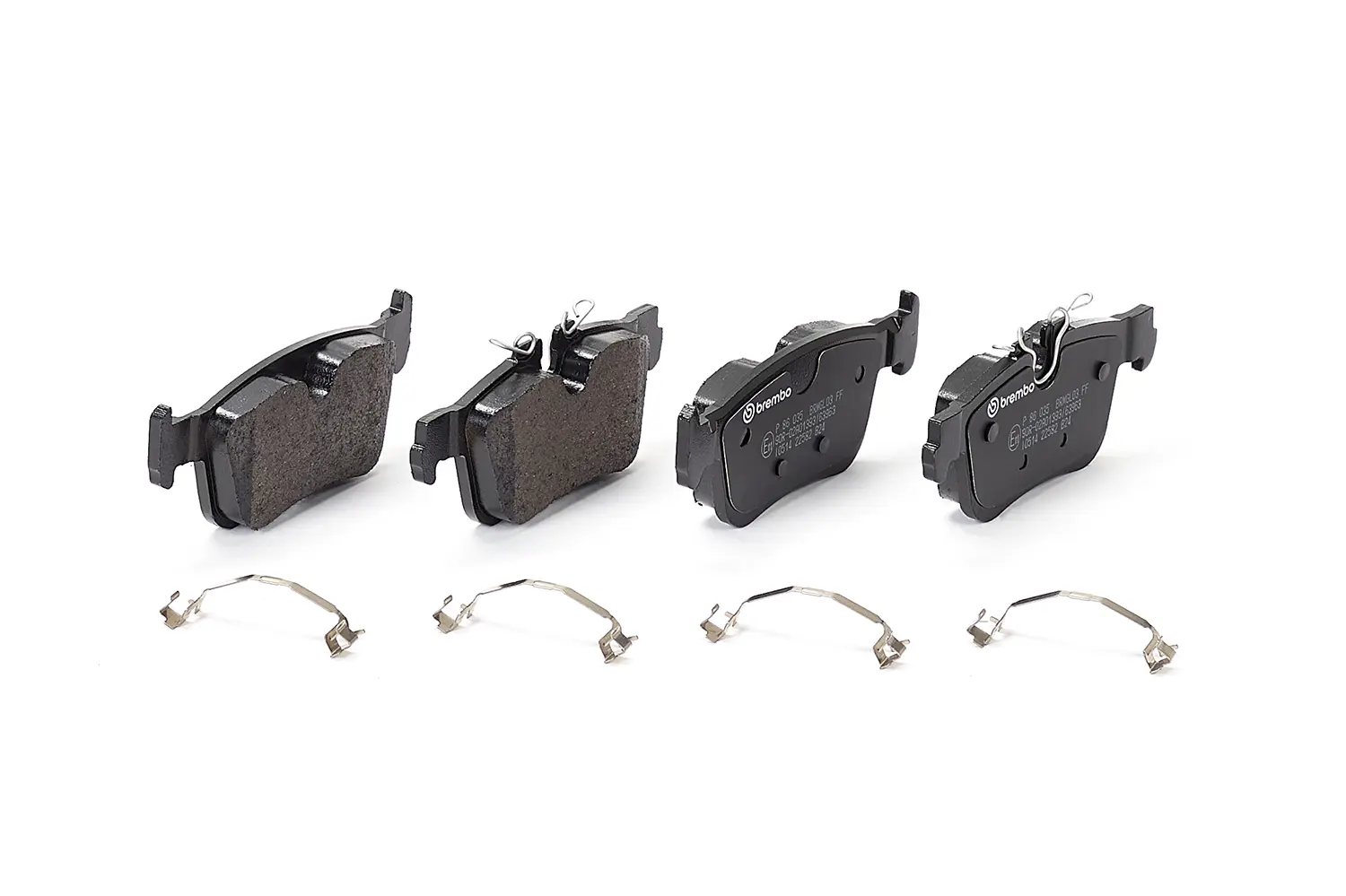

Brembo Prime rear pad set for the Volvo V60 D4 and XC60 D4, 123 x 48 x 16 mm. It is supplied prepared for a wear sensor, and the box holds anti-squeal shims and fitting accessories.
Fits
Vehicles this part is listed for, with position and conditions.
2 vehicles
- Volvo V60 II (225)2.0 D4204T14 190 hpD4204T14140 kW1402018–2021Rear axleFor 16-inch brakes.
- Volvo XC60 II (246)2.0 D4204T14 190 hpD4204T14140 kW1402017–2021Rear axleFor 16-inch brakes. Alternative fitment, not the base-equipment part.

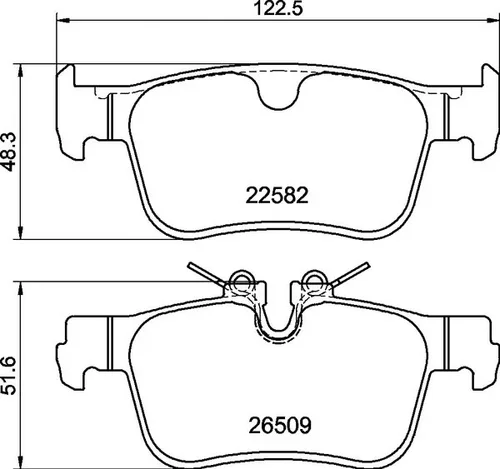

Specifications
Brake pads
- Width
- 123mm
- Height
- 48mm
- Thickness
- 16mm
- Wear indicator
- Prepared for sensor
- WVA number
- 26509, 22582
- Fitting kit included
- ✓ Yes
- Chamfered / slotted
- — No
- Anti-squeal shims
- ✓ Yes
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Volvo | 32287430 |
| Volvo | 32287431 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 13046073372 |
| Bosch | 0986424802 |
| febi bilstein | 171409 |
| Ferodo | FDB5191D |
| Hella Pagid | 355044311 |
| Jurid | 573895JD |
| Meyle | 0252256816PD |
| Mintex | MDB4295 |
| Pagid | T2941 |
| ATE | 13046073642 |
Why this one
01
123x48x16 mm
Complete set for one axle, WVA 26509.
02
Wear indicator
Prepared for a wear sensor.
03
Hardware included
Anti-squeal shims and fitting accessories in the box.
04
ECE R90 approved
Prime friction material matched to the original pad for bite and wear.
On the job
The job it does
A complete rear axle set for the Volvo V60 D4 and XC60 D4. The pads measure 123 x 48 mm and are 16 mm thick, and the friction material is ECE R90 approved and matched to the original for bite and wear. The box includes anti-squeal shims and fitting accessories, so worn hardware does not go back on.
Fitting it
Measure the discs while the wheels are off; if they are near the minimum thickness, replace them with the pads. The backing plates take a wear sensor, which is ordered separately, so check the old one. Clean and grease the caliper guides, push the piston back gently and bed the pads in with a few moderate stops.
