Brembo Brake disc 08.D220.11
284 mm solid rear disc for the Kia Niro 1.6 Hybrid
- Art. no.
- 08.D220.11
- EAN
- 8020584235669
- 284mm
- 10mm
- Solid
SKU BRE-08D22011 · EAN 8020584235669
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 136 · Next day
- Oslo Alnabru33
- Bergen Kokstad0
- Trondheim Tiller18
- Stockholm Västberga11
- Gothenburg Hisings Backa15
- Rotterdam Waalhaven0

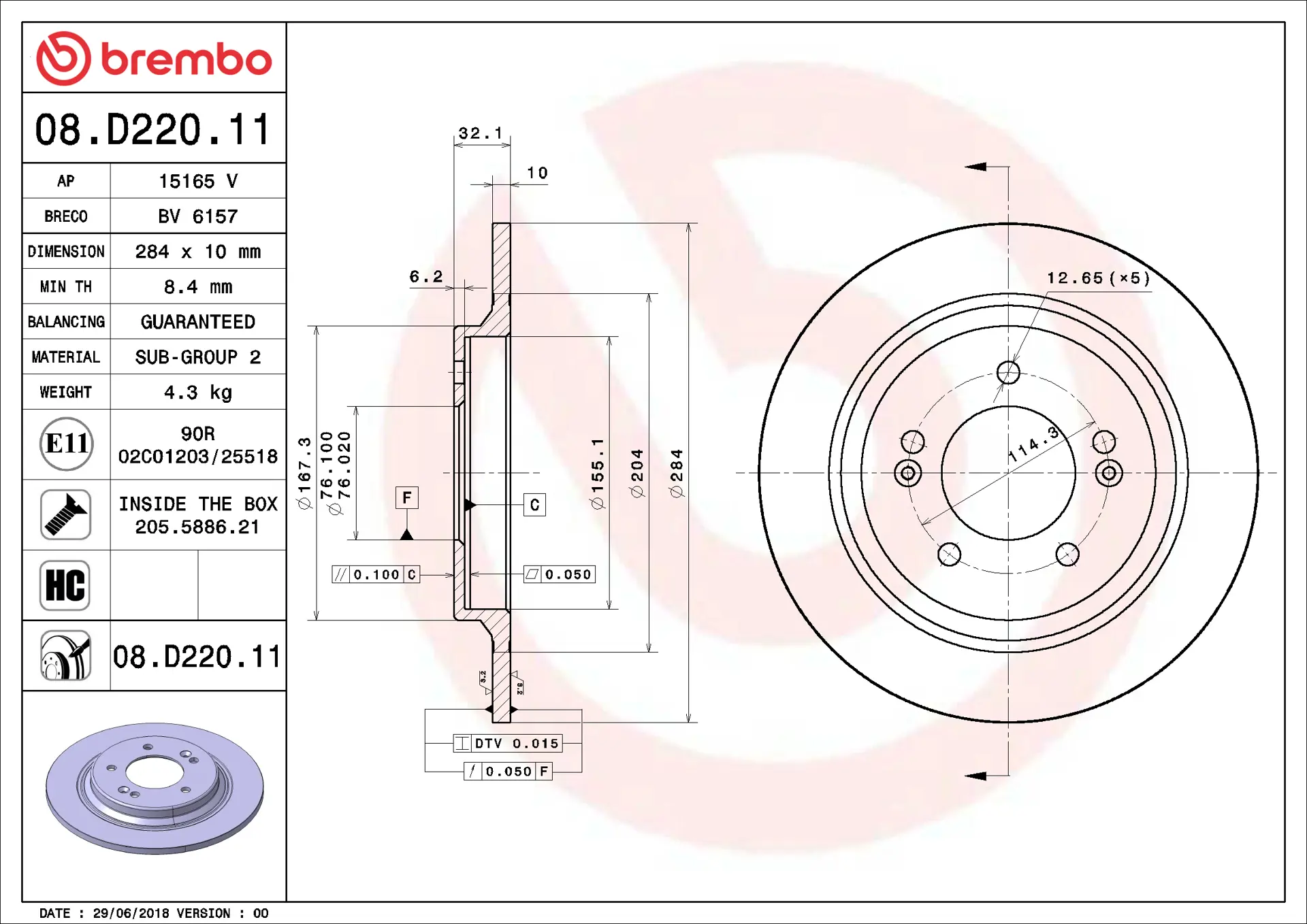

Specifications
Brake disc
- Disc type
- Solid
- Diameter
- 284mm
- Thickness
- 10mm
- Minimum thickness
- 8.4mm
- Height
- 32mm
- Centering diameter
- 76mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- ✓ Yes
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Kia | 584113Q000 |
| Kia | 584113R700 |
| Kia | 584113V500 |
| Kia | S584113V500 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 24011004001 |
| Bosch | 0986479V09 |
| Ferodo | DDF2541C1D |
| Meyle | 28155230020PD |
| Mintex | MDC2815C |
| Pagid | 55931 |
Why this one
01
284 x 10 mm
Solid disc, 5 holes, 76 mm centre bore, minimum thickness 8.4 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
High-carbon iron
Extra carbon damps vibration and helps the disc handle heat.
04
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
OE-equivalent solid disc for the rear axle of the Kia Niro 1.6 Hybrid. New it measures 284 x 10 mm and it must be replaced at 8.4 mm. The high-carbon iron damps vibration and copes better with heat, which helps against judder.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new rear pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. Hybrids brake a lot on regeneration, so discs tend to rust before they wear out; look at the inner face.
