Specifications
Brake pads
- Width
- 100mm
- Height
- 41mm
- Thickness
- 15mm
- Wear indicator
- Acoustic
- WVA number
- 22656, 22657, 22655
- FMSI number
- D1445 8428, D1812 8428, D1848 8428
- Fitting kit included
- ✓ Yes
- Chamfered / slotted
- — No
- Anti-squeal shims
- ✓ Yes
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Hyundai | 58302D3A00 |
| Hyundai | 58302D3A70 |
| Hyundai | 58302D3A71 |
| Kia | 58302D7A71 |
| Hyundai/Kia | 58302E5A10 |
| Hyundai | 58302E6A50 |
| Kia | 58302F6A50 |
| Hyundai | 58302G0A50 |
| Kia | 58302G2A40 |
| Hyundai | 58302G2A60 |
| Hyundai/Kia | 58302G7A40 |
| Hyundai | 58302G8A50 |
Cross-references
Why this one
01

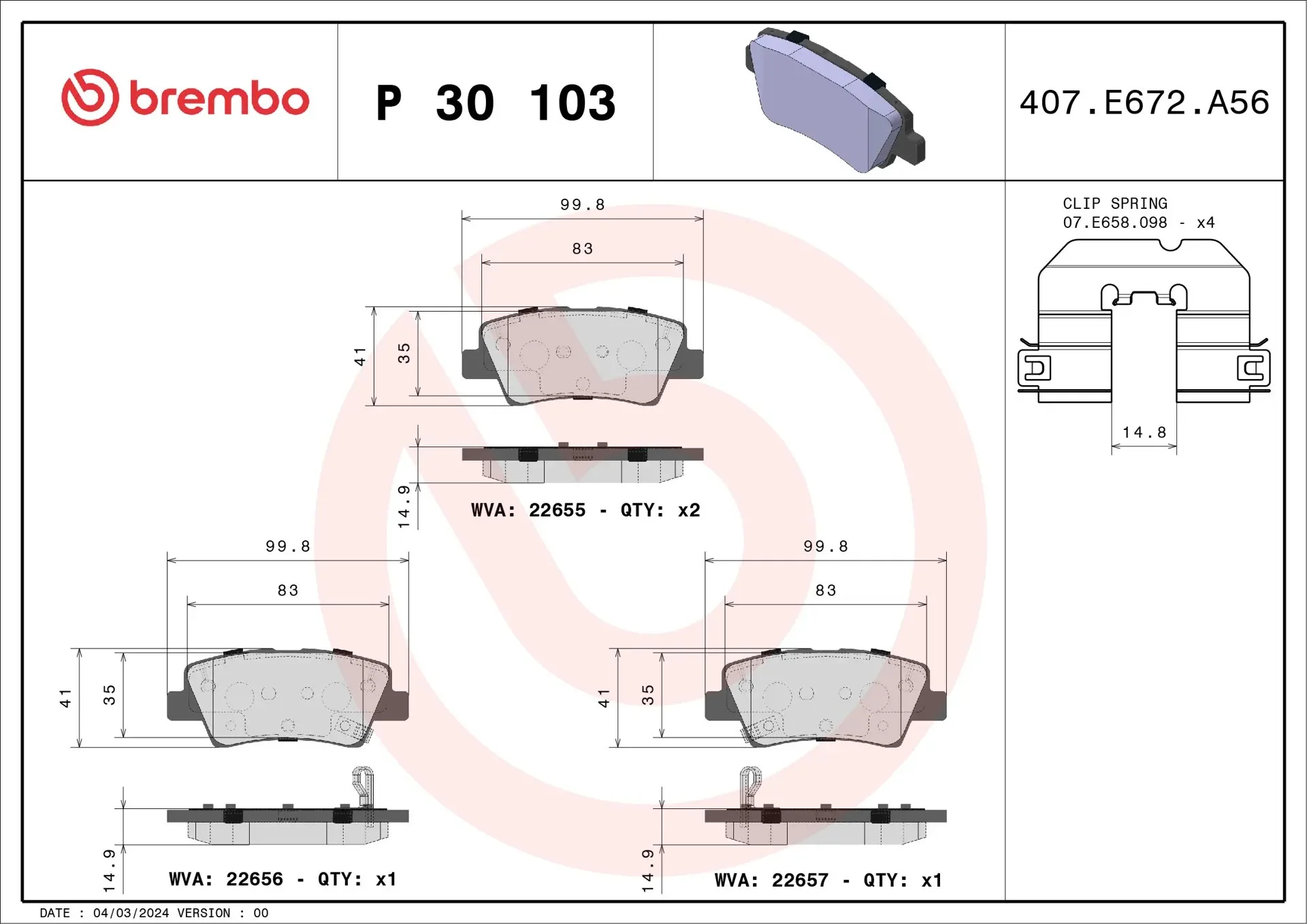

100x41x15 mm
Fits the Akebono caliper, WVA 22656.
02
Wear indicator
With an acoustic wear warning.
03

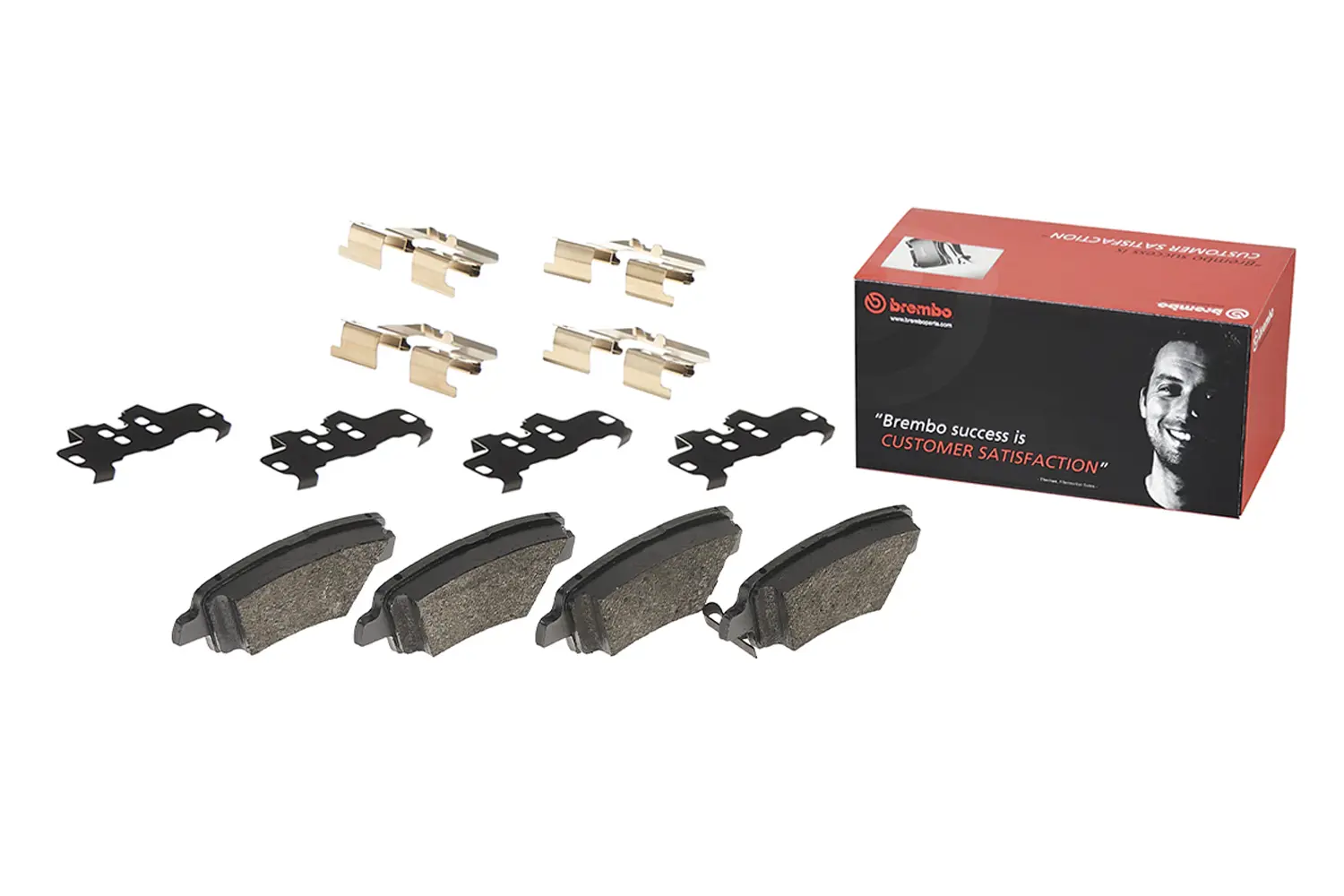

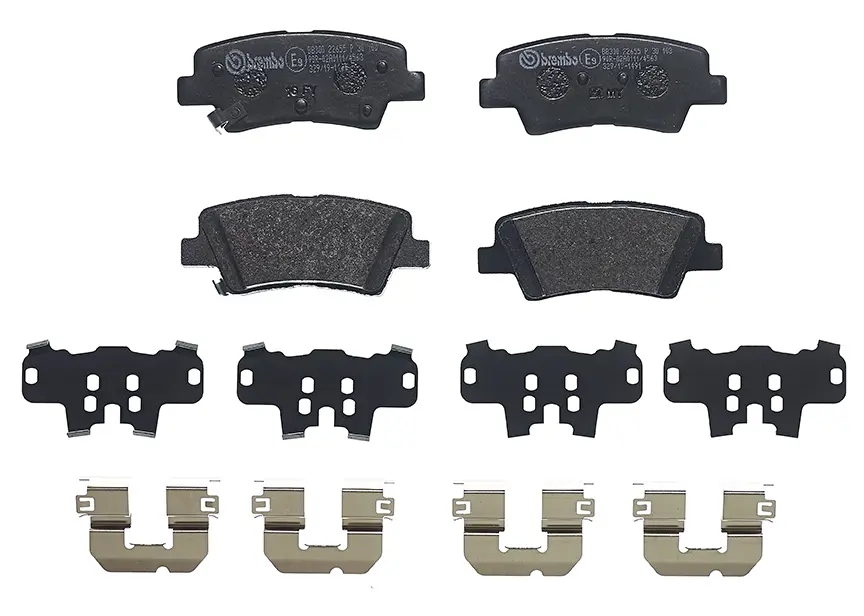

Hardware included
Anti-squeal shims and fitting accessories in the box.
04
ECE R90 approved
Prime friction material matched to the original pad for bite and wear.
On the job
The job it does
A complete rear axle set for the Hyundai Tucson 1.6 CRDi and Kia Niro 1.6 Hybrid. The pads measure 100 x 41 mm and are 15 mm thick, made to fit the Akebono caliper, and the friction material is ECE R90 approved and matched to the original for bite and wear. The box includes anti-squeal shims and fitting accessories, so worn hardware does not go back on.
Fitting it
Measure the discs while the wheels are off; if they are near the minimum thickness, replace them with the pads. A spring tab on the pad squeals against the disc when the lining gets thin. Clean and grease the caliper guides, push the piston back gently and bed the pads in with a few moderate stops.
