Brembo Brake disc 09.D428.11
305 mm vented front disc for the Hyundai Tucson 1.6 CRDi
- Art. no.
- 09.D428.11
- EAN
- 8020584310236
- 305mm
- 25mm
- Vented
SKU BRE-09D42811 · EAN 8020584310236
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 187 · Next day
- Oslo Alnabru23
- Bergen Kokstad0
- Trondheim Tiller26
- Stockholm Västberga0
- Gothenburg Hisings Backa0
- Rotterdam Waalhaven8

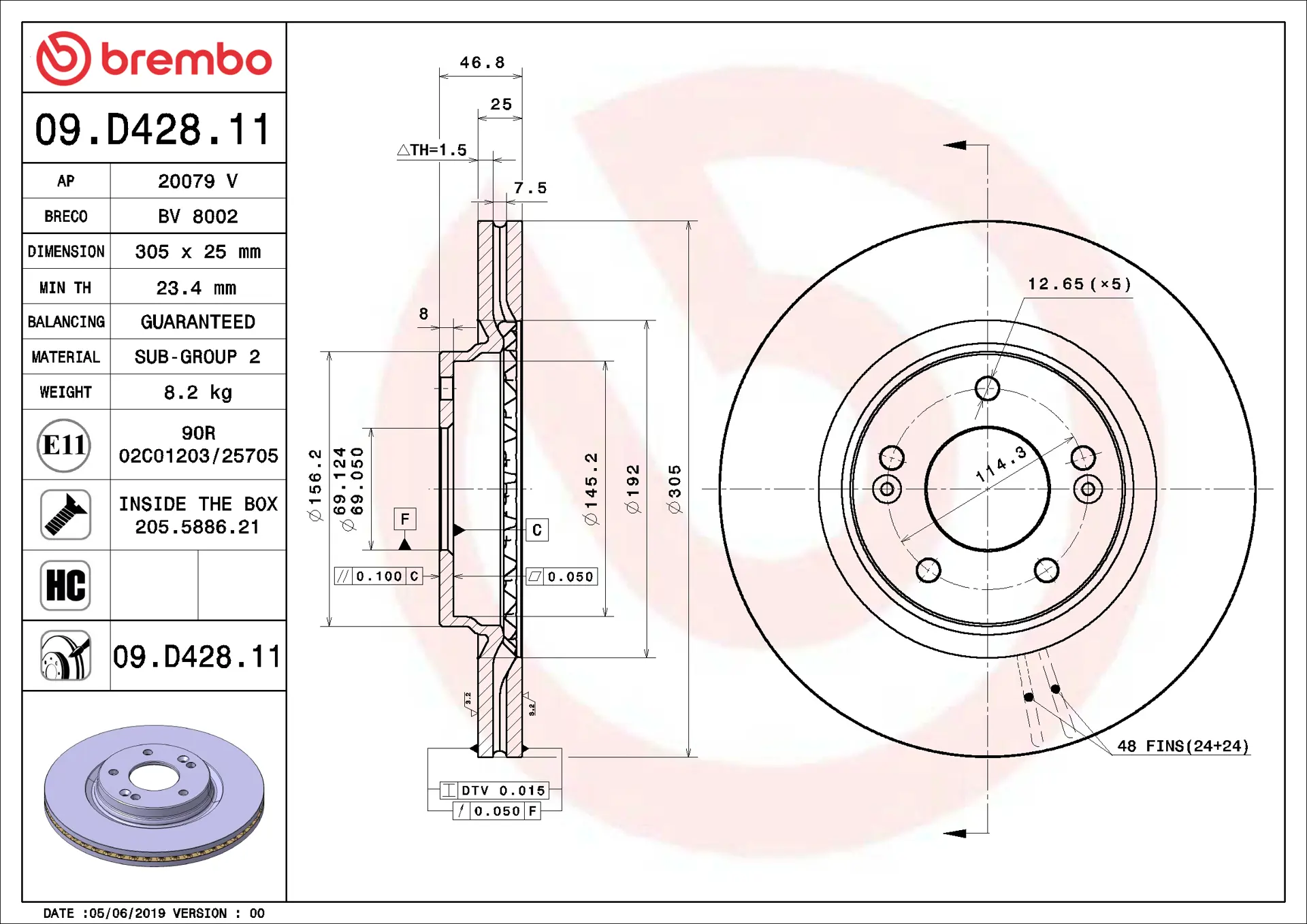

Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 305mm
- Thickness
- 25mm
- Minimum thickness
- 23.4mm
- Height
- 47mm
- Centering diameter
- 69mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- ✓ Yes
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Hyundai | 51712C1000 |
| Hyundai | 51712D7000 |
| Hyundai | 51712F8000 |
| Hyundai | 51712J9100 |
| Hyundai | 51712M7100 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 24012502131 |
| Bosch | 0986479E42 |
| febi bilstein | 108575 |
| Ferodo | DDF2680C |
| Meyle | 37835210042PD |
Why this one
01
305 x 25 mm
Vented disc, 5 holes, 69 mm centre bore, minimum thickness 23.4 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
High-carbon iron
Extra carbon damps vibration and helps the disc handle heat.
04
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
OE-equivalent vented disc for the front axle of the Hyundai Tucson 1.6 CRDi. New it measures 305 x 25 mm and it must be replaced at 23.4 mm. The high-carbon iron damps vibration and copes better with heat, which helps against judder.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new front pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. A brake fluid change is often due at the same visit.
