Brembo Brake pad set P 30 093
Front pad set for the Hyundai Tucson 1.6 CRDi
- Art. no.
- P 30 093
- EAN
- 8020584087138
- 138mm
- 18mm
- Acoustic
SKU BRE-P30093 · EAN 8020584087138
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 133 · Next day
- Oslo Alnabru12
- Bergen Kokstad14
- Trondheim Tiller0
- Stockholm Västberga23
- Gothenburg Hisings Backa19
- Rotterdam Waalhaven27

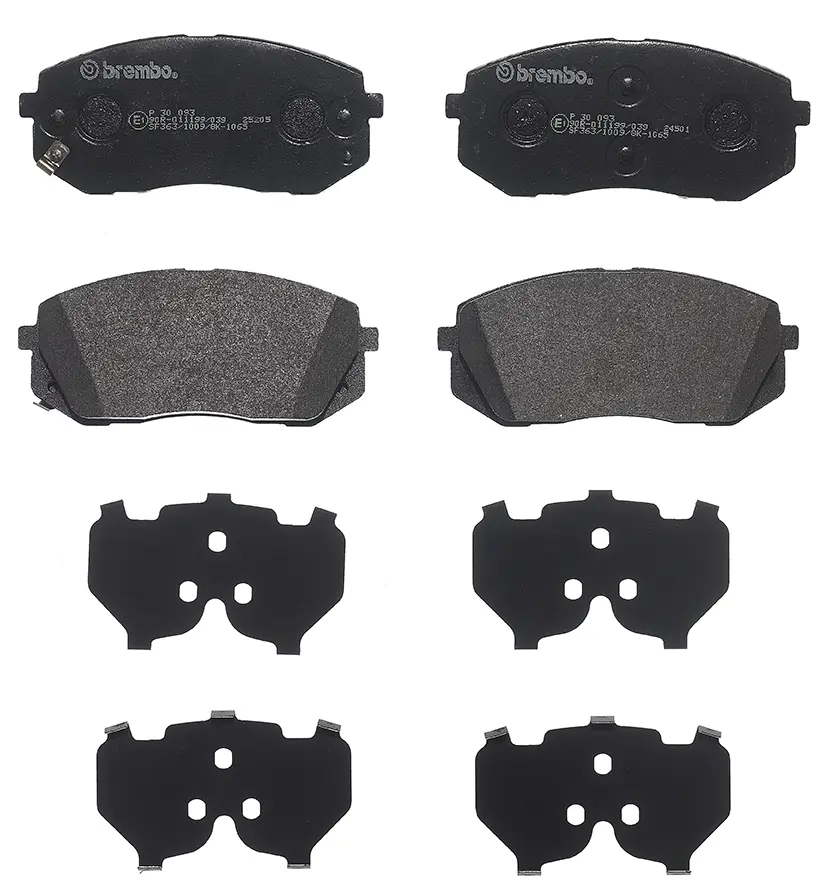

Brembo Prime front pad set for the Hyundai Tucson 1.6 CRDi, 138 x 61 x 18 mm for the Sumitomo caliper. It is supplied with an acoustic wear warning, and the box holds anti-squeal shims and fitting accessories.
Fits
Vehicles this part is listed for, with position and conditions.
1 vehicle
- Hyundai Tucson III (TL)1.6 D4FE 136 hpD4FE100 kW1002018–2020Front axleFor 16-inch or 17-inch brakes. Brembo also lists P 30 056 (Mando caliper) for 17-inch brakes.
Specifications
Brake pads
- Width
- 138mm
- Height
- 61mm
- Thickness
- 18mm
- Wear indicator
- Acoustic
- WVA number
- 24501, 25206, 25205
- FMSI number
- D1855 8614
- Fitting kit included
- ✓ Yes
- Chamfered / slotted
- — No
- Anti-squeal shims
- ✓ Yes
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Hyundai | 58101C1A10 |
| Hyundai | 58101C2A10 |
| Hyundai | 58101CMA10 |
| Hyundai | 58101D7A00 |
| Hyundai | 58101E5A10 |
| Hyundai | 58101E6A10 |
| Hyundai | 58101G3A10 |
| Hyundai | 58101J3A10 |
| Hyundai | 58101J9A10 |
| Hyundai | 58101J9A60 |
| Hyundai | 58101K4A10 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 13046055262 |
| Bosch | 0986460077 |
| Ferodo | FDB5039 |
| Hella Pagid | 355025981 |
| Jurid | 573814J |
| Mintex | MDB3166 |
| Pagid | T2705 |
| ATE | 605526 |
| Bosch | 0986494559 |
| Hella Pagid | 355036001 |
Why this one
01

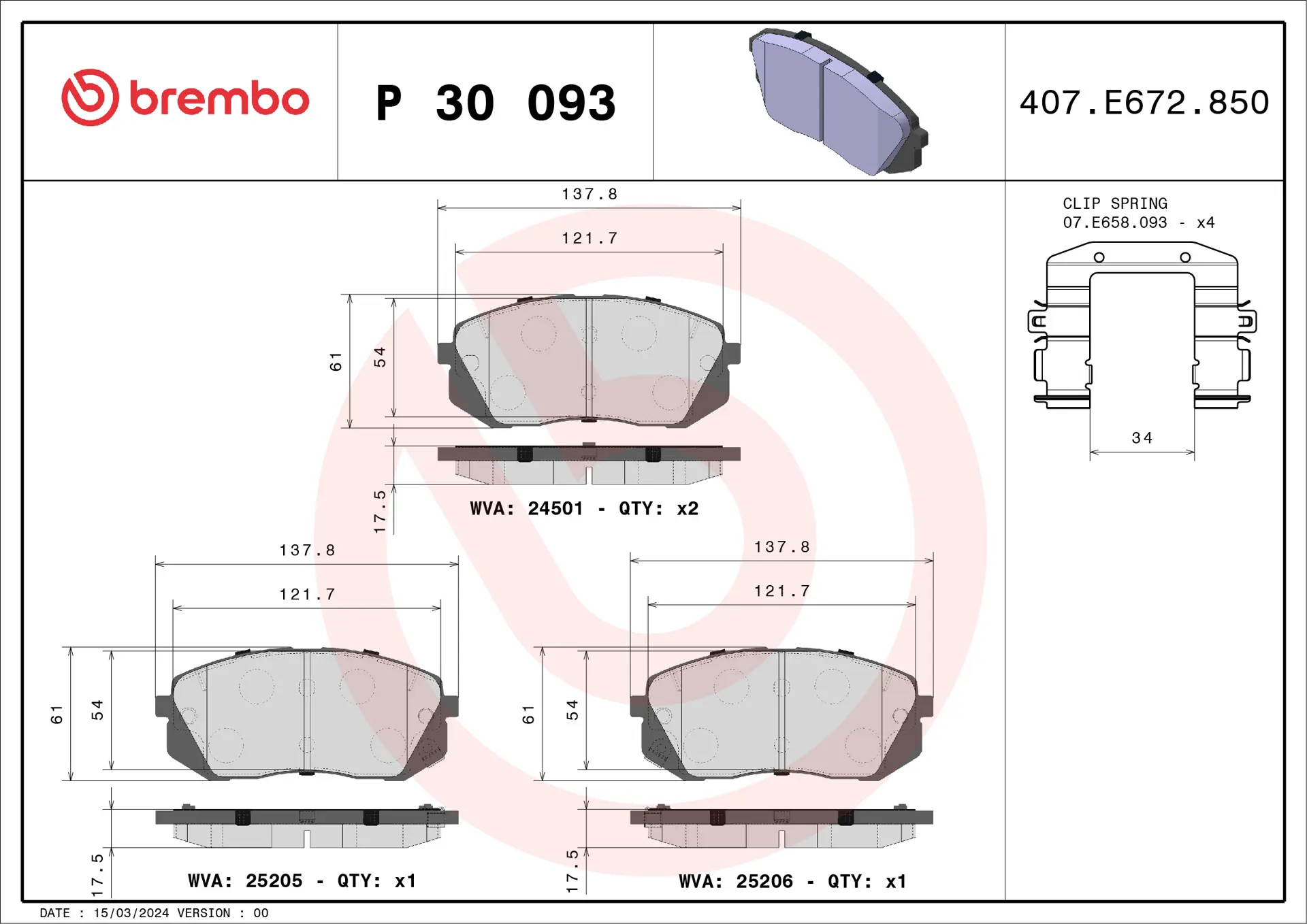

138x61x18 mm
Fits the Sumitomo caliper, WVA 24501.
02
Wear indicator
With an acoustic wear warning.
03

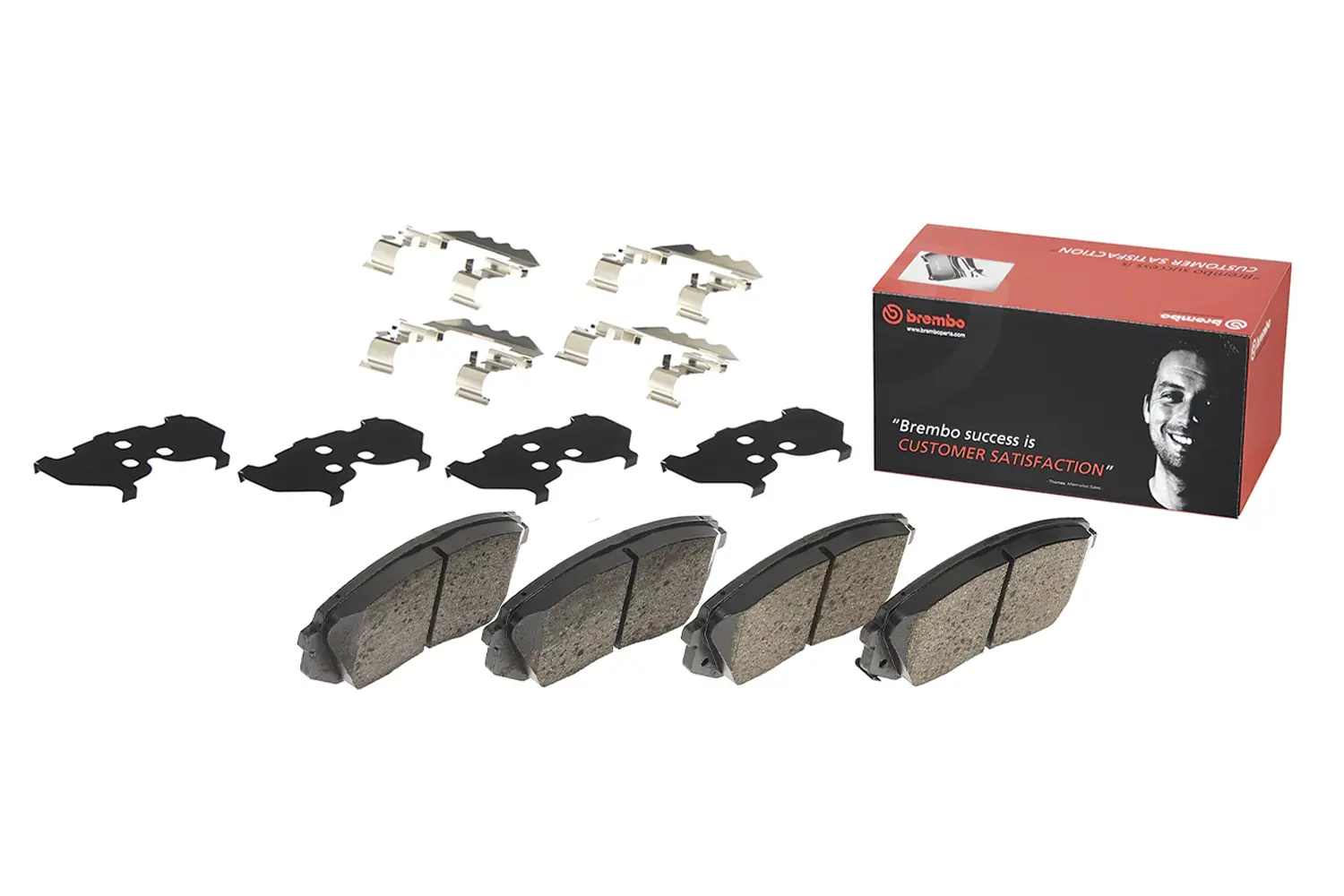

Hardware included
Anti-squeal shims and fitting accessories in the box.
04
ECE R90 approved
Prime friction material matched to the original pad for bite and wear.
On the job
The job it does
A complete front axle set for the Hyundai Tucson 1.6 CRDi. The pads measure 138 x 61 mm and are 18 mm thick, made to fit the Sumitomo caliper, and the friction material is ECE R90 approved and matched to the original for bite and wear. The box includes anti-squeal shims and fitting accessories, so worn hardware does not go back on.
Fitting it
Measure the discs while the wheels are off; if they are near the minimum thickness, replace them with the pads. A spring tab on the pad squeals against the disc when the lining gets thin. Clean and grease the caliper guides, push the piston back gently and bed the pads in with a few moderate stops.
