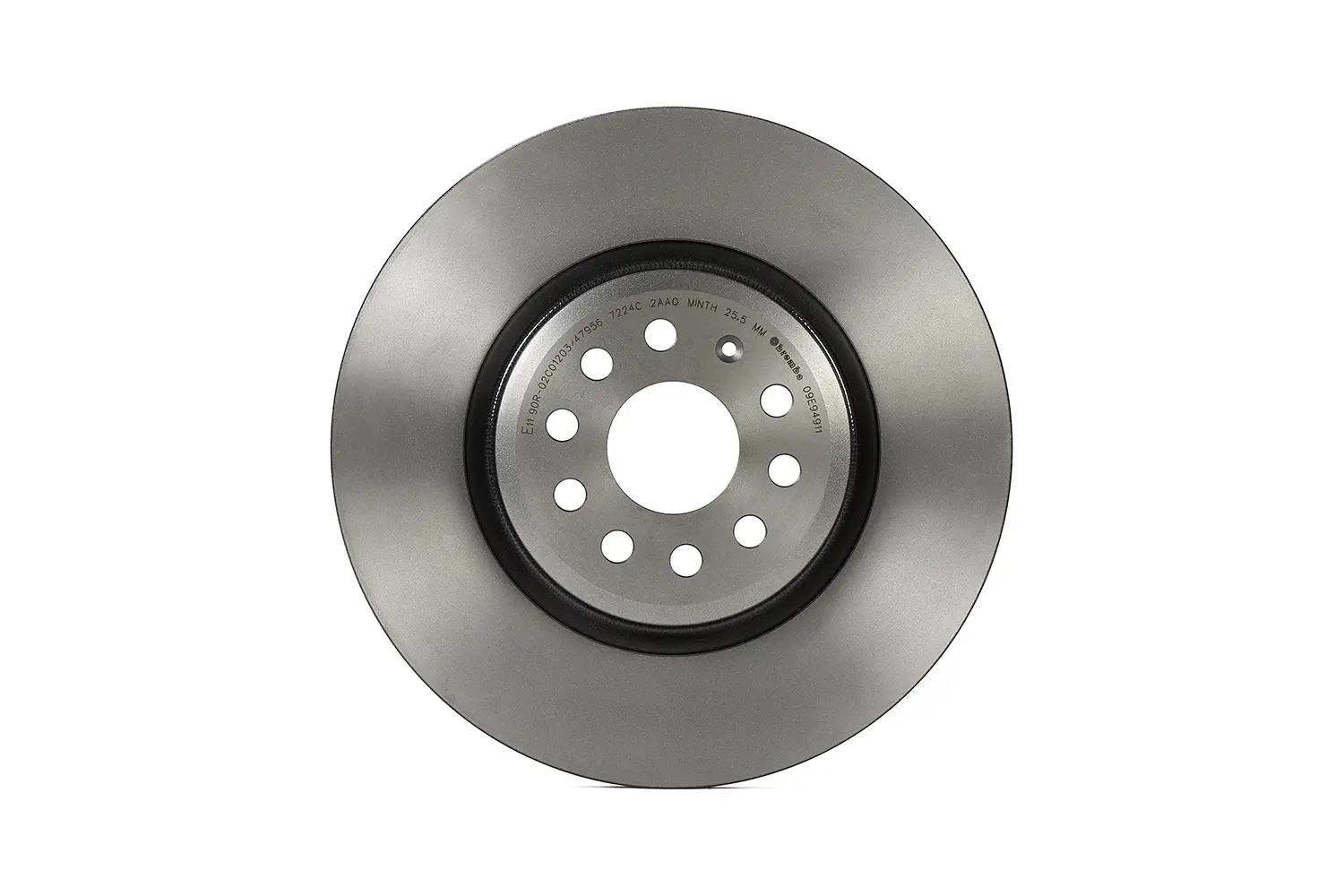

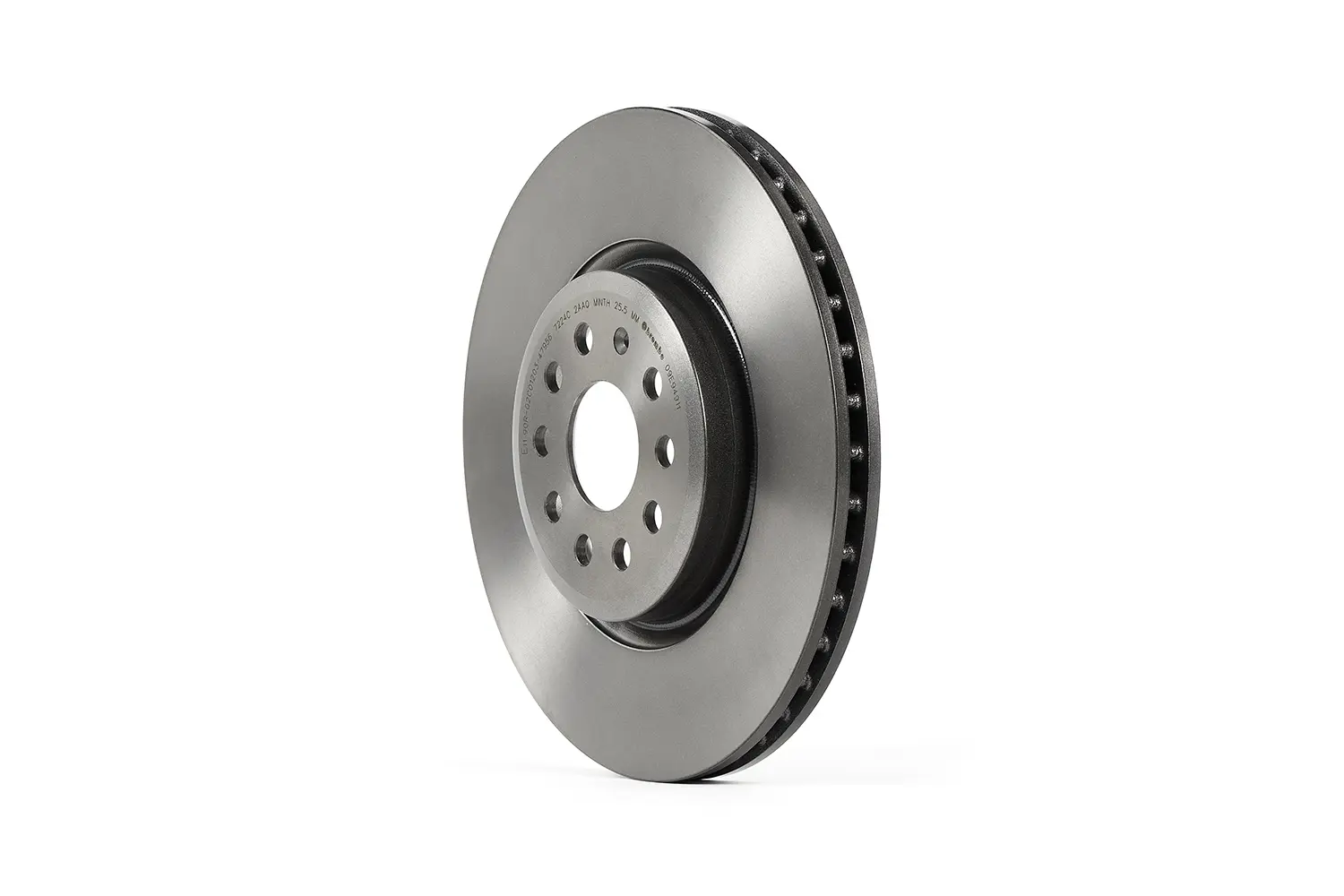

Brembo Brake disc 09.E949.11
340 mm vented front disc for the VW ID.4 Performance
- Art. no.
- 09.E949.11
- EAN
- 8020584325544
- 340mm
- 27mm
- Vented
SKU BRE-09E94911 · EAN 8020584325544
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 171 · Next day
- Oslo Alnabru25
- Bergen Kokstad22
- Trondheim Tiller35
- Stockholm Västberga0
- Gothenburg Hisings Backa21
- Rotterdam Waalhaven22

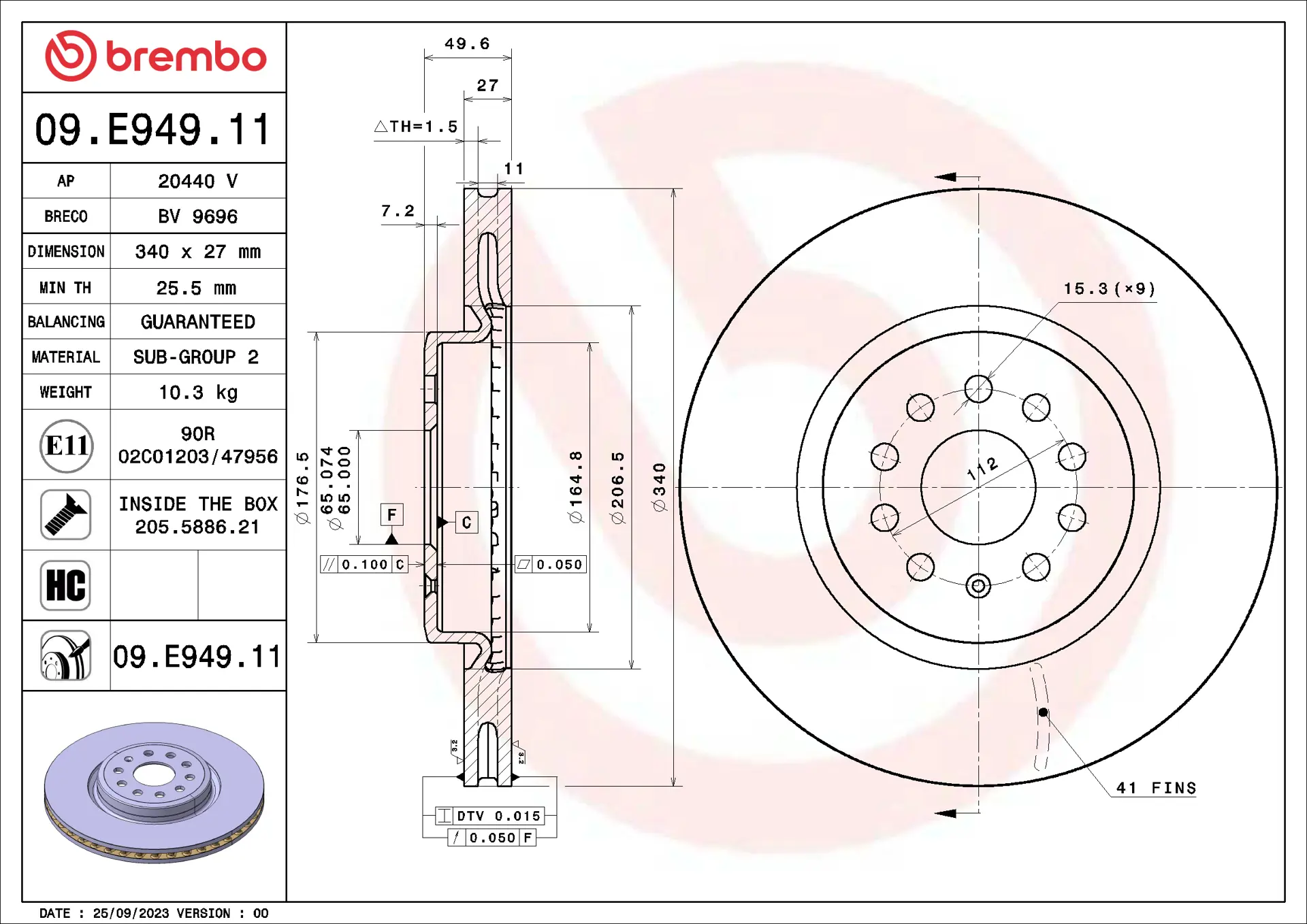

Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 340mm
- Thickness
- 27mm
- Minimum thickness
- 25.5mm
- Height
- 25.7mm
- Centering diameter
- 164.8mm
- Number of holes
- 9
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- ✓ Yes
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Audi | 1EA615301A |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| Textar | 92337405 |
| TRW | DF6770S |
| Zimmermann | 600326820 |
| TRW | DF8727S |
Why this one
01
340 x 27 mm
Vented disc, 9 holes, 164.8 mm centre bore, minimum thickness 25.5 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
High-carbon iron
Extra carbon damps vibration and helps the disc handle heat.
04
Sold singly
One disc per box; order two for an axle.
On the job
The job it does
OE-equivalent vented disc for the front axle of the VW ID.4 Performance. New it measures 340 x 27 mm and it must be replaced at 25.5 mm. The high-carbon iron damps vibration and copes better with heat, which helps against judder.
Fitting it
Discs are always changed in axle pairs, and this one is packed singly, so order two. Fit new front pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. On electric cars the brakes see little use, so check for rust on the friction ring at every service. Check the PR code on the service sticker before ordering.
