Brembo Brake disc 09.N361.11

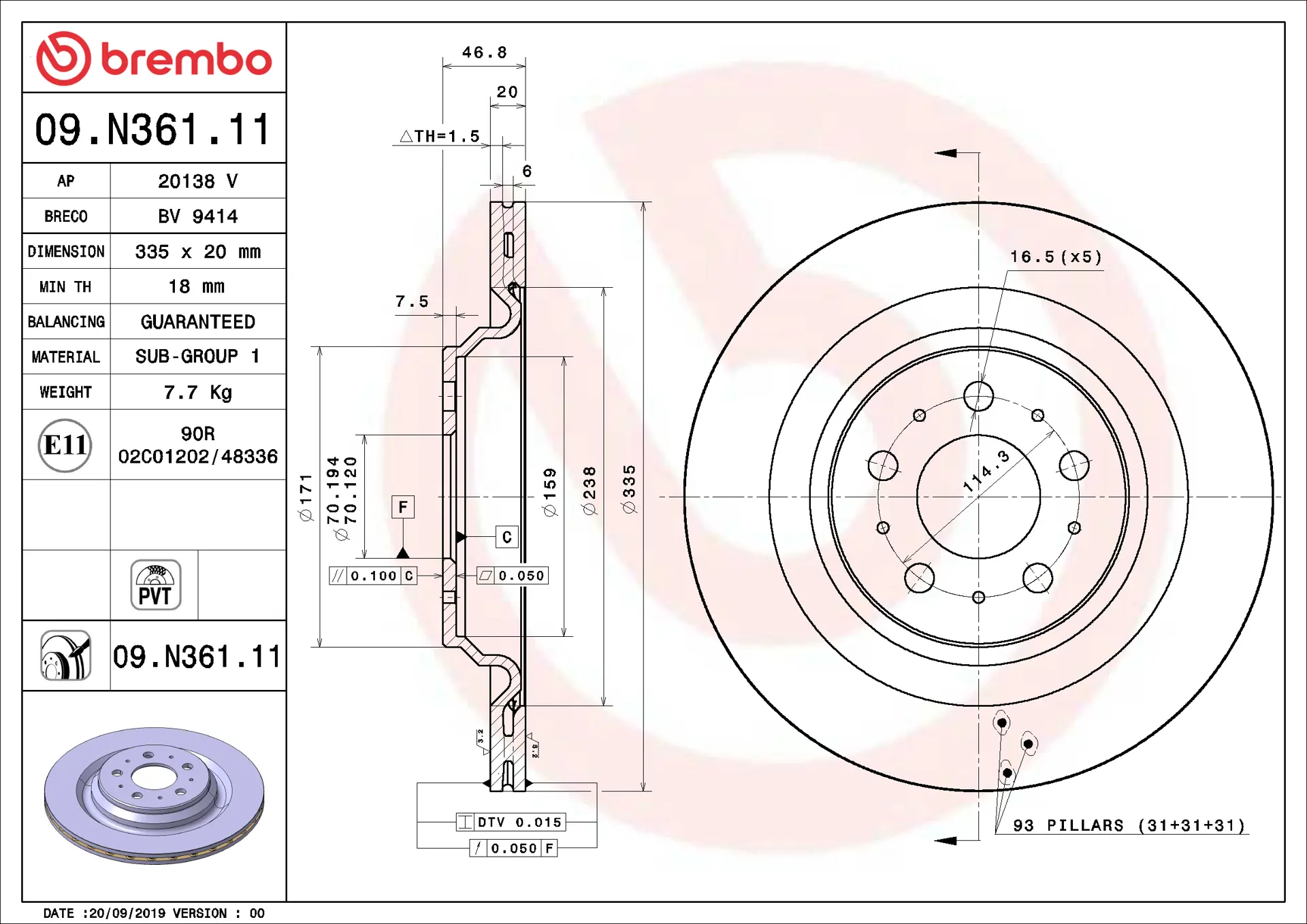

335 mm vented rear disc for the Tesla Model 3
- Art. no.
- 09.N361.11
- EAN
- 8020584311875
- 335mm
- 20mm
- Vented
SKU BRE-09N36111 · EAN 8020584311875
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 32 · Next day
- Oslo Alnabru27
- Bergen Kokstad35
- Trondheim Tiller17
- Stockholm Västberga8
- Gothenburg Hisings Backa20
- Rotterdam Waalhaven26
Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 335mm
- Thickness
- 20mm
- Minimum thickness
- 18mm
- Height
- 47mm
- Centering diameter
- 70mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Tesla | 1044631 |
| Tesla | 104463100D |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| Mintex | MDC3166C |
| Textar | 92343303 |
Why this one
01
335 x 20 mm
Vented disc, 5 holes, 70 mm centre bore, minimum thickness 18 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
PVT cooling vanes
Pillar-shaped vanes resist heat cracks better than straight vanes.
04
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
OE-equivalent vented disc for the rear axle of the Tesla Model 3. New it measures 335 x 20 mm and it must be replaced at 18 mm. Pillar-type (PVT) cooling vanes resist heat cracking better than straight vanes. The finish is UV-painted, which keeps the hub face and vanes free of rust.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new rear pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. On electric cars the brakes see little use, so check for rust on the friction ring at every service.
