Specifications
Brake pads
- Width
- 137mm
- Height
- 57mm
- Thickness
- 19mm
- Wear indicator
- Electric sensor included
- WVA number
- 23708, 23709
- Fitting kit included
- ✓ Yes
- Chamfered / slotted
- — No
- Anti-squeal shims
- ✓ Yes
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Fiat | 71770106 |
| Fiat | 71770116 |
| Fiat | 71773152 |
| Fiat | 77365468 |
| Fiat | 77365716 |
| Fiat | 77365865 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 13046038272 |
| Bosch | 0986494464 |
| febi bilstein | 116057 |
| Ferodo | FDB1466W |
Why this one
01

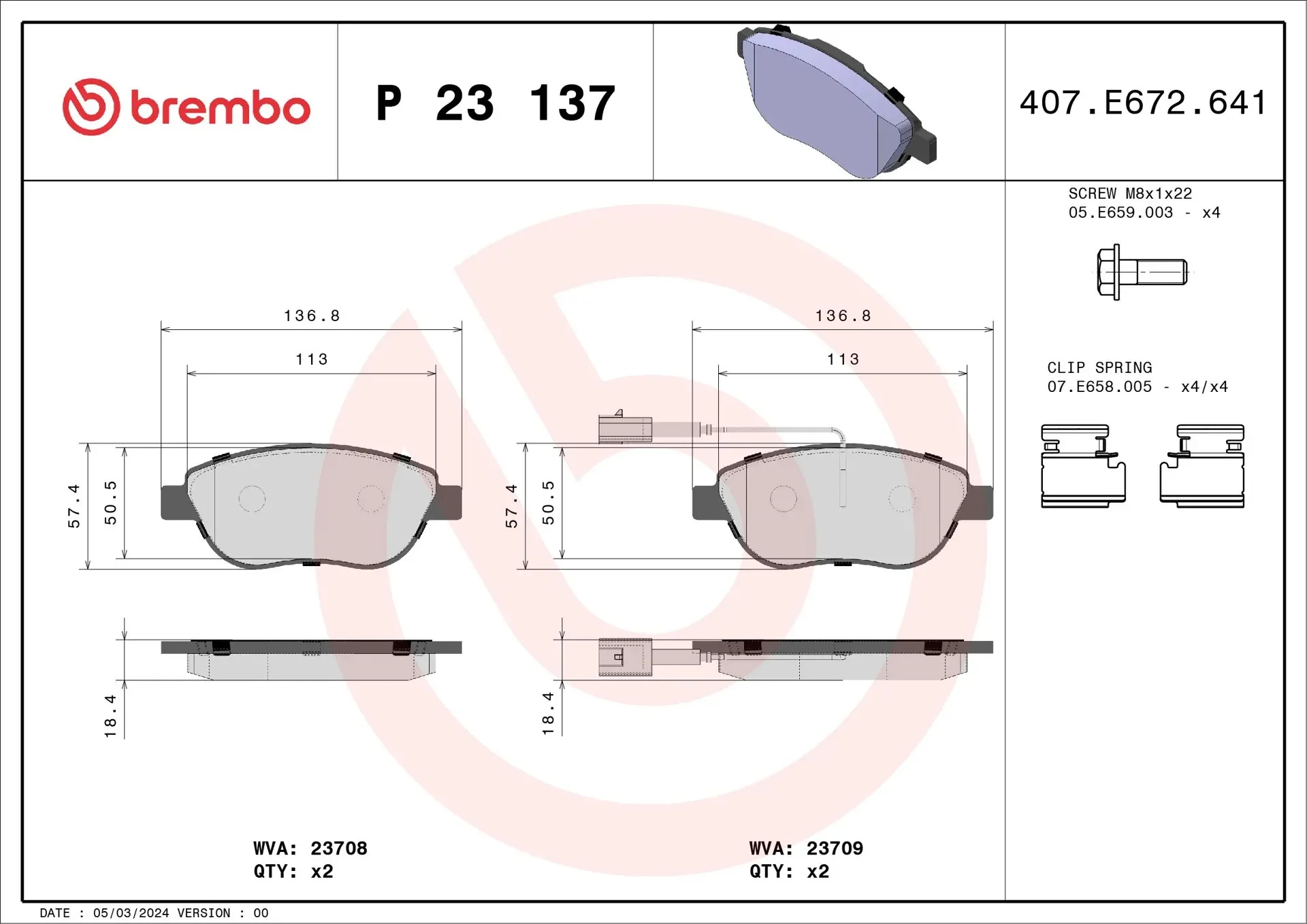

137x57x19 mm
Fits the Bosch caliper, WVA 23708.
02
Wear indicator
With an electric wear sensor fitted.
03

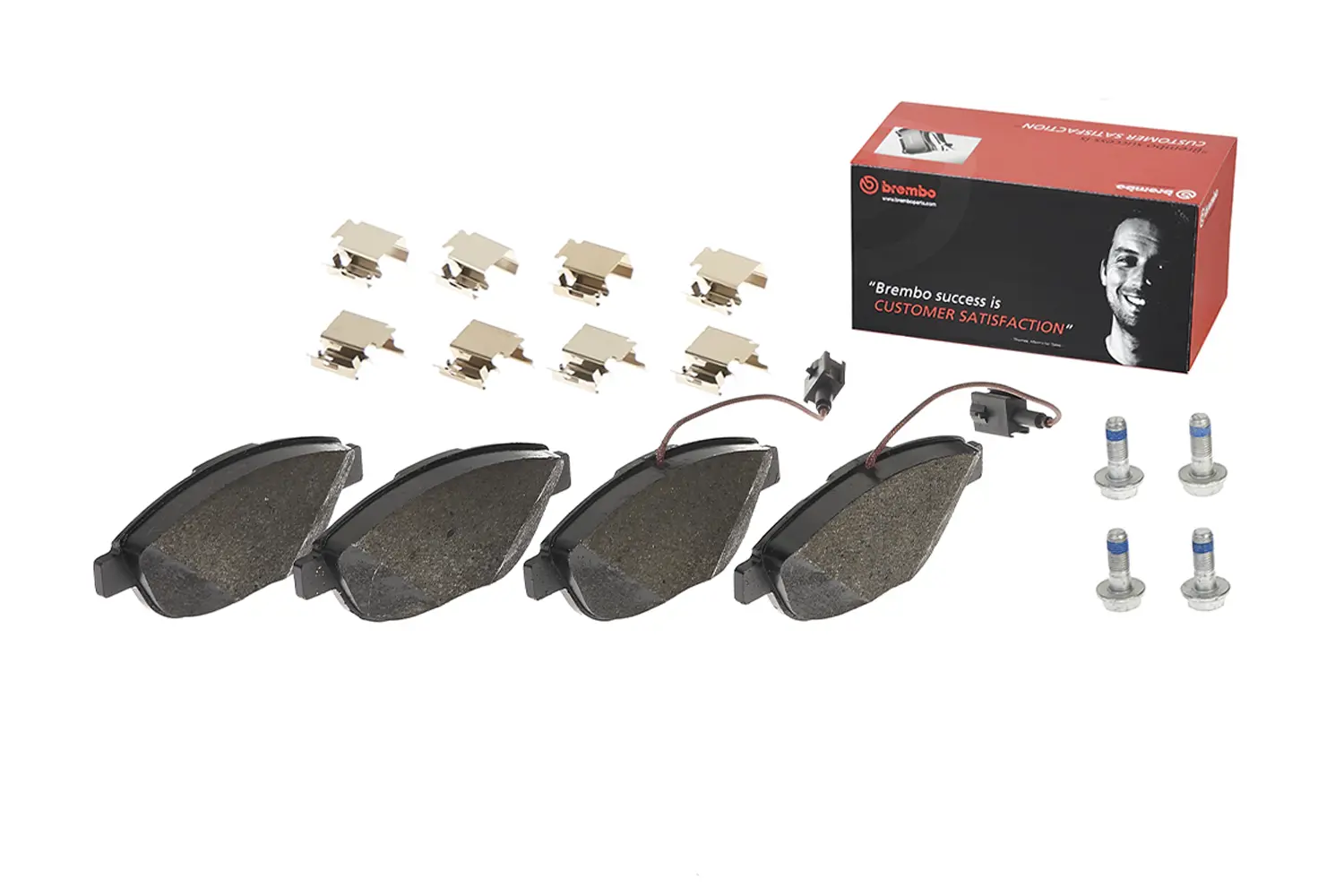

Hardware included
Anti-squeal shims, fitting accessories and caliper bolts in the box.
04
ECE R90 approved
Prime friction material matched to the original pad for bite and wear.
On the job
The job it does

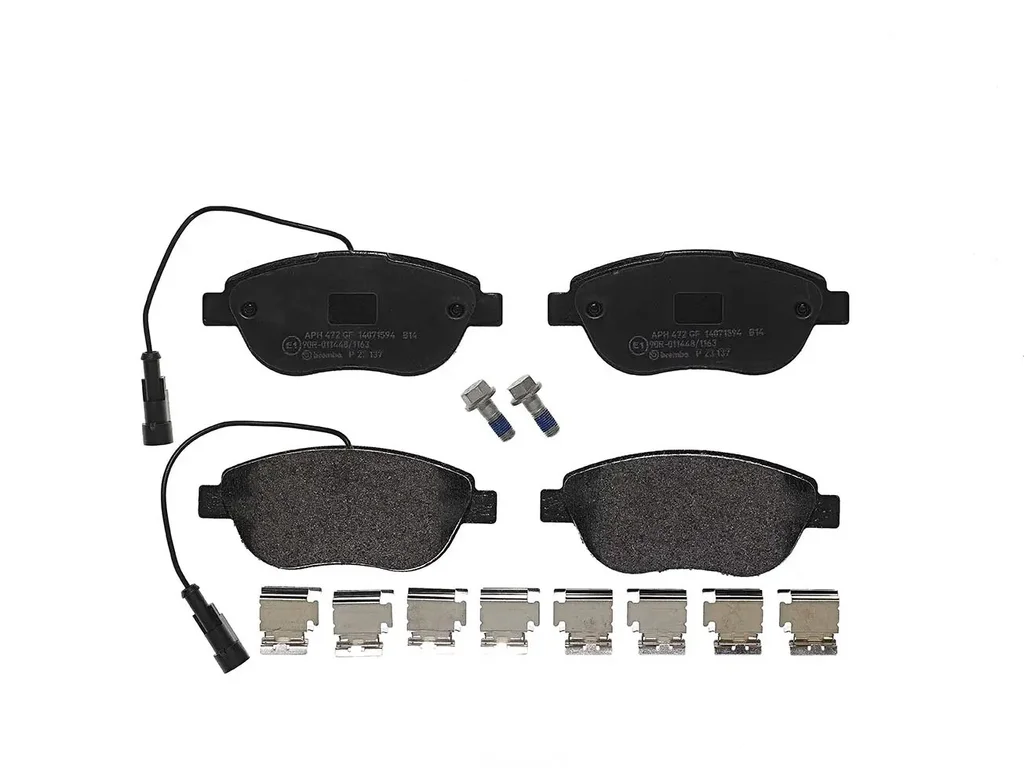

A complete front axle set for the Fiat Doblò Maxi. The pads measure 137 x 57 mm and are 19 mm thick, made to fit the Bosch caliper, and the friction material is ECE R90 approved and matched to the original for bite and wear. The box includes anti-squeal shims, fitting accessories and caliper bolts, so worn hardware does not go back on.
Fitting it
Measure the discs while the wheels are off; if they are near the minimum thickness, replace them with the pads. The wear sensor is already fitted to the pad, so there is no separate sensor to order. Clean and grease the caliper guides, push the piston back gently and bed the pads in with a few moderate stops.
