Brembo Brake disc 09.4939.21
284 mm vented front disc for the Fiat Doblò Maxi
- Art. no.
- 09.4939.21
- EAN
- 8020584014103
- 284mm
- 22mm
- Vented
SKU BRE-09493921 · EAN 8020584014103
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 147 · Next day
- Oslo Alnabru0
- Bergen Kokstad22
- Trondheim Tiller37
- Stockholm Västberga0
- Gothenburg Hisings Backa30
- Rotterdam Waalhaven0

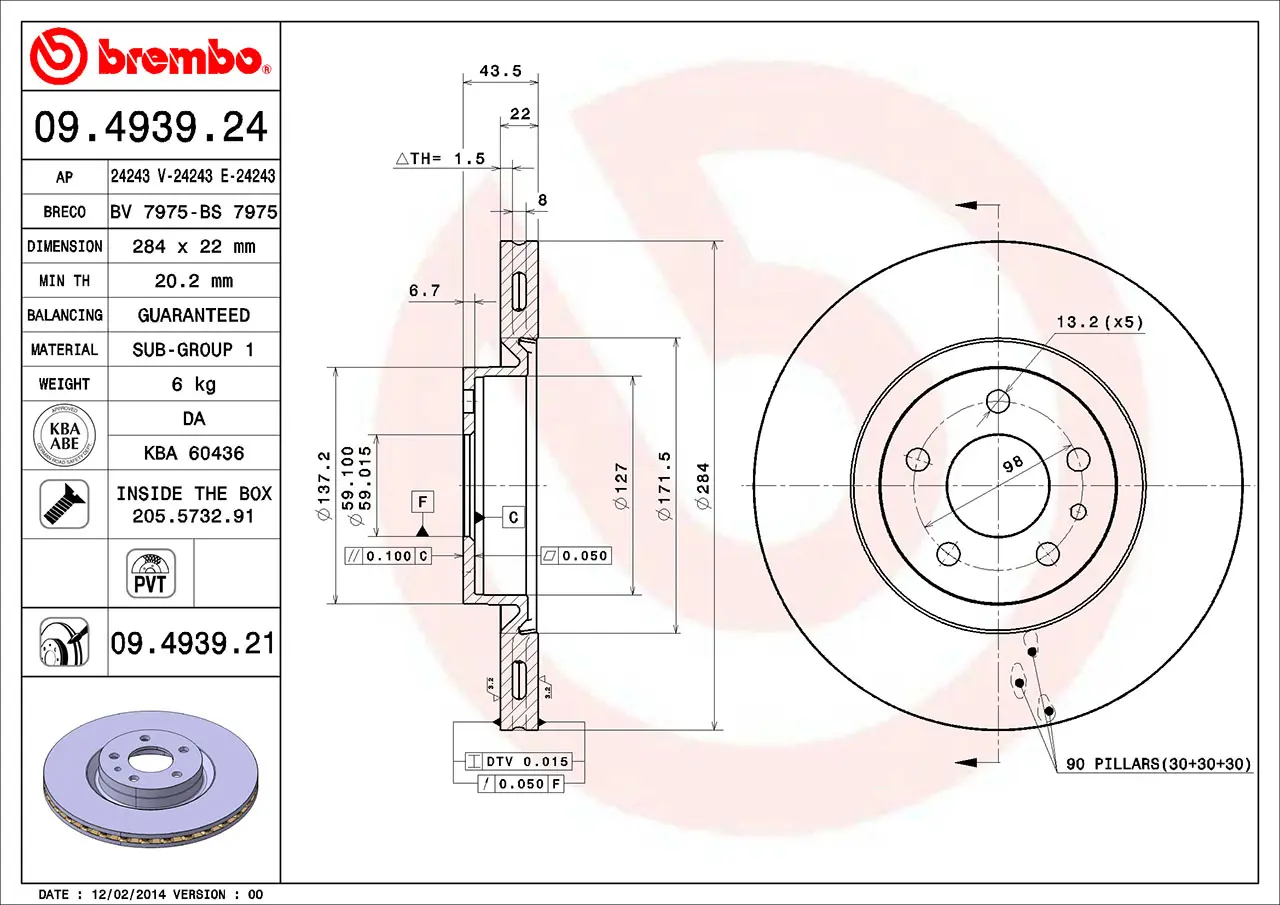

Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 284mm
- Thickness
- 22mm
- Minimum thickness
- 20.2mm
- Height
- 44mm
- Centering diameter
- 59mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Fiat | 46445006 |
| Fiat | 51996236 |
| Fiat | 52015291 |
| Fiat | 52063171 |
| Fiat | 60551775 |
| Fiat | 60569386 |
| Fiat | 60578093 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 24012201451 |
| Bosch | 0986478521 |
| febi bilstein | 14075 |
Why this one
01
284 x 22 mm
Vented disc, 5 holes, 59 mm centre bore, minimum thickness 20.2 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
PVT cooling vanes
Pillar-shaped vanes resist heat cracks better than straight vanes.
04
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
OE-equivalent vented disc for the front axle of the Fiat Doblò Maxi. New it measures 284 x 22 mm and it must be replaced at 20.2 mm. Pillar-type (PVT) cooling vanes resist heat cracking better than straight vanes. The finish is UV-painted, which keeps the hub face and vanes free of rust.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new front pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. Brembo lists a tightening torque of 98 Nm. A brake fluid change is often due at the same visit.
