Brembo Brake pad set P 24 152
Front pad set for the Ford Transit Custom 2.0 EcoBlue
- Art. no.
- P 24 152
- EAN
- 8020584103043
- 172mm
- 17mm
- Electric sensor included
SKU BRE-P24152 · EAN 8020584103043
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 101 · Next day
- Oslo Alnabru0
- Bergen Kokstad0
- Trondheim Tiller34
- Stockholm Västberga10
- Gothenburg Hisings Backa0
- Rotterdam Waalhaven18

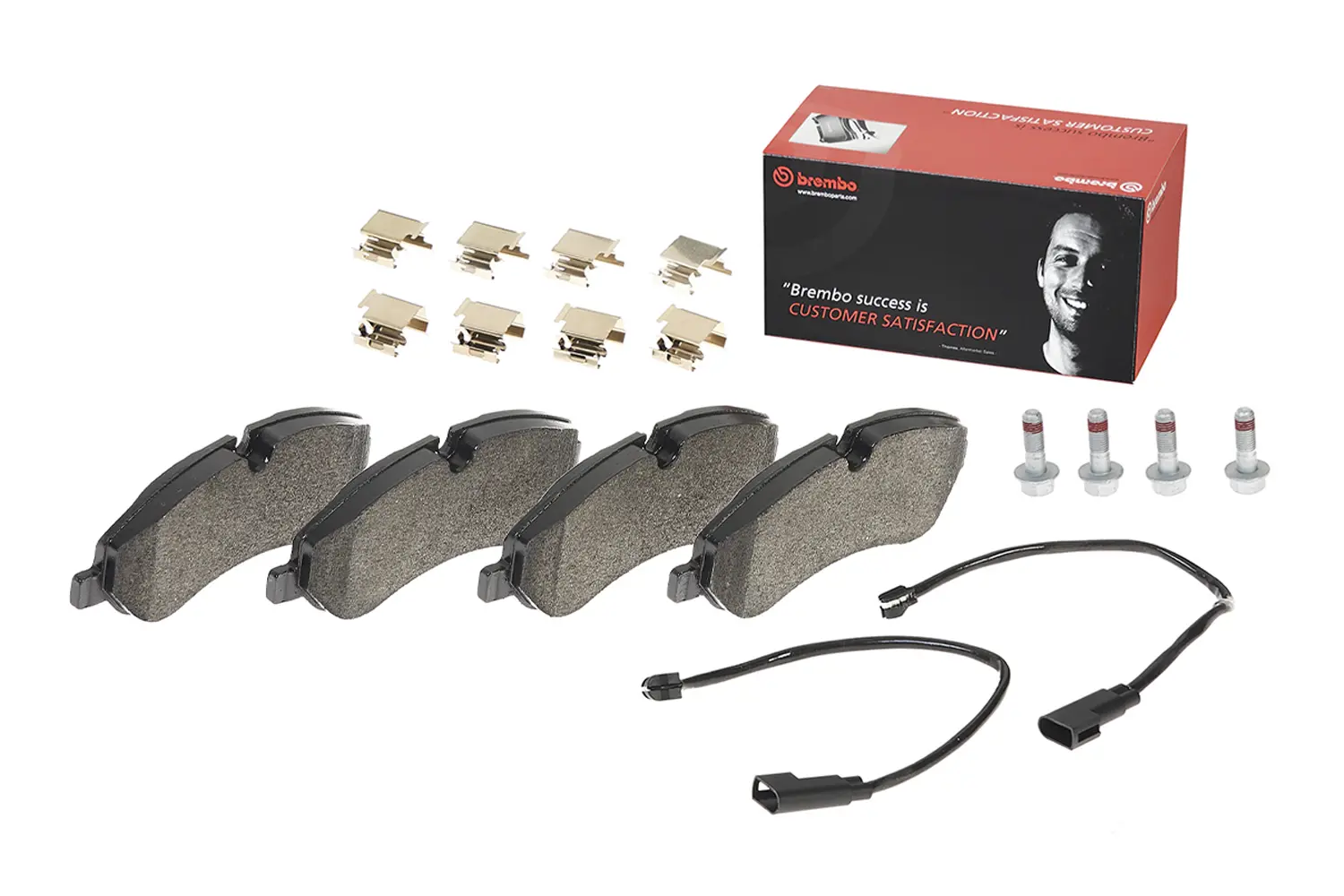

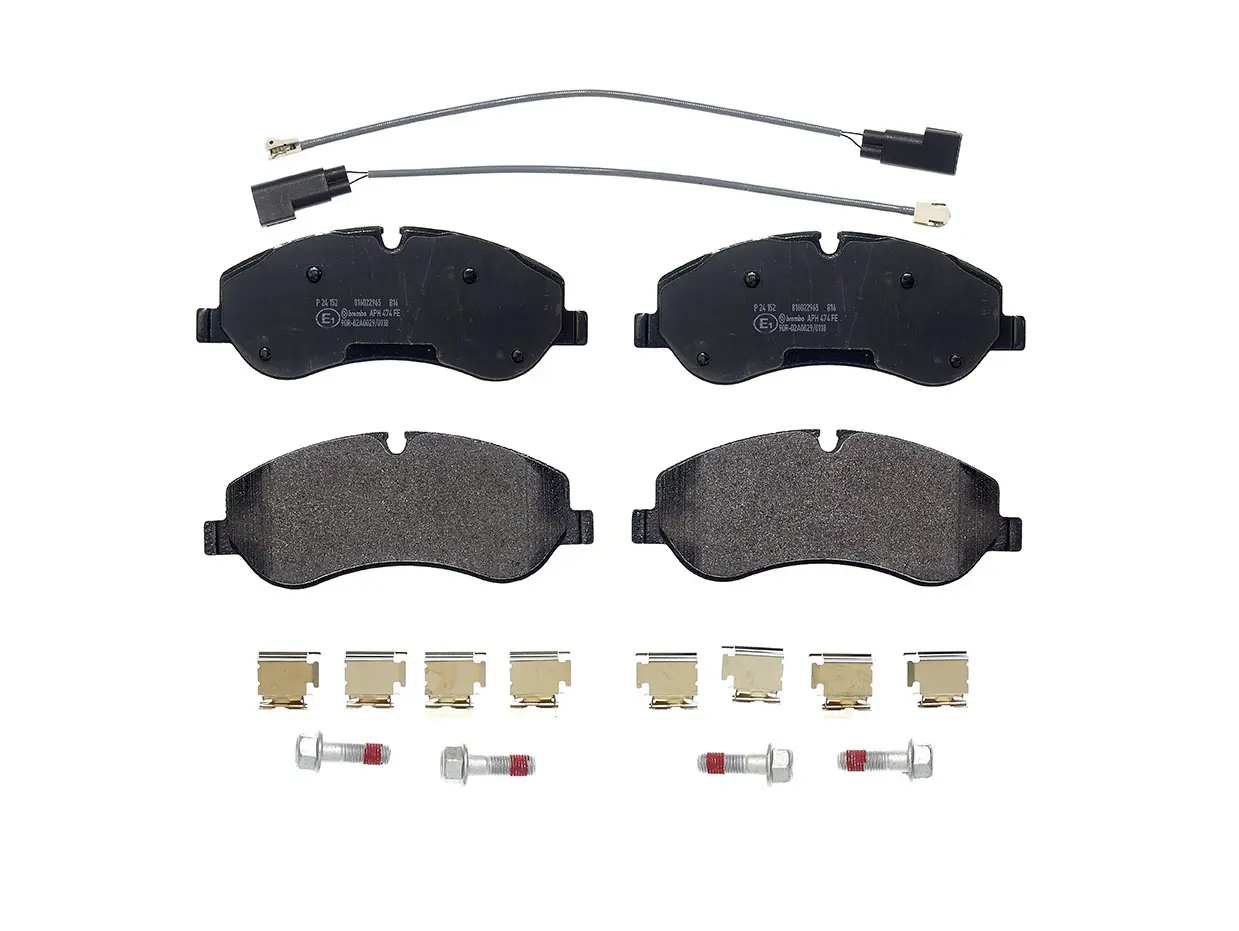

Brembo Prime front pad set for the Ford Transit Custom 2.0 EcoBlue, 172 x 69 x 17 mm for the TRW caliper. It is supplied with an electric wear sensor fitted, and the box holds anti-squeal shims, fitting accessories and caliper bolts.
Fits
Vehicles this part is listed for, with position and conditions.
1 vehicle
- Ford Transit Custom V3622.0 BKFA 131 hpBKFA96 kW962019–2023Front axleTRW caliper. Brembo also lists P 24 171 for the Bosch caliper.

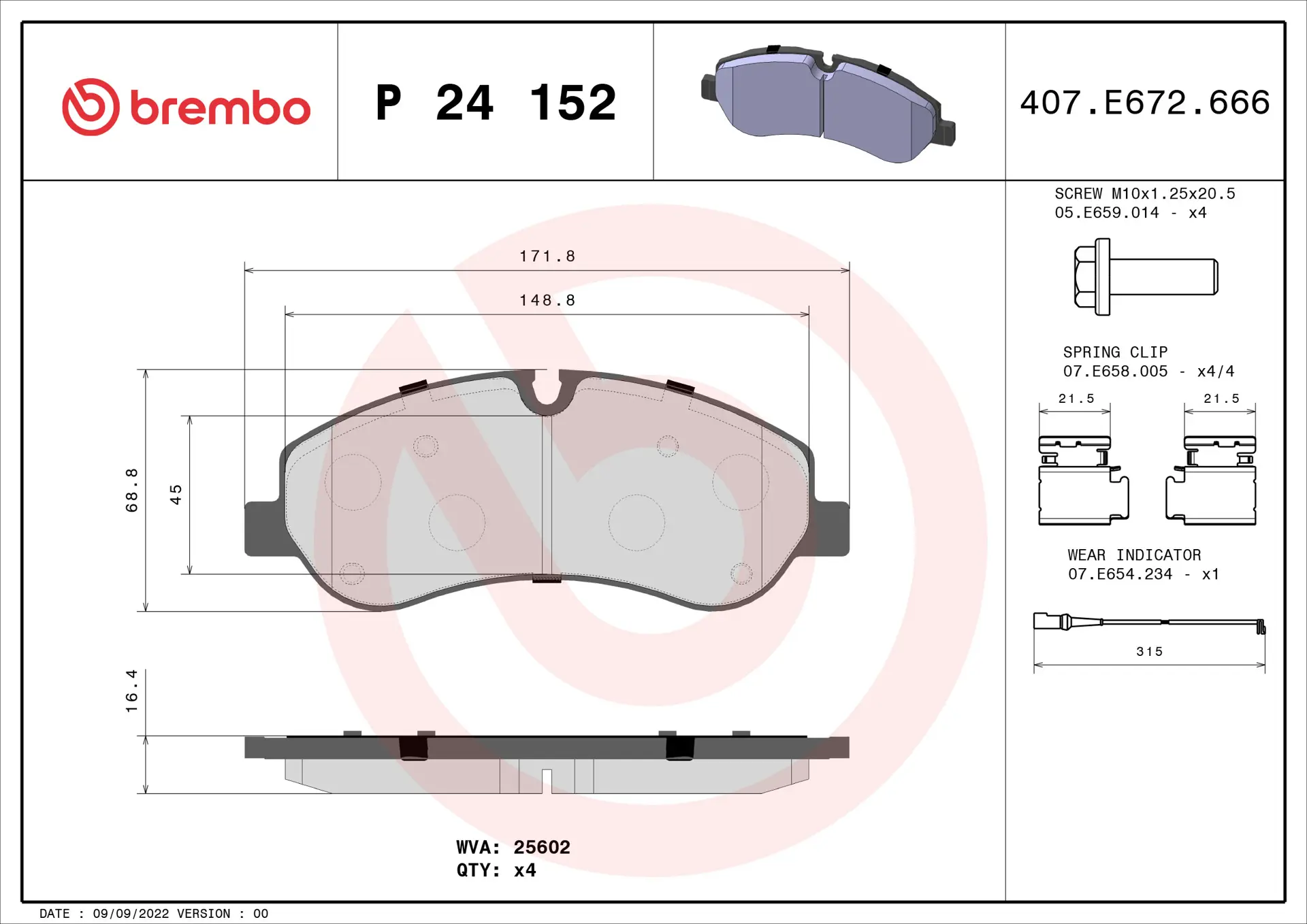

Specifications
Brake pads
- Width
- 172mm
- Height
- 69mm
- Thickness
- 17mm
- Wear indicator
- Electric sensor included
- WVA number
- 25602
- FMSI number
- D1787 9014
- Fitting kit included
- ✓ Yes
- Chamfered / slotted
- — No
- Anti-squeal shims
- ✓ Yes
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Ford | 1763915 |
| Ford | 1842632 |
| Ford | 1916326 |
| Ford | 2162266 |
| Ford | 2221820 |
| Ford | 2361234 |
| Ford | 2600764 |
| Ford | BK212K021AA |
| Ford | BK212K021AB |
| Ford | BK212K021AC |
| Ford | JK212K021GA |
| Ford | KTJK212K021GA |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 13046026112 |
| Bosch | 0986494844 |
| febi bilstein | 16955 |
| Ferodo | FVR4909 |
| Hella Pagid | 355020691 |
| Jurid | 573438J |
| Meyle | 0252560217 |
| Mintex | MDB3369 |
| ATE | 602611 |
| Bosch | 0986BB5151 |
Why this one
01
172x69x17 mm
Fits the TRW caliper, WVA 25602.
02
Wear indicator
With an electric wear sensor fitted.
03
Hardware included
Anti-squeal shims, fitting accessories and caliper bolts in the box.
04
ECE R90 approved
Prime friction material matched to the original pad for bite and wear.
On the job
The job it does
A complete front axle set for the Ford Transit Custom 2.0 EcoBlue. The pads measure 172 x 69 mm and are 17 mm thick, made to fit the TRW caliper, and the friction material is ECE R90 approved and matched to the original for bite and wear. The box includes anti-squeal shims, fitting accessories and caliper bolts, so worn hardware does not go back on.
Fitting it
Measure the discs while the wheels are off; if they are near the minimum thickness, replace them with the pads. The wear sensor is already fitted to the pad, so there is no separate sensor to order. Clean and grease the caliper guides, push the piston back gently and bed the pads in with a few moderate stops.
