Brembo Brake disc 08.D505.20
288 mm solid rear disc for the Ford Transit Custom 2.0 EcoBlue
- Art. no.
- 08.D505.20
- EAN
- 8020584310533
- 288mm
- 16mm
- Solid
SKU BRE-08D50520 · EAN 8020584310533
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 71 · Next day
- Oslo Alnabru34
- Bergen Kokstad0
- Trondheim Tiller0
- Stockholm Västberga28
- Gothenburg Hisings Backa17
- Rotterdam Waalhaven40

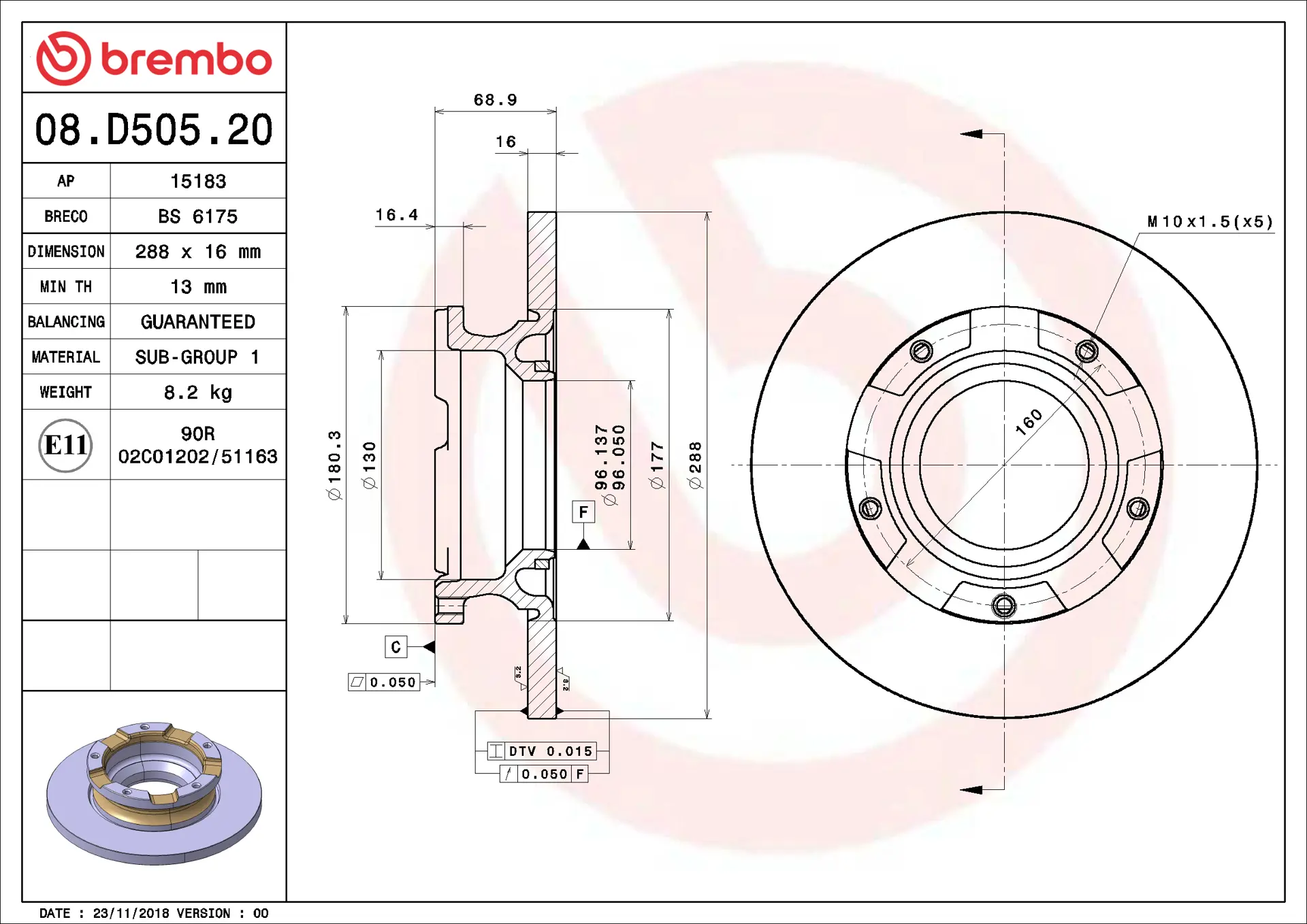

Specifications
Brake disc
- Disc type
- Solid
- Diameter
- 288mm
- Thickness
- 16mm
- Minimum thickness
- 13mm
- Height
- 69mm
- Centering diameter
- 96mm
- Number of holes
- 5
- Coated (anti-corrosion)
- — No
- High-carbon cast iron
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Ford | 1867715 |
| Ford | 2013002 |
| Ford | 2021562 |
| Ford | 2409102 |
| Ford | 2698855 |
| Ford | BK212A097CA |
| Ford | BK212A097EA |
| Ford | BK212A097FA |
| Ford | BK212A097FB |
| Ford | BK212A097GB |
| Ford | BK212A097HA |
Cross-references
Equivalent parts from other brands.
Why this one
01
288 x 16 mm
Solid disc, 5 holes, 96 mm centre bore, minimum thickness 13 mm.
02
OE dimensions
Same size and fixing as the original disc, ECE R90 approved.
03
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
OE-equivalent solid disc for the rear axle of the Ford Transit Custom 2.0 EcoBlue. New it measures 288 x 16 mm and it must be replaced at 13 mm. The geometry matches the original disc, so no changes are needed at the hub or caliper.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new rear pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. A brake fluid change is often due at the same visit.
