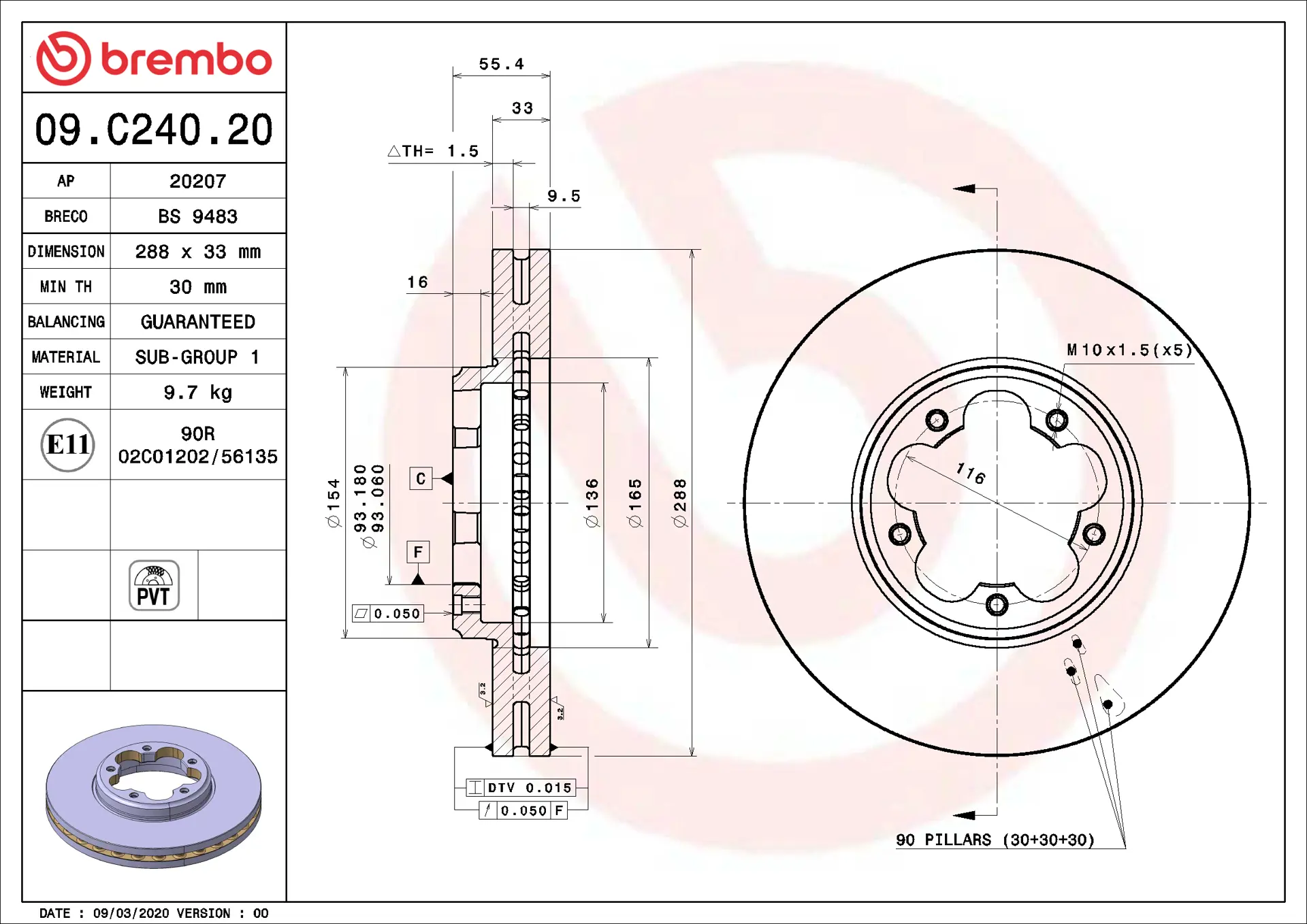

Brembo Brake disc 09.C240.20
288 mm vented front disc for the Ford Transit Custom 2.0 EcoBlue
- Art. no.
- 09.C240.20
- EAN
- 8020584315286
- 288mm
- 33mm
- Vented
SKU BRE-09C24020 · EAN 8020584315286
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 144 · Next day
- Oslo Alnabru34
- Bergen Kokstad11
- Trondheim Tiller28
- Stockholm Västberga18
- Gothenburg Hisings Backa17
- Rotterdam Waalhaven21
Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 288mm
- Thickness
- 33mm
- Minimum thickness
- 30mm
- Height
- 55mm
- Centering diameter
- 93mm
- Number of holes
- 5
- Coated (anti-corrosion)
- — No
- High-carbon cast iron
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Ford | 2168838 |
| Ford | 2221678 |
| Ford | BK211125GA |
| Ford | BK211125HA |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| febi bilstein | 174457 |
| Ferodo | DDF2469 |
| Mintex | MDC2959C |
| Textar | 92316903 |
| Zimmermann | 250570320 |
| Textar | 92320303 |
Why this one
01
288 x 33 mm
Vented disc, 5 holes, 93 mm centre bore, minimum thickness 30 mm.
02
OE dimensions
Same size and fixing as the original disc, ECE R90 approved.
03
Sold singly
One disc per box; order two for an axle.
On the job
The job it does
OE-equivalent vented disc for the front axle of the Ford Transit Custom 2.0 EcoBlue. New it measures 288 x 33 mm and it must be replaced at 30 mm. The geometry matches the original disc, so no changes are needed at the hub or caliper.
Fitting it
Discs are always changed in axle pairs, and this one is packed singly, so order two. Fit new front pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. A brake fluid change is often due at the same visit.
