Brembo Brake pad set P 24 160
Rear pad set for the Ford Transit Custom 2.0 EcoBlue
- Art. no.
- P 24 160
- EAN
- 8020584109861
- 137mm
- 19mm
- Prepared for sensor
SKU BRE-P24160 · EAN 8020584109861
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 23 · Next day
- Oslo Alnabru10
- Bergen Kokstad30
- Trondheim Tiller7
- Stockholm Västberga28
- Gothenburg Hisings Backa9
- Rotterdam Waalhaven20

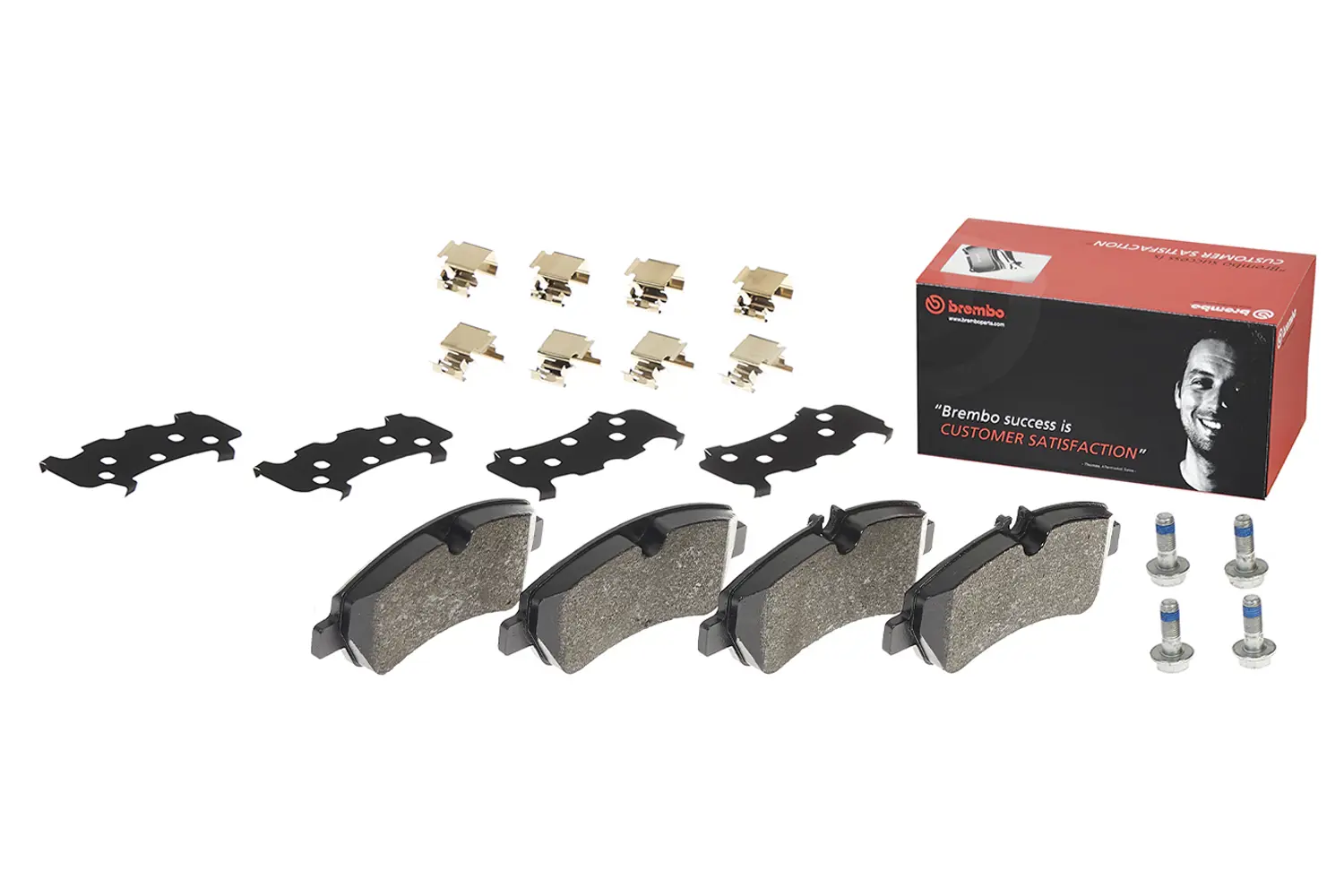

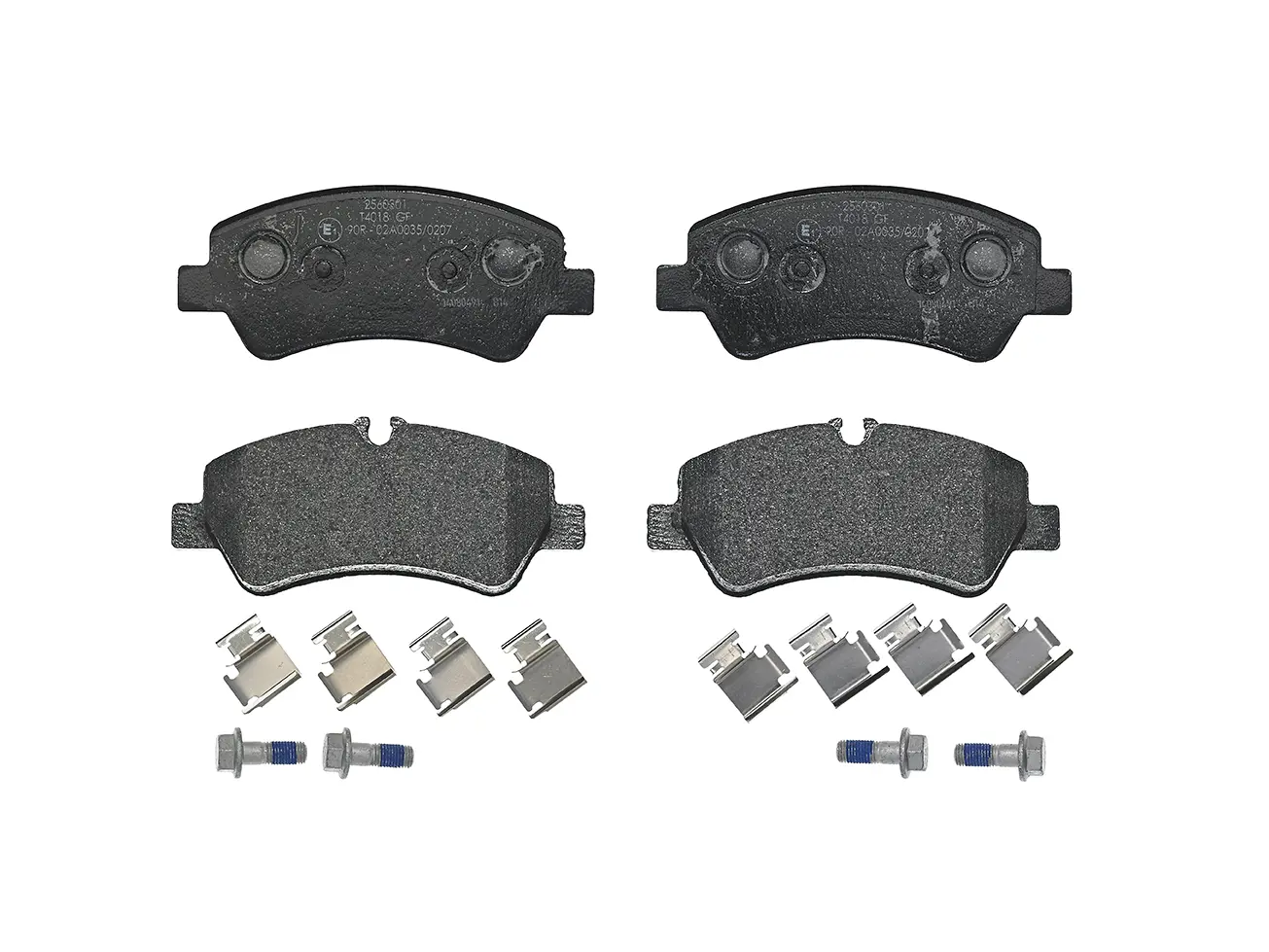

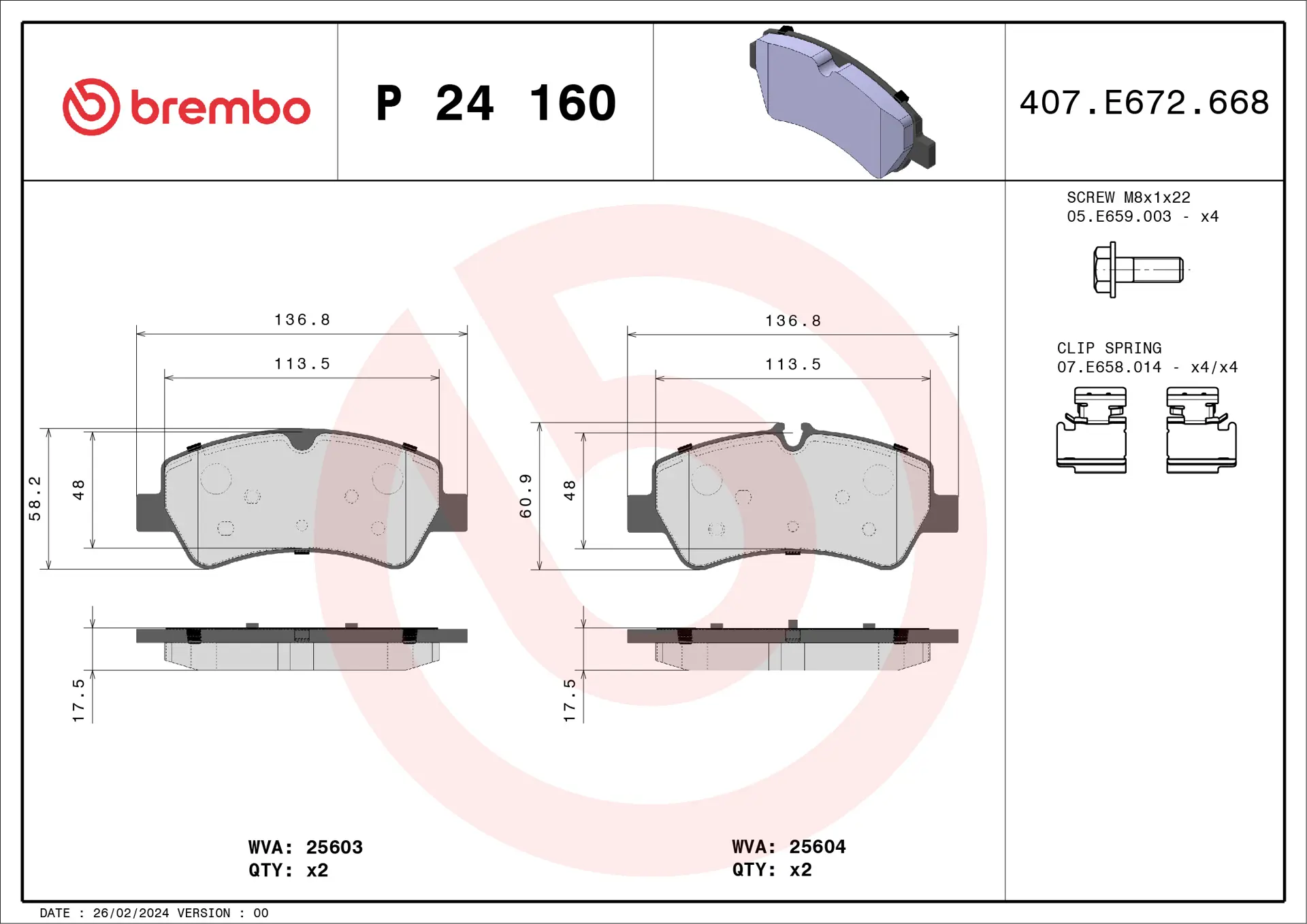

Brembo Prime rear pad set for the Ford Transit Custom 2.0 EcoBlue, 137 x 57 x 19 mm for the TRW caliper. It is supplied prepared for a wear sensor, and the box holds anti-squeal shims, fitting accessories and caliper bolts.
Fits
Vehicles this part is listed for, with position and conditions.
1 vehicle
- Ford Transit Custom V3622.0 BKFA 131 hpBKFA96 kW962019–2023Rear axlePrepared for a wear sensor. Alternative fitment, not the base-equipment part: Brembo lists it next to P 24 187, so compare with the old pads.
Specifications
Brake pads
- Width
- 137mm
- Height
- 57mm
- Thickness
- 19mm
- Wear indicator
- Prepared for sensor
- WVA number
- 25603, 25604
- FMSI number
- D1786 9013
- Fitting kit included
- ✓ Yes
- Chamfered / slotted
- — No
- Anti-squeal shims
- ✓ Yes
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Ford | 1763916 |
| Ford | 1829395 |
| Ford | 1840037 |
| Ford | BK212M008AA |
| Ford | BK212M008AB |
| Ford | BK212M008AC |
| Ford | BK2Z2200D |
| Ford | KTMK312M008AA |
| Ford | MEBK2J2M008BA |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 13046026182 |
| Bosch | 0986494796 |
| febi bilstein | 16963 |
| Ferodo | FVR4398 |
| Hella Pagid | 355020721 |
| Jurid | 573434J |
| Meyle | 0252560418 |
| Mintex | MDB3370 |
| ATE | 602618 |
| Bosch | 0986TB3202 |
Why this one
01
137x57x19 mm
Fits the TRW caliper, WVA 25603.
02
Wear indicator
Prepared for a wear sensor.
03
Hardware included
Anti-squeal shims, fitting accessories and caliper bolts in the box.
04
ECE R90 approved
Prime friction material matched to the original pad for bite and wear.
On the job
The job it does
A complete rear axle set for the Ford Transit Custom 2.0 EcoBlue. The pads measure 137 x 57 mm and are 19 mm thick, made to fit the TRW caliper, and the friction material is ECE R90 approved and matched to the original for bite and wear. The box includes anti-squeal shims, fitting accessories and caliper bolts, so worn hardware does not go back on.
Fitting it
Measure the discs while the wheels are off; if they are near the minimum thickness, replace them with the pads. The backing plates take a wear sensor, which is ordered separately, so check the old one. Clean and grease the caliper guides, push the piston back gently and bed the pads in with a few moderate stops.
