Brembo Brake disc 08.D430.11
302 mm solid rear disc for the Hyundai Tucson 1.6 CRDi
- Art. no.
- 08.D430.11
- EAN
- 8020584310762
- 302mm
- 10mm
- Solid
SKU BRE-08D43011 · EAN 8020584310762
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 102 · Next day
- Oslo Alnabru11
- Bergen Kokstad0
- Trondheim Tiller36
- Stockholm Västberga17
- Gothenburg Hisings Backa21
- Rotterdam Waalhaven0

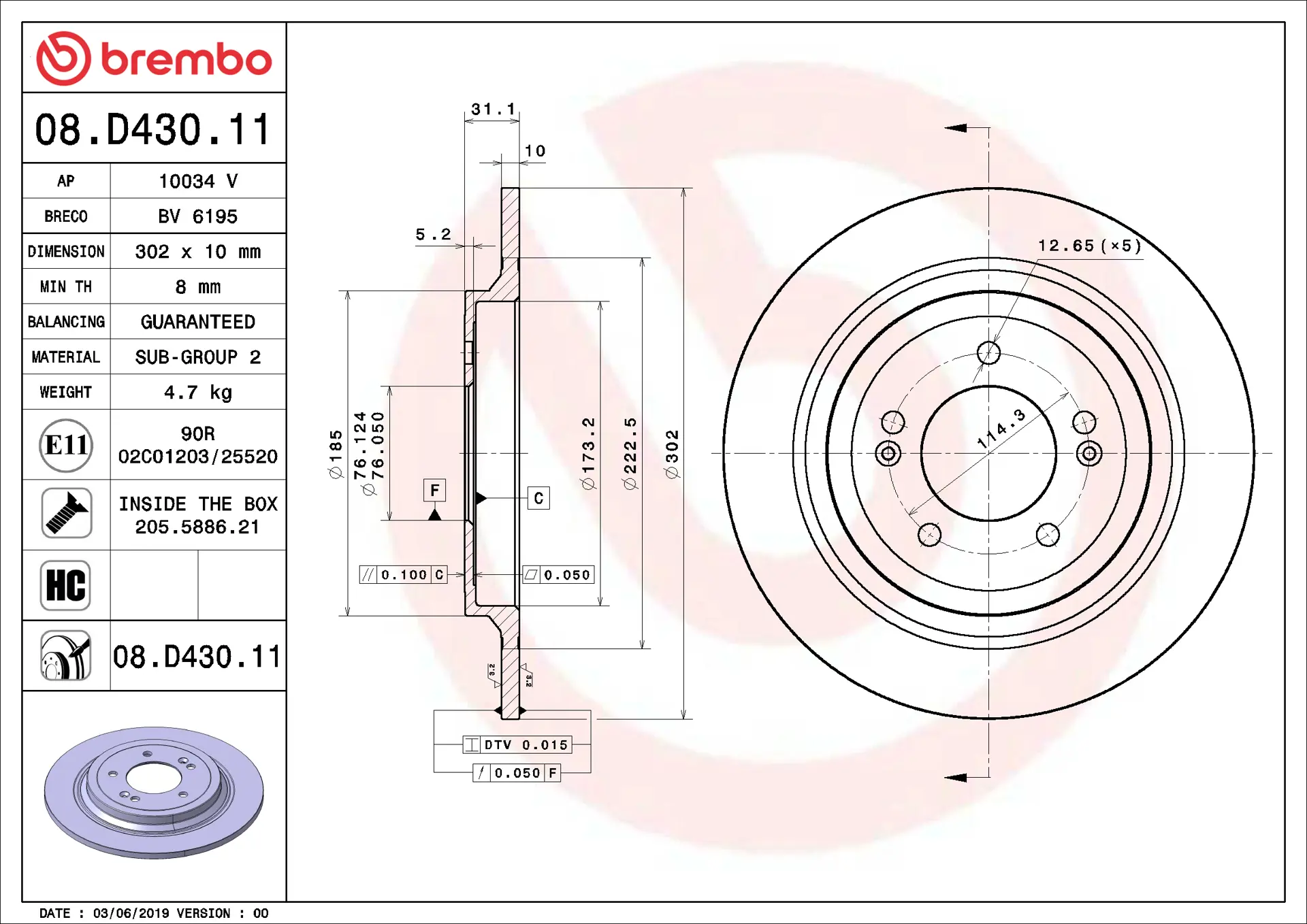

Brembo Prime 302 mm x 10 mm solid disc for the rear axle of the Hyundai Tucson 1.6 CRDi. UV-painted hat and edges, 5 holes and a 76 mm centre bore; replace at 8 mm. Sold as a pair, 2 discs per box.
Fits
Vehicles this part is listed for, with position and conditions.
1 vehicle
- Hyundai Tucson III (TL)1.6 D4FE 136 hpD4FE100 kW1002018–2020Rear axleFor cars with electric parking brake. Cars without electric parking brake take 08.D429.11.
Specifications
Brake disc
- Disc type
- Solid
- Diameter
- 302mm
- Thickness
- 10mm
- Minimum thickness
- 8mm
- Height
- 31mm
- Centering diameter
- 76mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- ✓ Yes
- Bolts included
- ✓ Yes
- Wheel bearing included
- — No
- Pieces per pack
- 2
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Hyundai | 58411D3700 |
| Hyundai | 58411D7700 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 24011004121 |
| Bosch | 0986479E46 |
| febi bilstein | 108637 |
| Ferodo | DDF2772C |
| Meyle | 37155230042PD |
| Mintex | MDC2818C |
| Pagid | 55934 |
| Textar | 92293403 |
| TRW | DF3955 |
| Zimmermann | 285353320 |
Why this one
01
302 x 10 mm
Solid disc, 5 holes, 76 mm centre bore, minimum thickness 8 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
High-carbon iron
Extra carbon damps vibration and helps the disc handle heat.
04
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
OE-equivalent solid disc for the rear axle of the Hyundai Tucson 1.6 CRDi. New it measures 302 x 10 mm and it must be replaced at 8 mm. The high-carbon iron damps vibration and copes better with heat, which helps against judder.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new rear pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. A brake fluid change is often due at the same visit.
