Valeo A/C compressor 690110
New compressor for the Volvo XC60 II and V60 II D4
- Art. no.
- 690110
- EAN
- 3276426901109
- Compressor
SKU VAL-690110 · EAN 3276426901109
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 87 · Next day
- Oslo Alnabru0
- Bergen Kokstad6
- Trondheim Tiller0
- Stockholm Västberga0
- Gothenburg Hisings Backa8
- Rotterdam Waalhaven8
Specifications
Air conditioning
- Part
- Compressor
- Compressor oil
- PAG 46
- Voltage
- 12V
- Pulley diameter
- 123mm
- Pulley grooves
- 6
Physical
- Weight
- 6.16kg
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Volvo | 36010449 |
Why this one
01
New OE-type unit
New compressor from the range Valeo supplies to carmakers.
02
Oil already in
Supplied with 130 ml PAG 46 compressor oil.
03

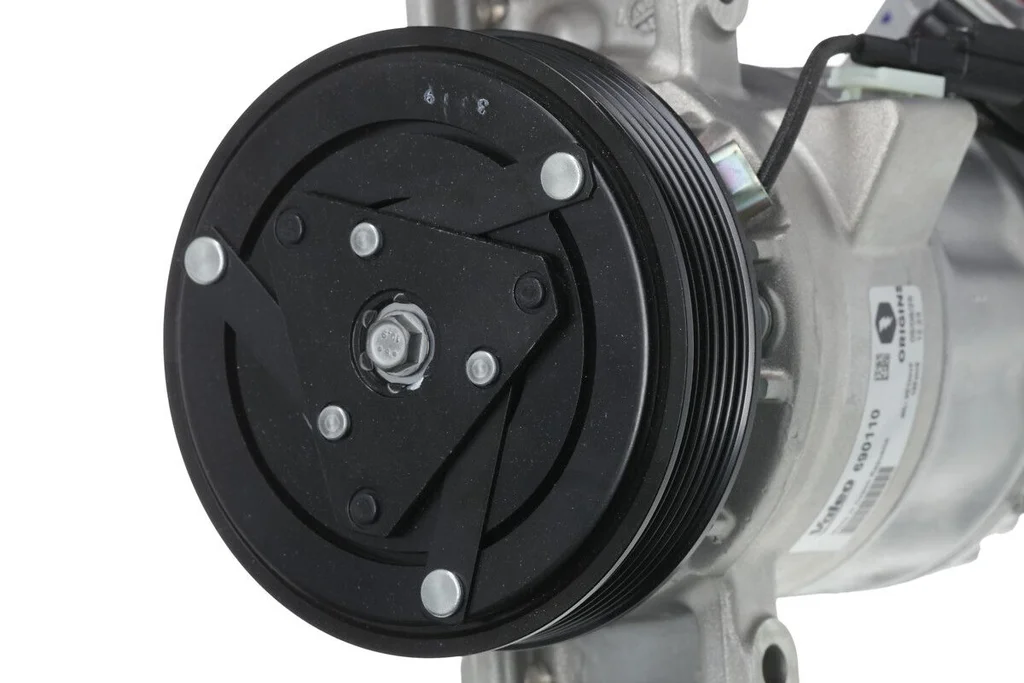

123 mm pulley
Six-groove pulley, 12 V clutch coil.
04
Check the VIN
Fits from a chassis number that differs by factory.
On the job
The job
For XC60 and V60 D4 cars built after the chassis-number change Valeo lists; the break point differs by factory, so read the VIN before ordering. The compressor is new, with a 123 mm six-groove pulley and 130 ml of PAG 46 oil already in it, so there is no exchange core to send back.
Do the whole circuit
Flush the loop and change the receiver-drier; on these cars the drier sits in the condenser, so 822644 goes on the same order when the old compressor has shed debris. Check the refrigerant on the car label before charging. Check the drive belt and tensioner at the same time.
