Brembo Brake disc 08.D864.11
271 mm solid rear disc for the Ford Focus IV 1.0 EcoBoost
- Art. no.
- 08.D864.11
- EAN
- 8020584312988
- 271mm
- 11mm
- Solid
SKU BRE-08D86411 · EAN 8020584312988
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 60 · Next day
- Oslo Alnabru0
- Bergen Kokstad33
- Trondheim Tiller14
- Stockholm Västberga12
- Gothenburg Hisings Backa37
- Rotterdam Waalhaven40

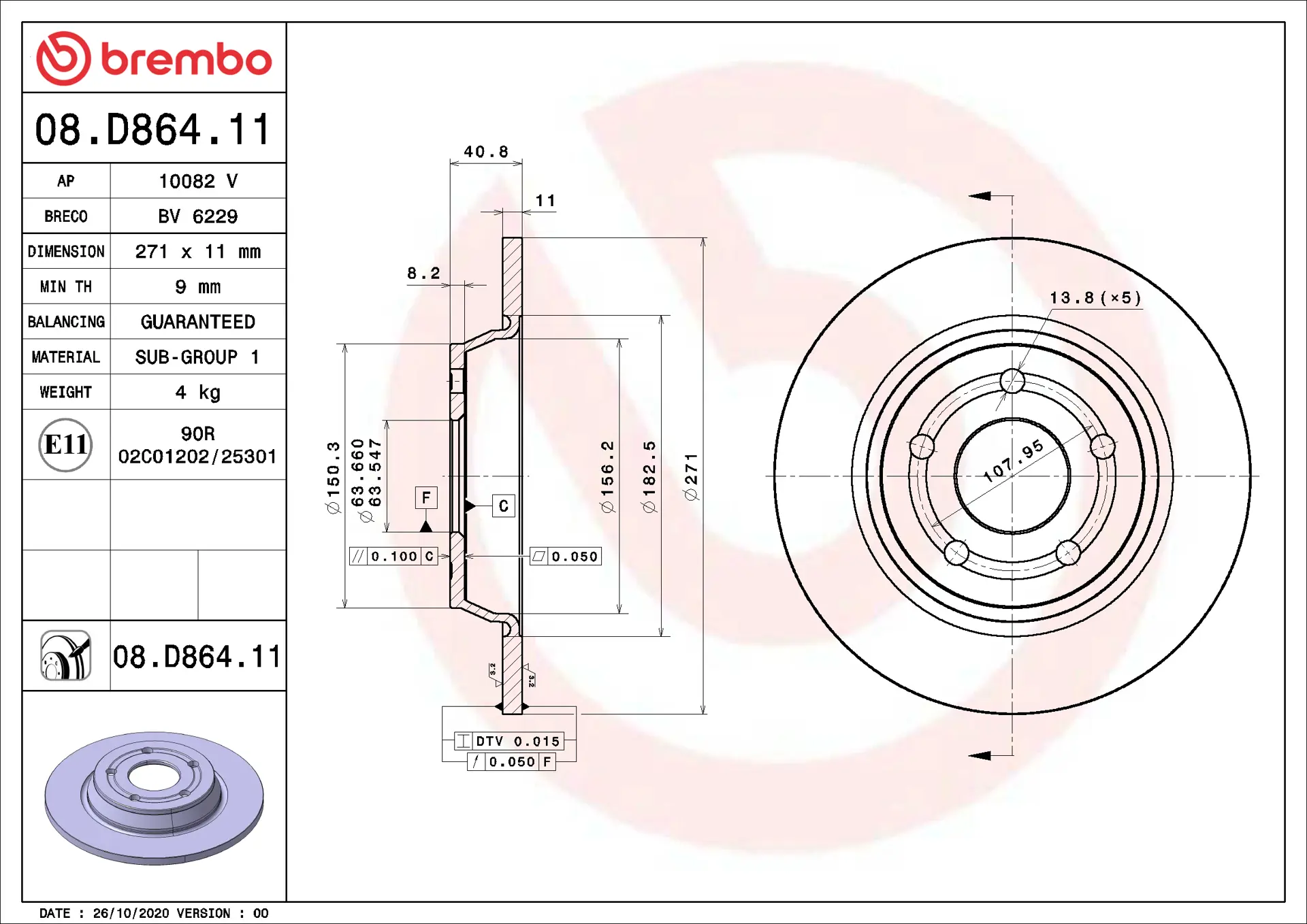

Specifications
Brake disc
- Disc type
- Solid
- Diameter
- 271mm
- Thickness
- 11mm
- Minimum thickness
- 9mm
- Height
- 41mm
- Centering diameter
- 63.6mm
- Number of holes
- 5
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- — No
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Ford | 2196429 |
| Ford | JX612A315AEA |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 24011101921 |
| Bosch | 0986479F78 |
| Ferodo | DDF3022C |
| Meyle | 7155230035PD |
| Mintex | MDC2867C |
| Textar | 92303503 |
| TRW | DF6556 |
| Zimmermann | 250131620 |
Why this one
01
271 x 11 mm
Solid disc, 5 holes, 63.6 mm centre bore, minimum thickness 9 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
Sold as a pair
Two discs per box, enough for one axle.
On the job
The job it does
OE-equivalent solid disc for the rear axle of the Ford Focus IV 1.0 EcoBoost. New it measures 271 x 11 mm and it must be replaced at 9 mm. The geometry matches the original disc, so no changes are needed at the hub or caliper.
Fitting it
Discs are always changed in axle pairs, and this one comes as a pair in the box. Fit new rear pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. A brake fluid change is often due at the same visit.
